UAV Detection And Positioning Equipment

Rongxin is UAV detection and positioning equipment manufacturers and suppliers in China who can wholesale UAV detector. We can provide professional service and better price for you. if you need, please get our online timely service about UAV detector. In addition to the product list below, you can also customize your own unique UAV jammer according to your specific needs.

Send Inquiry

Product Description

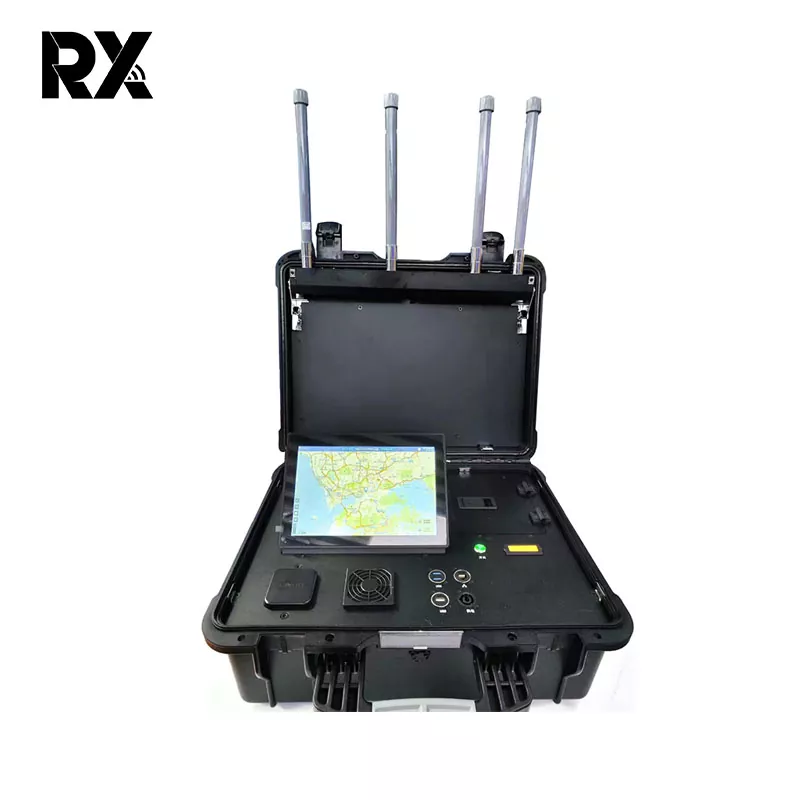

Professional China quality UAV detector Manufacturers and Suppliers. Rongxin is a large-scale UAV detection and positioning equipment manufacturer and supplier in China.This portable drone detection and positioning equipment is a portable drone detection equipment in the form of a suitcase, equipped with a drone comprehensive control system. This device can monitor the serial number, model, position (longitude, latitude, azimuth), speed, altitude, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth) and other multidimensional information of drones within the monitoring range through deep analysis and data mining of drone signals.

Rongxin Uav Detection And Positioning Equipment Specification

performance index

NO.	Index	Parameter	Remark
1	Detection and identification of drone types	Dji, Au-tel, Femi, Dahua, Haoxiang and other common brands of drones and other homemade crossing machines, WiFi machines and other most models on the market
2	Localizable drone types	Dji、Air、Mini、FPV、Avata etc
3	Detection frequency band（Hz）	900M、1.2G、2.4G、5.2G、5.8G	Can be added
4	Detection and positioning distance	1~10km	Depending on the environment
5	Detection height	0m~1000m
6	Number of targets that can be detected simultaneously	≥5 sortie
7	Capable of simultaneously tracking and displaying drone trajectories	≥5
8	Azimuth error	≤1.5°（RMS）
9	positioning accuracy	≤10m
10	Detection success rate	≥95%
11	Deployment time	≤90s	The device has expanded to a working state
12	Equipment withdrawal time	≤30s
13	Identify response time	≤5s

mechanical parameters

NO.	Index	Parameter	Remark
1	screen size	10.1 inches
2	Resolution	1080P（1920*1200）
3	Overall Power Consumption	≤100W
4	External power supply voltage	100~220V AC
5	Inside Battery	About 4 hours	When battery powered
6	operation temperature	-20~65℃
7	Storage temperature	-40~70℃
8	protection grade	IP65	Box closed
9	weight	≤18kg	Without power adapter
10	size	(520mm415mm224mm)±2mm	Box closed

Rongxin Uav Detection And Positioning Equipment Feature

1) All detection models: The system can identify and detect common brands of drones such as DJI, Au-tel, Dahua, Haoxiang, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines;

2) Long detection distance: In open environments, some models can detect distances of over 10km;

3) Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly;

4) Software and hardware integration: Equipped with a drone comprehensive control platform, the single machine works independently without the need to configure other devices;

5) Mobile and portable: Designed in a portable form with a portable suitcase, it is small in size and easy to carry around;

6) Touch interaction design: Adopting a large screen touch design, easy to operate, convenient and fast;

7) Dual power supply design: The device can be powered by a detachable battery or an external power supply, suitable for multiple scenarios;

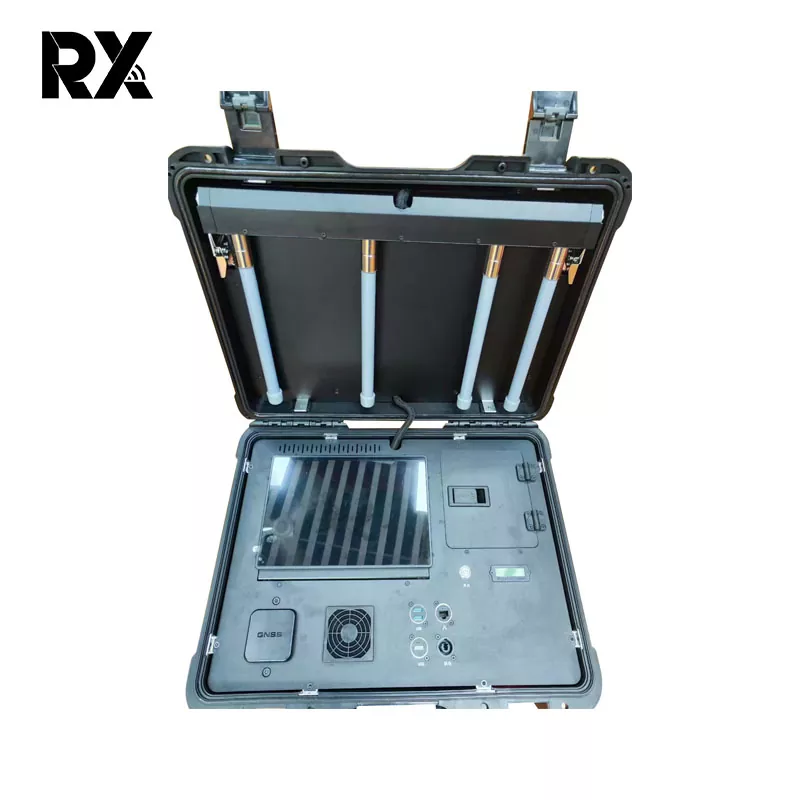

8) Convenient deployment: The device antenna adopts a foldable storage design, which allows for quick deployment and retraction. It can be turned on and off with just one click, and can be used anytime.
