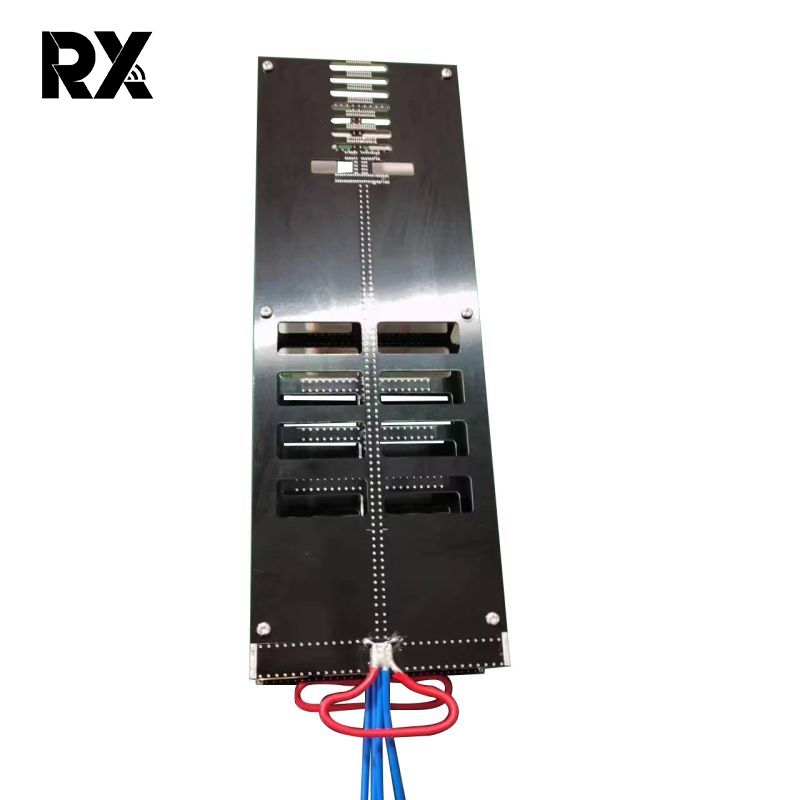

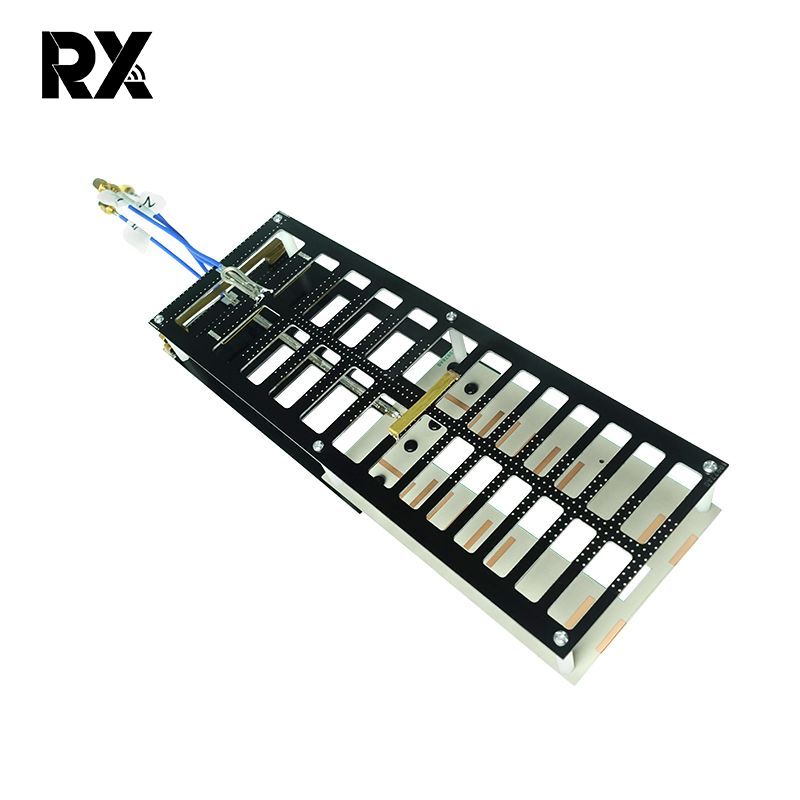

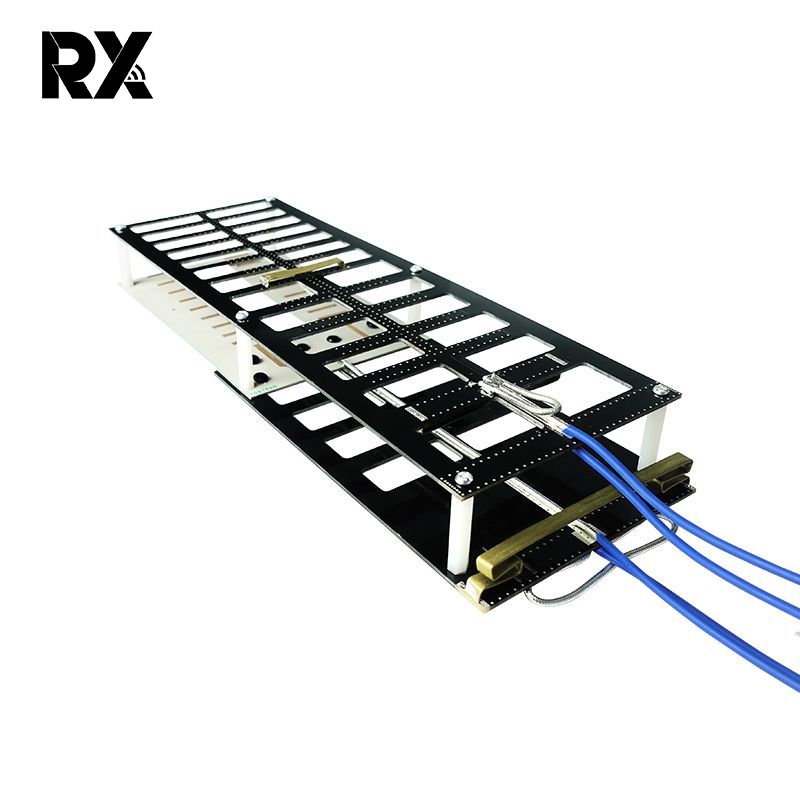

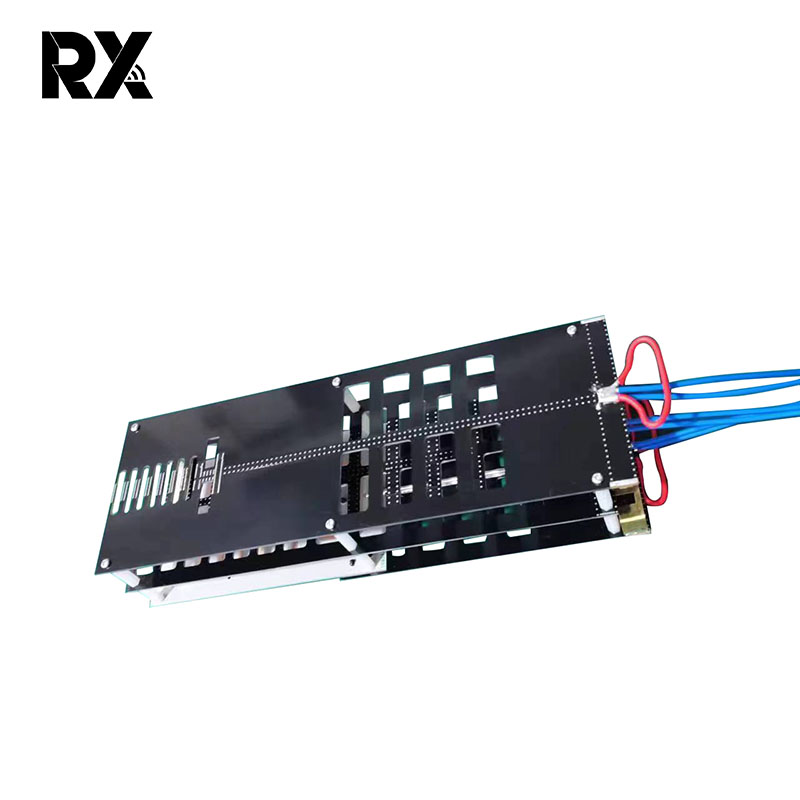

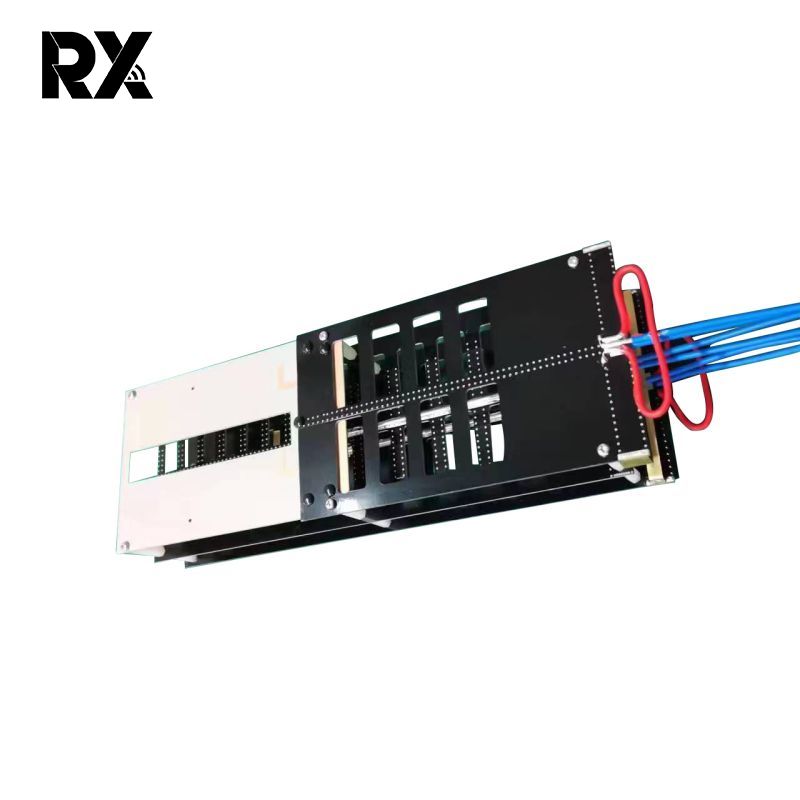

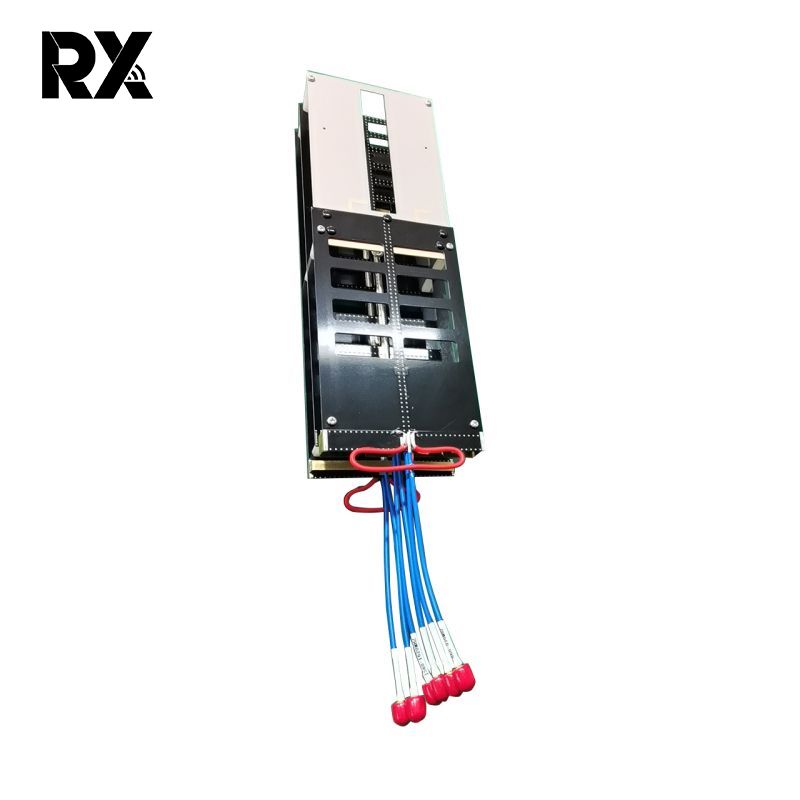

6 Band 5-18dBi Directional Anti drone PCB Antenna

Rongxin is a leading 6 Band 5-18dBi Directional Anti drone PCB Antenna manufacturer, supplier and exporter in China. We adhere to the pursuit of perfect product quality, so our antennas have been satisfactory to many customers. Every customer wants extreme design, high-quality raw materials, high performance and competitive price, and that's what we can offer you. Of course, our perfect after-sales service is also essential. If you are interested in our antenna services, please consult us now, and we will reply to you in a timely manner!

Send Inquiry

Product Description

China manufacturer Rongxin offers high-quality antennas. You can buy high-quality antennas directly with low price. PCB Signal Jammer Antenna are designed to effectively detect and jam the signals of various frequencies used by drones. These antennas operate on multiple frequencies simultaneously, enabling them to counteract the diverse communication methods used by modern drones. By disrupting the drone's communication capabilities, these antennas can force the drone to land or return to its launch point.

Rongxin 6 Band 5-18dBi Directional Anti drone PCB Antenna Specification

█ ElectricalSpecifications
Frequency Range	840-920/1100-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
Gain(dBi)	840-920MHz 5dbi 1100-1280MHz 8dbi 1560-1620MHZ 8dbi 2400-2500MHz 15dbi 5150-5350MHz 17dbi 5700-5900MHz 18dbi
VSWR	≤2
Polarization	840-920MHz 5dbi 1100-1280MHz 8dbi 1560-1620MHZ 8dbi 2400-2500MHz 8dbi 5150-5350MHz 17dbi 5700-5900MHz 18dbi
Horizontal Beam width(0º)	840-920MHz 65±5º 1100-1280MHz 65±5º 1560-1620MHZ 65±5º 2400-2500MHz 48±5º 5150-5350MHz 45±5º 5700-5900MHz 45±5º
Vertical Beam width(0º）	840-920MHz 65±5º 1100-1280MHz 65±5º 1560-1620MHZ 65±5º 2400-2500MHz 45±5º 5150-5350MHz 28±5º 5700-5900MHz 28±5º
Front-to-back ratio(dB)	≥18
Electrical lower inclination(0º)	0º
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Input connector type	086 cable with 6 * SMS-J
Lightning Protection	DC Ground
█MechanicalSpecifications
Dimensionsmm(Height/Width/Depth)	28497.560mm
Antenna weight(kg)	0.35kg
Operational Humidity(％)	10- 95
Operating temperature(ºC)	-30～70º
Installation Method	Handheld
Mounting hardware(mm)	built-in
