Multiband 4 Band High gain PCB Antenna for Anti dr

With years of experience in producing Multiband 4 Band High gain PCB Antenna for Anti dr products, Shenzhen Rongxin Communication Co., Ltd can supply a wide range of signal jamming and amplifier products. High quality signal jamming related products can meet many applications, if you need, please get our online timely service about anti drone products and related accessories.

Send Inquiry

Product Description

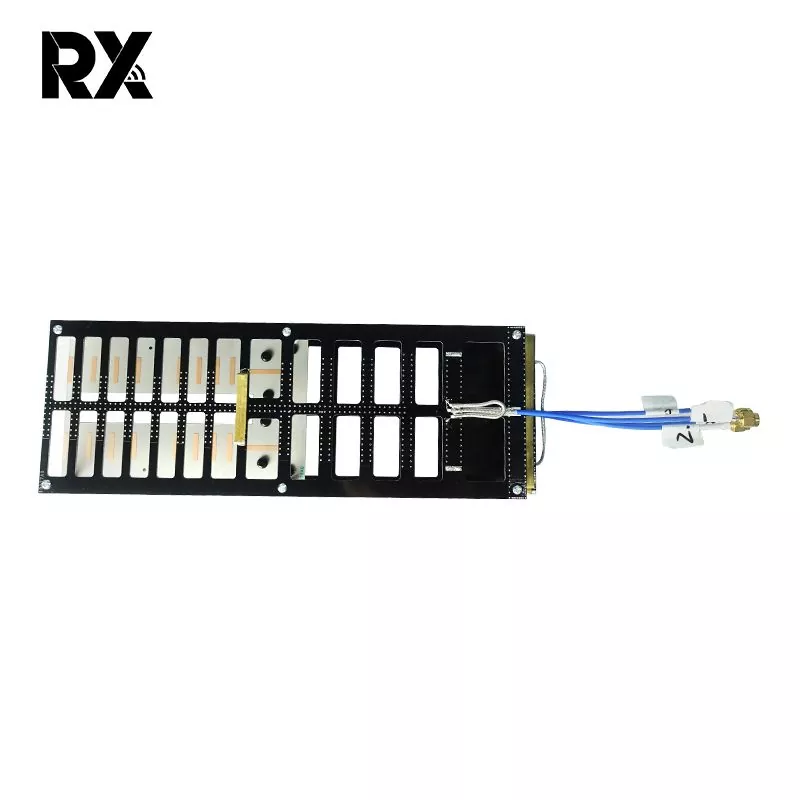

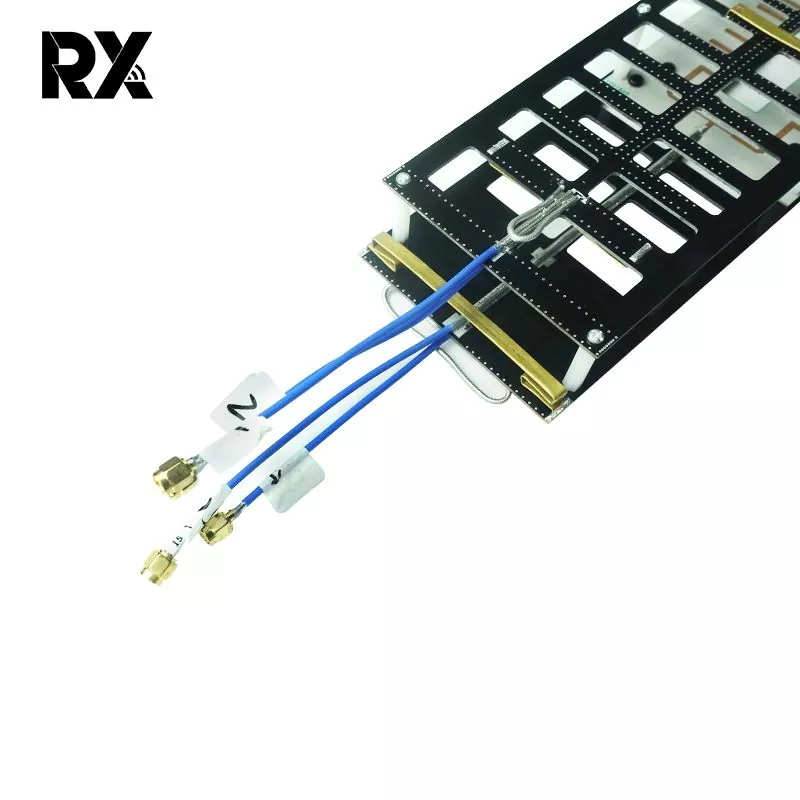

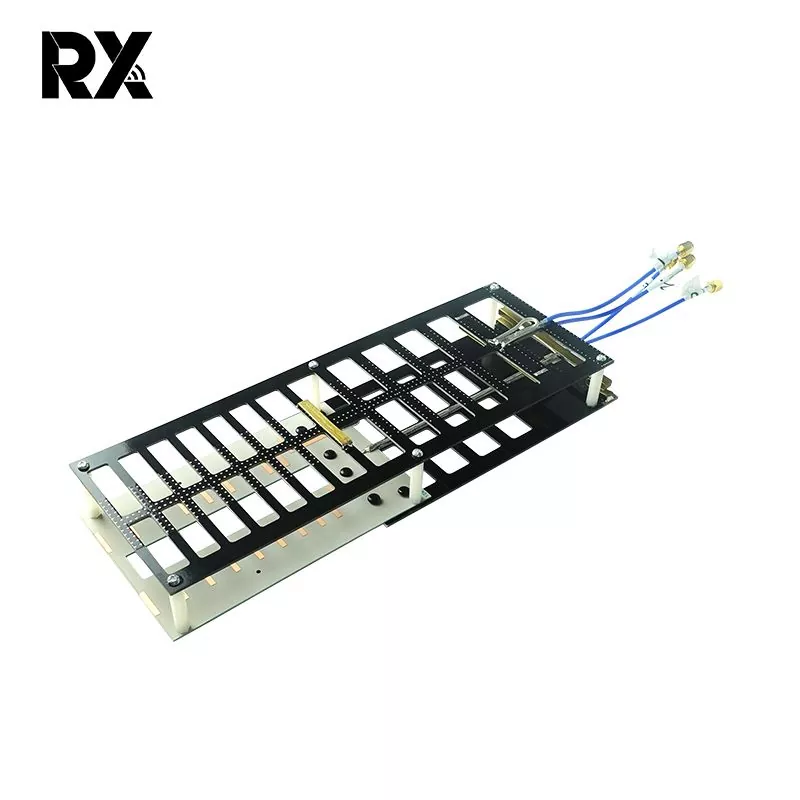

Multiband 4 Band High gain PCB Antenna for Anti drone device

With years of experience in producing anti drone products, Shenzhen Rongxin Communication Co., Ltd can supply a wide range of signal jamming and amplifier products. High quality signal jamming related products can meet many applications, if you need, please get our online timely service about anti drone products and related accessories.

Rongxin Multiband 4 Band High gain PCB Antenna for Anti drone device Introduction

This high quality multiband 4 band high gain PCB antenna for anti drone device is a new design by Rongxin,is widely used in anti drone products such as anti drone guns. This RX multiband 4 band high gain PCB antenna for anti drone device support customizing frequency 4 or 6 bands such as 860-930/1560-1620/2400-2500/5700-5900MHz.

Rongxin Multiband 4 Band High gain PCB Antenna for Anti drone device Specification

Electrical Specifications
FrequencyRange	860-930/1560-1620/2400-2500/5700-5900MHz
Gain(dBi)	860-930MHZ 5dbi 1560-1560MHz 8dbi 2400-2500MHz 15dbi 5700-5900MHz 18dbi
VSWR	≤2
Polarization	860-930MHZ V 1560-1560MHz V 2400-2500MHz V 5700-5900MHz V 5700-5900MHz V
Horizontal Beamwidth(0º)	860-930MHz 65±5º 1560-1560MHz 65±5º 2400-2500MHz 65±3º 5700-5900MHz 45±3º
Vertical Beamwidth(0º）	860-930MHz 65±5º 1560-1560MHz 65±5º 2400-2500MHz 48±3º 5700-5900MHz 28±3º
Front-to-back ratio(dB)	≥18
Electrical lower inclination(0º)	0º
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Inpur connector type	SMS-J
Lightning Protection	DC Ground

Rongxin Multiband 4 Band High gain PCB Antenna for Anti drone device Service&Support

* User Instruction: we can offer online details photo illustration and video;

Local instruction is also available with extra cost

* Online technical support: our professional engineers will assist customers with technical problems

* After sales service: our company will perform the agreed responsibility and duty during the warranty period

* Free training lessons and Daily maintenance

* Fast reply of Customer feedback and questions

* All product enjoy the 1 year warranty and Life time technical support
