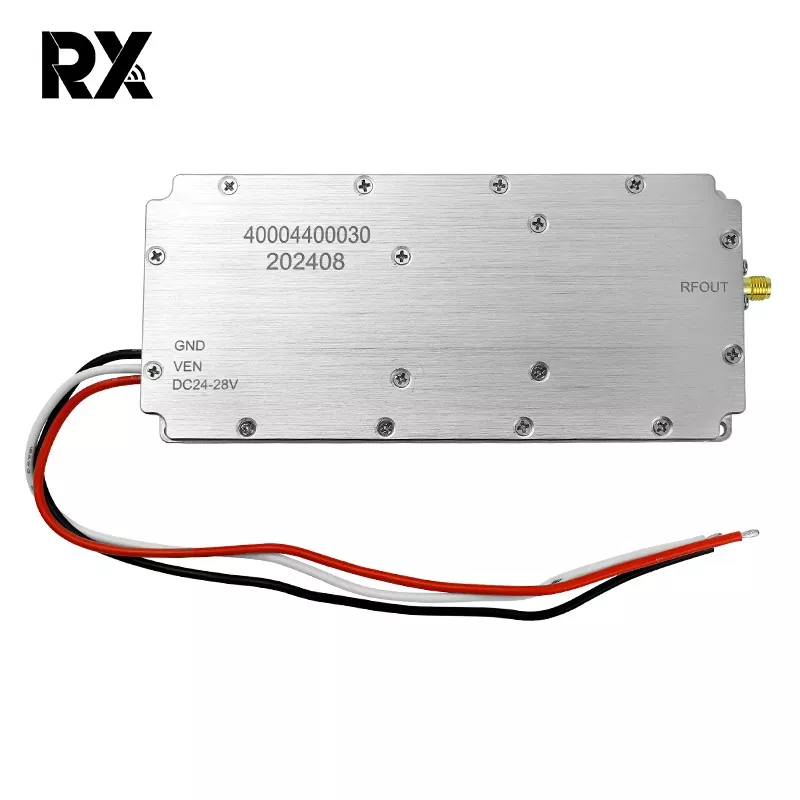

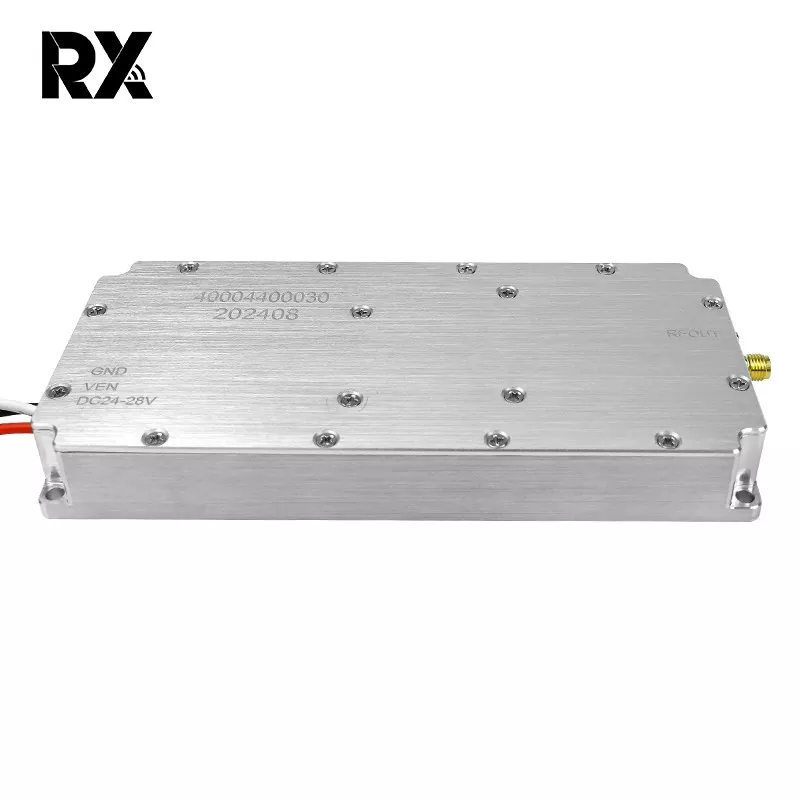

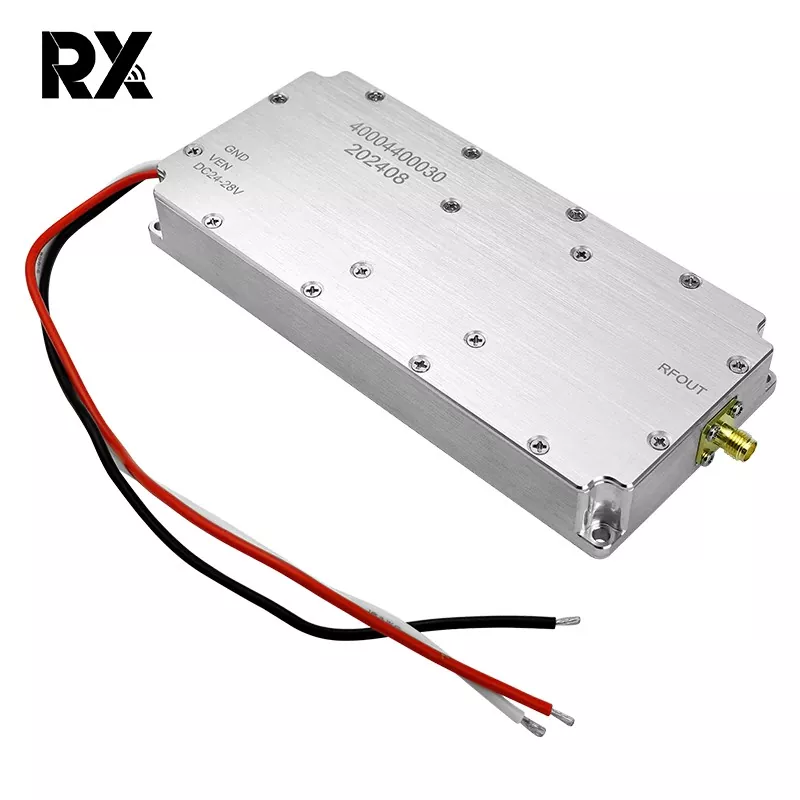

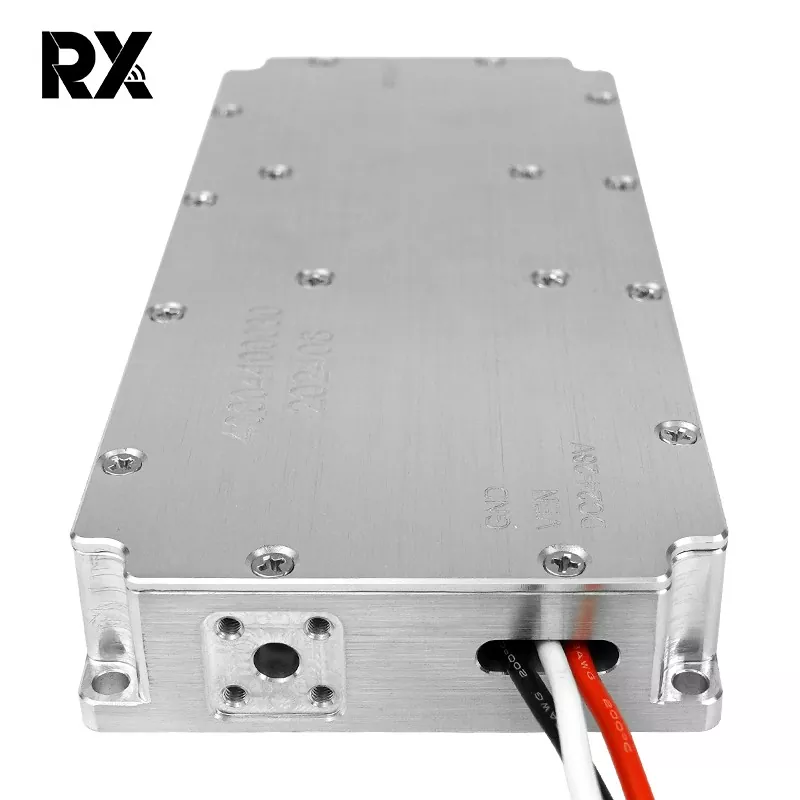

New Module 30w 50w RF Power Amplifier Module

The new module 30W 50W RF power amplifier module is engineered to deliver robust and dependable signal enhancement for a broad spectrum of wireless communication and RF applications. It excels in amplifying input RF signals, thereby boosting signal strength and expanding coverage areas. This module is a powerhouse for your signal amplification needs. As a reputable module manufacturer, Rx is committed to providing top-tier products, ensuring that your purchase from us comes with the best in after-sales service and guaranteed timely delivery.

Send Inquiry

Product Description

The new module 30W 50W RF power amplifier module utilizes cutting-edge RF amplification techniques, ensuring highly efficient energy transfer, lower power usage, and enhanced system performance. Its compact design and small form factor facilitate easy installation and seamless integration into a wide array of systems.

TeXin new module 30w 50w RF power amplifier module specification

No.	Item	Data	Unit	Notes
1	Frequency	customized	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	24-28	V
5	Max Gain	47	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5

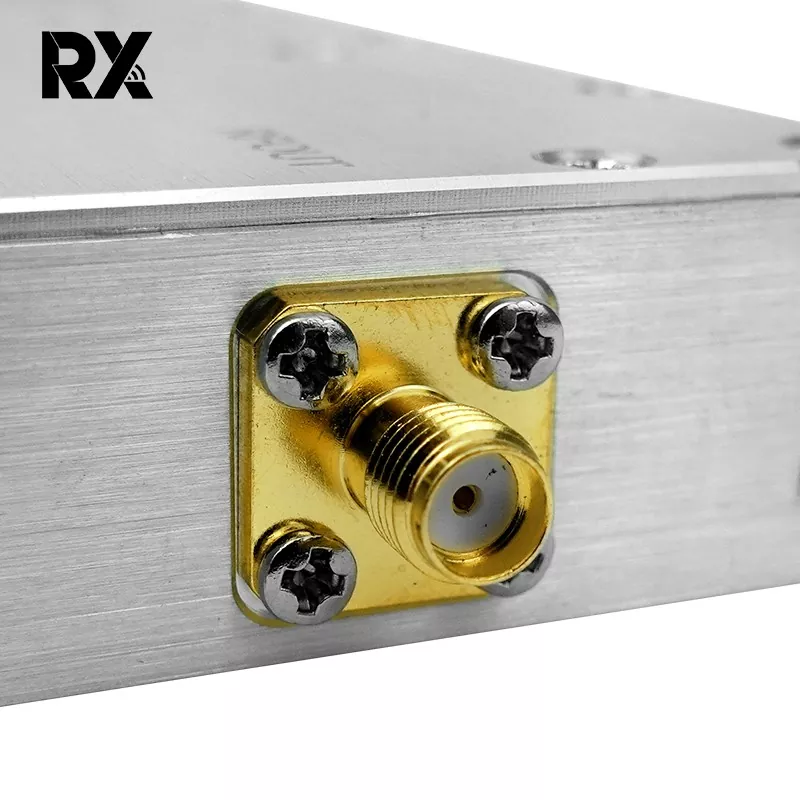

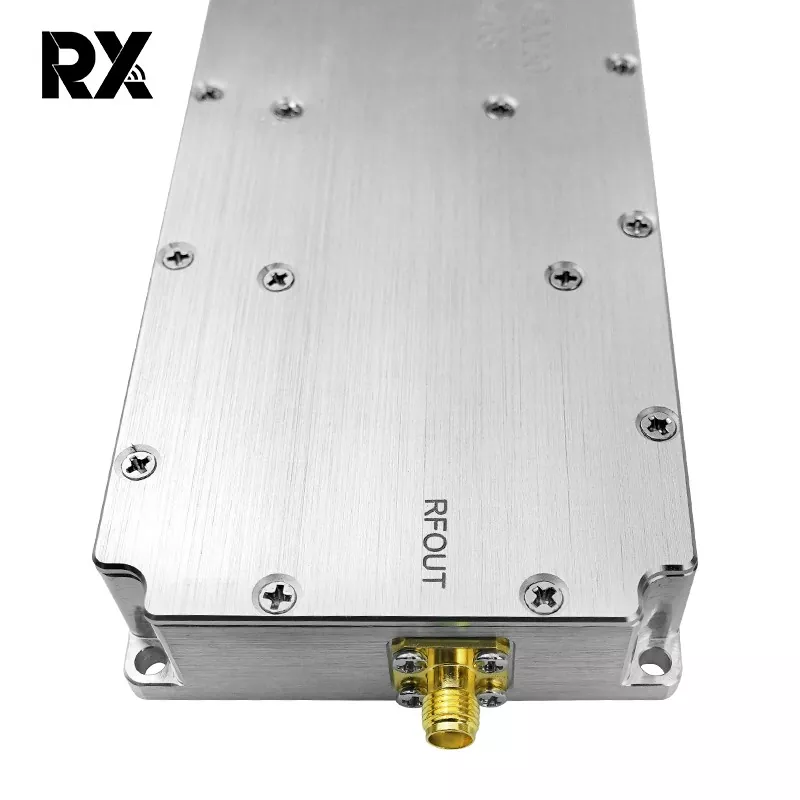

9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	1536419	mm
15	Weight	0.351	Kg
