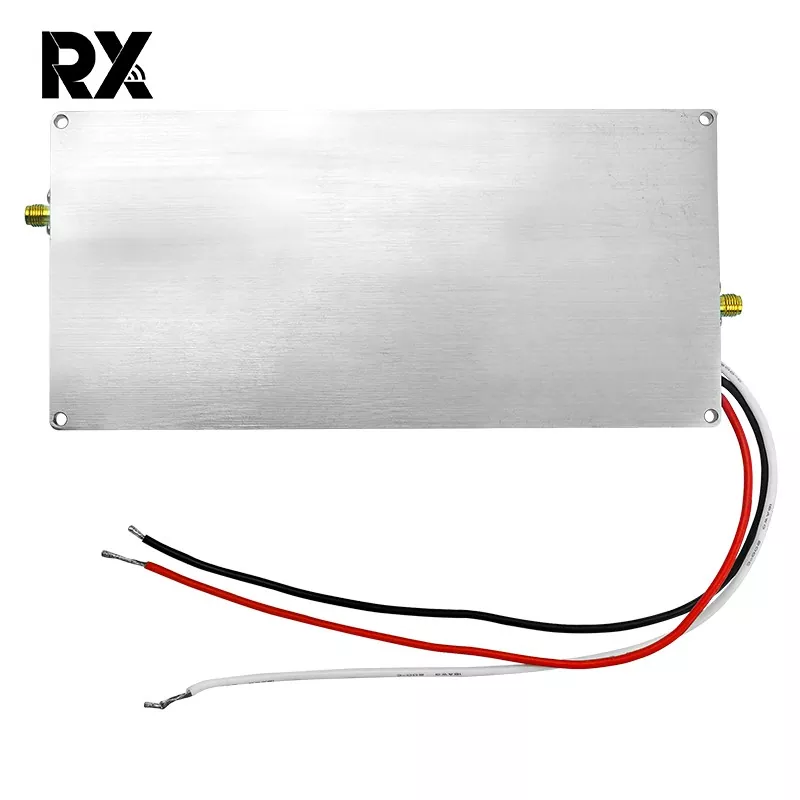

High-power 400-2700MHz 50W Amplifier Modules for RF Applications

This is a High-power 400-2700MHz 50W amplifier modules for RF applications, specially designed to provide stable and powerful 50W power output in a wide frequency range of 400 MHz to 2700 MHz. It can effectively amplify RF signals and meet the high requirements of signal strength and quality in various RF application scenarios. RX as a professional module manufacturer, you can rest assured to buy module from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

This High-power 400-2700MHz 50W amplifier modules for RF applications is suitable for applications that require broadband high-power RF, such as drone jamming, wireless communication base stations, satellite communications, electronic warfare, and RF test equipment. Its high power and wide bandwidth characteristics make it an ideal choice for these applications.

High-power 400-2700MHz 50W amplifier modules for RF applications specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

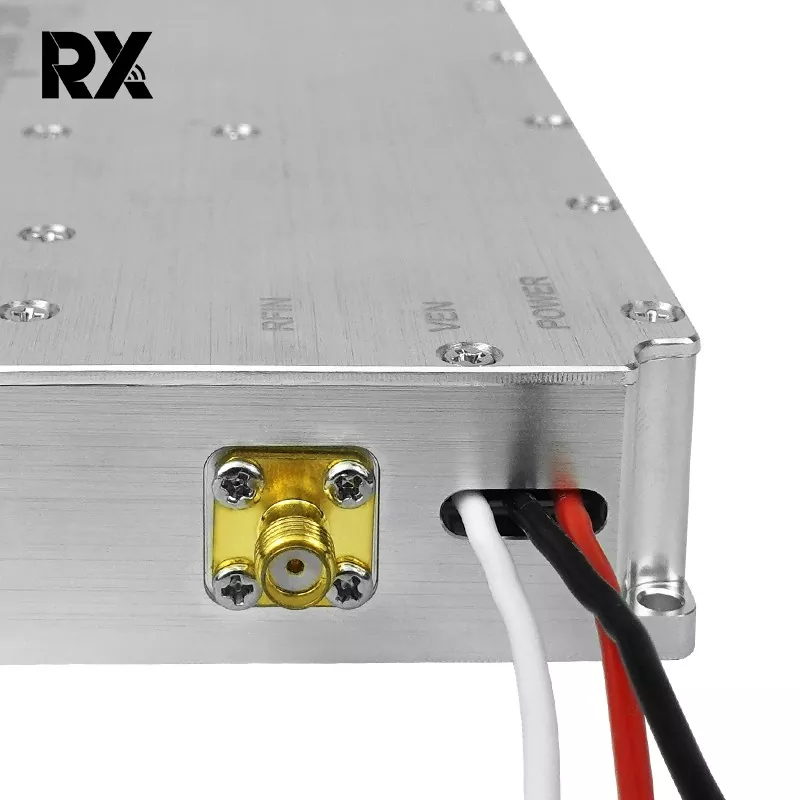

7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1778426	mm
13	Mount hole	170*78	mm
14	Weight	764	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK
