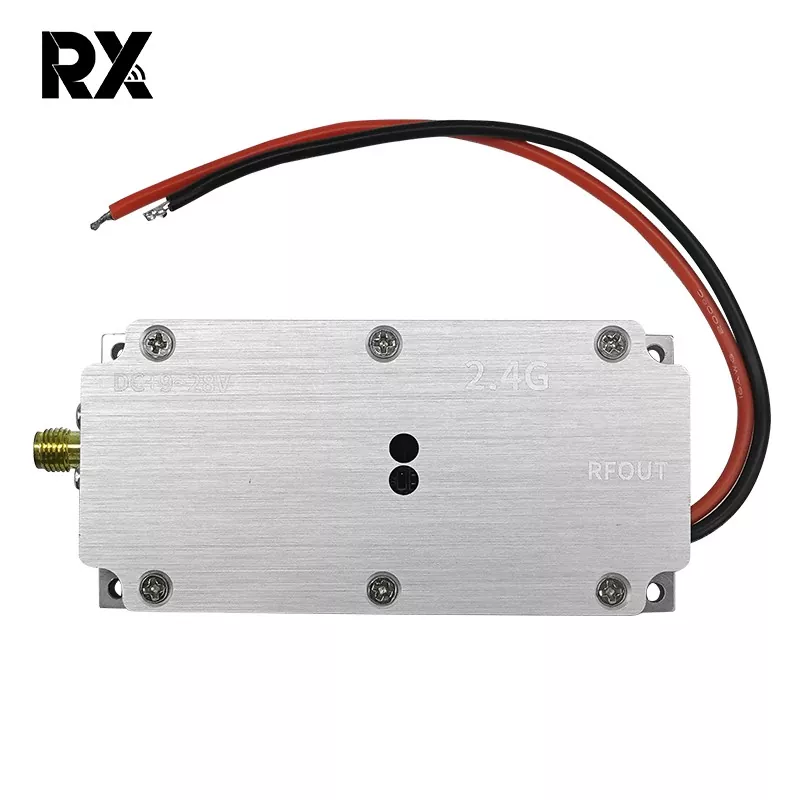

High Power 2.4GHz Lora 50W Signal Power Amplifier Module

Our high power 2.4GHz LoRa 50W signal power amplifier module, an advanced electronic module designed specifically to meet the needs of efficient, high-power amplification of LoRa signals in the 2.4GHz frequency band. With an output power of up to 50W, this module can significantly enhance the incoming 2.4GHz LoRa signal strength. The quality of the modules produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

This high power 2.4GHz LoRa 50W signal power amplifier module is specially optimized for LoRa signals in the 2.4GHz band, ensuring efficient and accurate signal amplification in this specific frequency band. The 2.4GHz band is widely used in many wireless communication fields, especially in the communication of IoT devices. The module adopts a compact and lightweight design style, with small size and light weight, which can be easily integrated into various existing equipment or systems.

Product Specification

No.	Item	Data	Unit
1	Frequency	2.4	GHz
2	Test voltage	28	V
3	Current	3.7	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

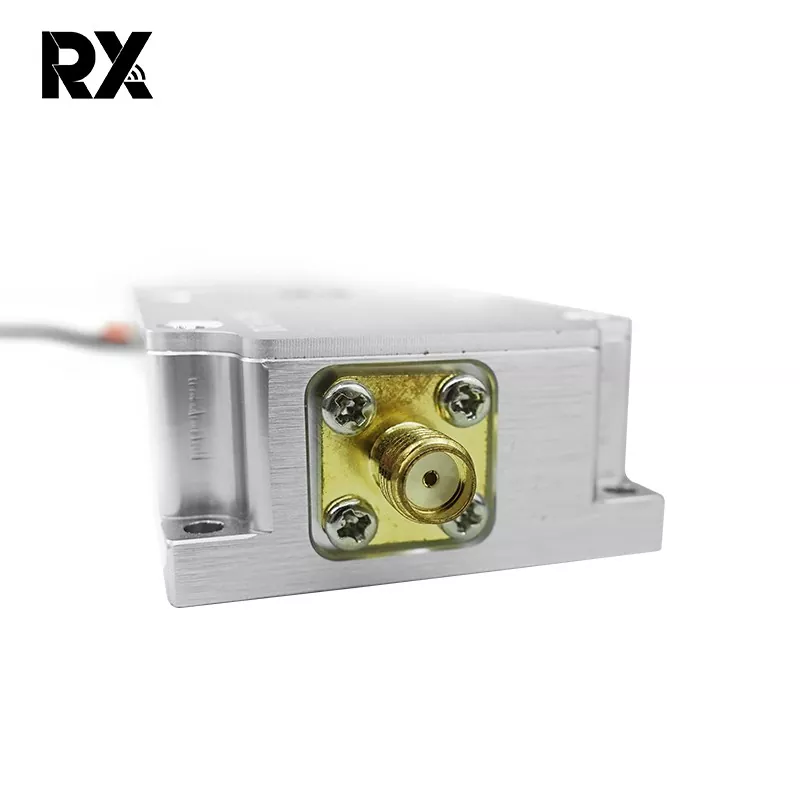

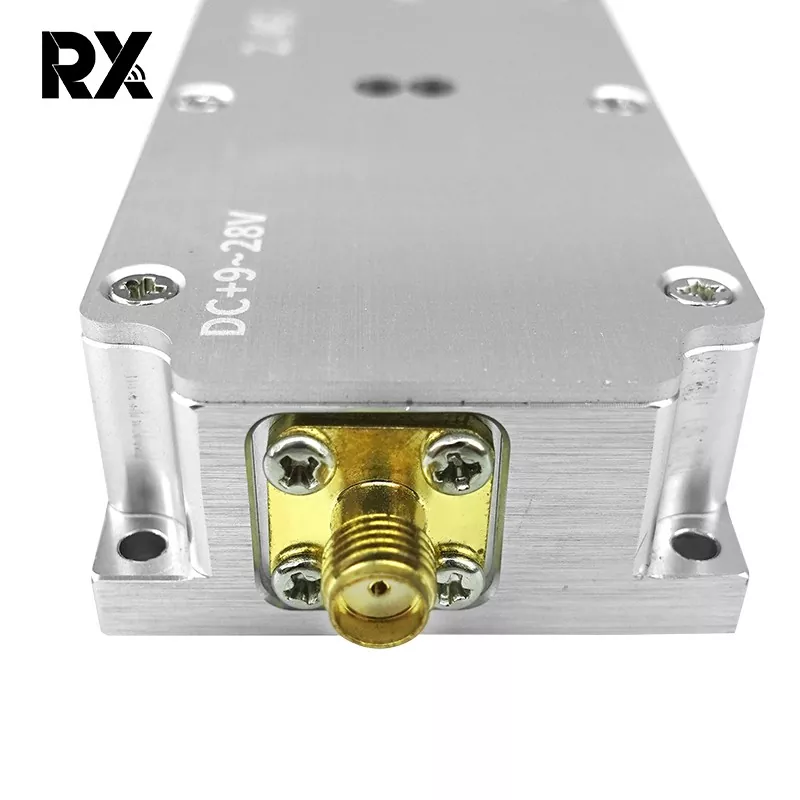

7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	914019	mm
13	Weight	122	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK

Product feature

1. High power output 2.4G

2. Precise frequency support

3. Compact and lightweight design

4. High-efficiency signal amplification

5. Lora design
