High power 100w drone shield module RF Module

With years of experience in production High power 100w drone shield module RF Module products, Shenzhen Rongxin Communication Co., Ltd can supply a wide range of anti drone related products . If you need, please get our online timely service about signal jammers and boosters. All of our products support customizing according to your specific needs such as frequency,power and logo.

Send Inquiry

Product Description

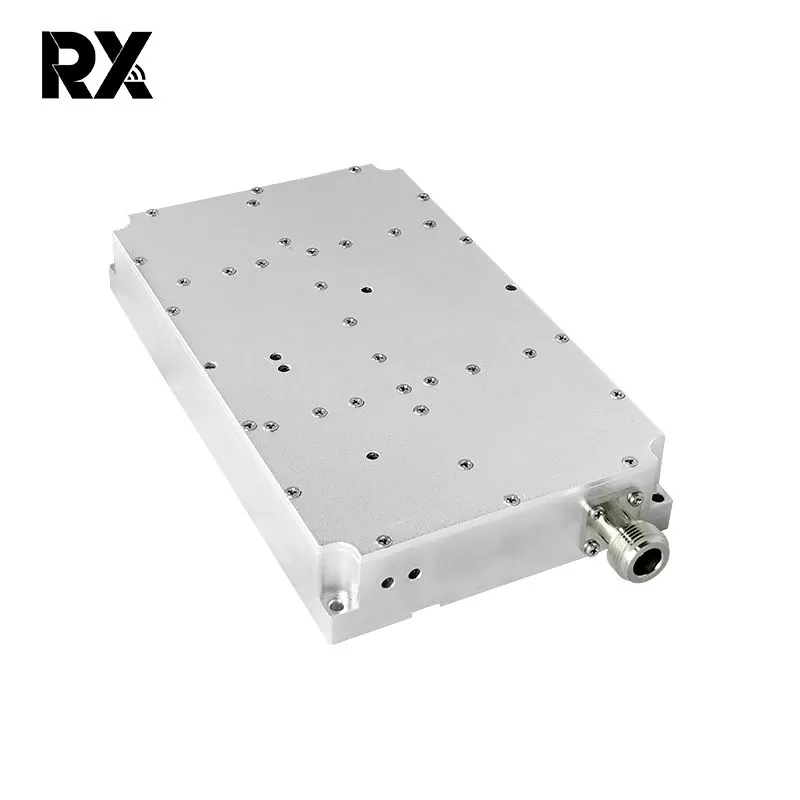

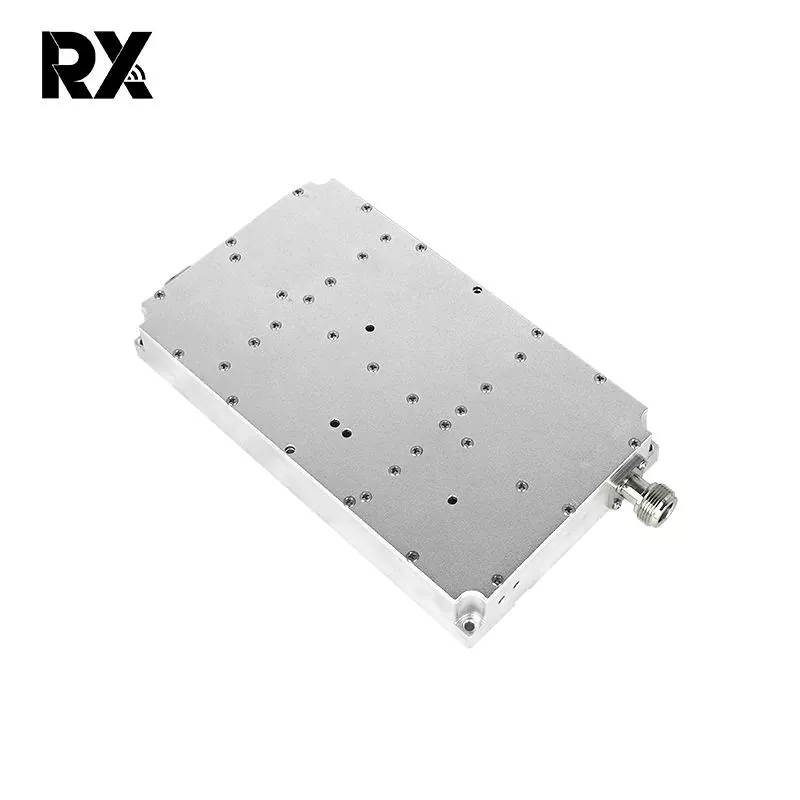

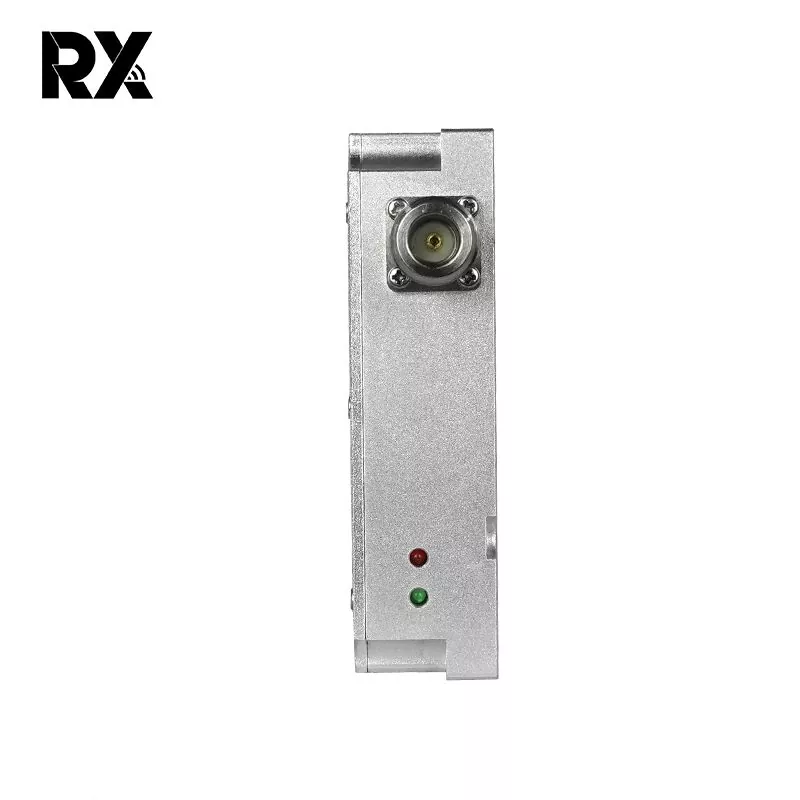

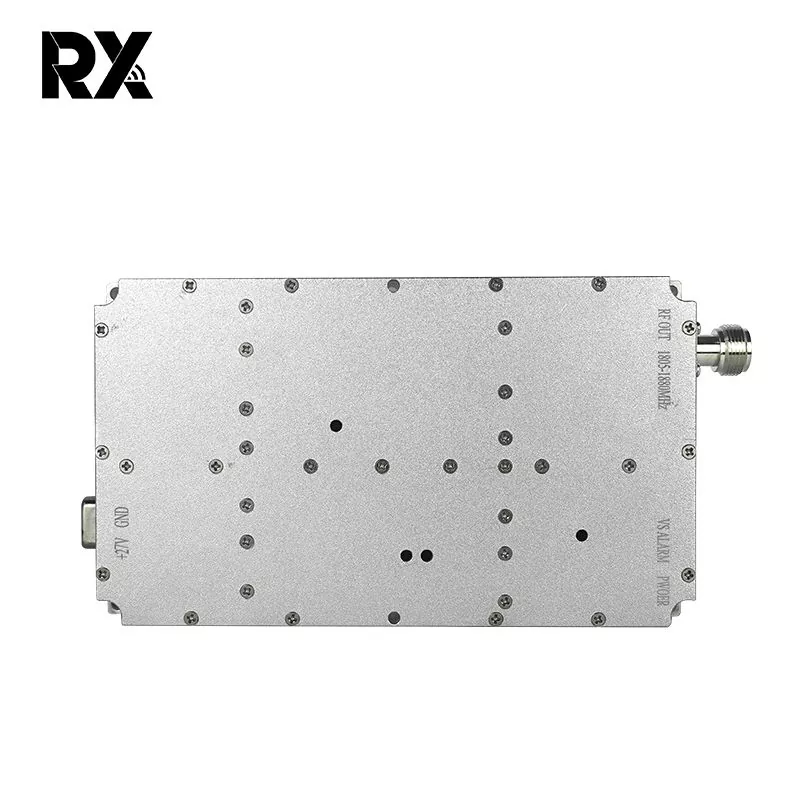

Rongxin High power 100w drone shield module RF Module Introduction

This wholesale Rongxin high power 100w drone shield UAV blocking module RF module has the advantages of high average output power ( 100-120 W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands.

Rongxin High power 100w drone shield module RF Module performance index

Index	Numerical value			Unit	Note
Index	Min	Typical	Max	Unit	Note
Signal frequency	2400		2500	MHz
Output power	49.5	50	51.5	dBm
Band flatness		1		dB
Work current		3.1		A
Work voltage	28		32	V
Work efficiency		38		%
Thermally offset of upper band		8		MHz	Module surface temperature: 85°C
Thermally offset of bottom band		8		MHz	Module surface temperature: 85°C
Weight	0.22kg
Dimension	1316018 mm

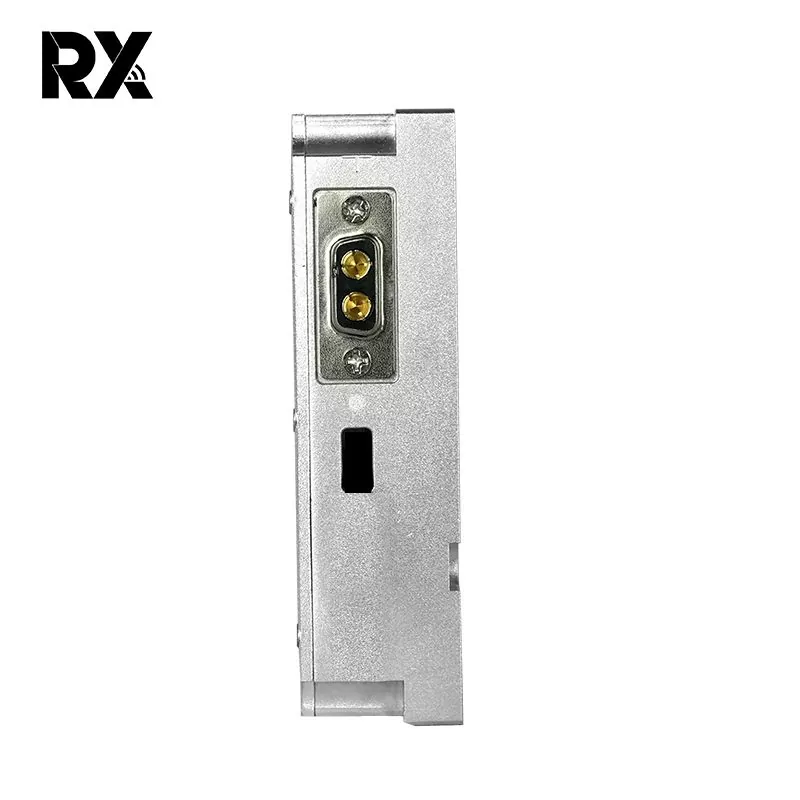

Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell. 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range.

Rongxin High power 100w drone shield module RF Module Precautions

Power supply needs to have 28V /9A

If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.

When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
