High Gain 700-1050MHz Omni directional Antenna

It is a omnidirectional antennas can transmit and receive signals evenly in 360° horizontal direction. They are suitable for scenarios that require all-round coverage, such as open areas such as squares and parks, as well as places with multiple rooms indoors. High Gain 700-1050MHz Omni directional Antenna has 700-1050MHz frequency range, it has high power output. With high gain, usually between 6dBi-12dBi, it can enhance signal strength, expand coverage, and effectively improve the performance and reliability of the communication system. The quality of the antennas produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

This antenna has 5.5dbi, It can enhance signal strength, expand coverage, and effectively improve the performance and reliability of the communication system. High Gain 700-1050MHz Omni directional Antenna can be used to enhance the coverage of base station signals, increase signal strength in marginal areas, and improve communication quality. It is especially suitable for areas such as rural and mountainous areas where base station coverage is difficult.

Product specification

Electrical Specifications
Frequency Range	700-1050MHz
Gain	5.5dBi
VSWR	<1.5
Polarization	Vertical
Non-circularity	±2dB
Inputimpedance	50Ω
Max Input Power	100W
Connector	N Female
Mechanical Specifications

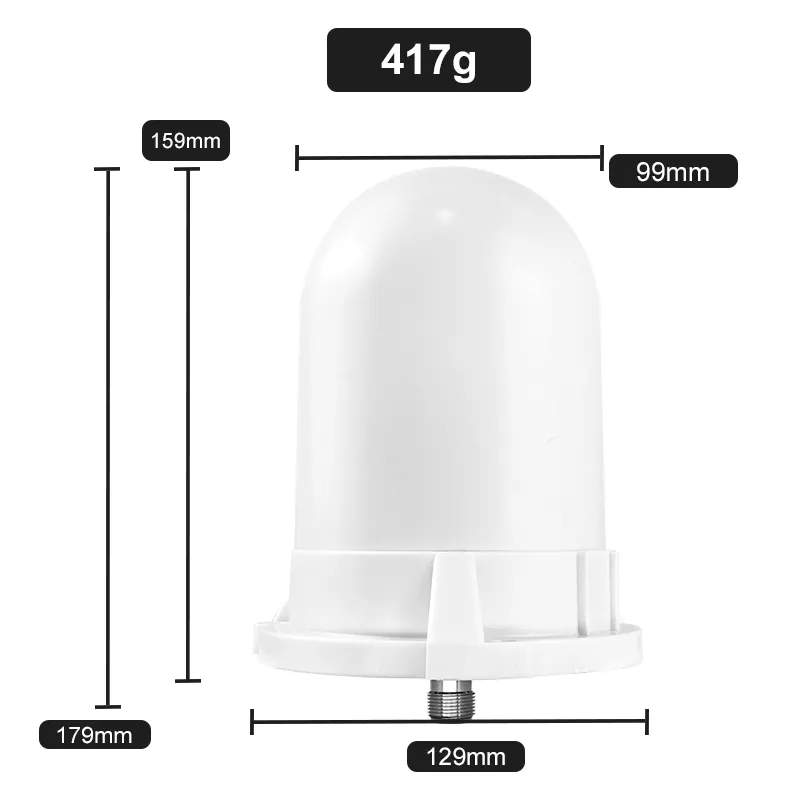

Dimensions	Φ179X129mm
Weight	417g
Radome Material	Fiberglass
Radome Color	White
