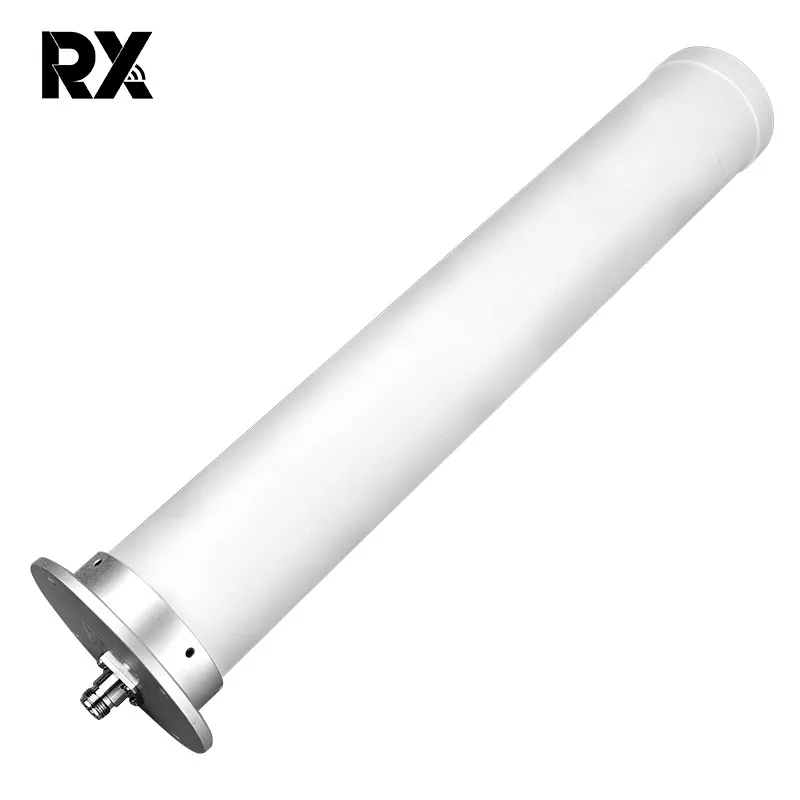

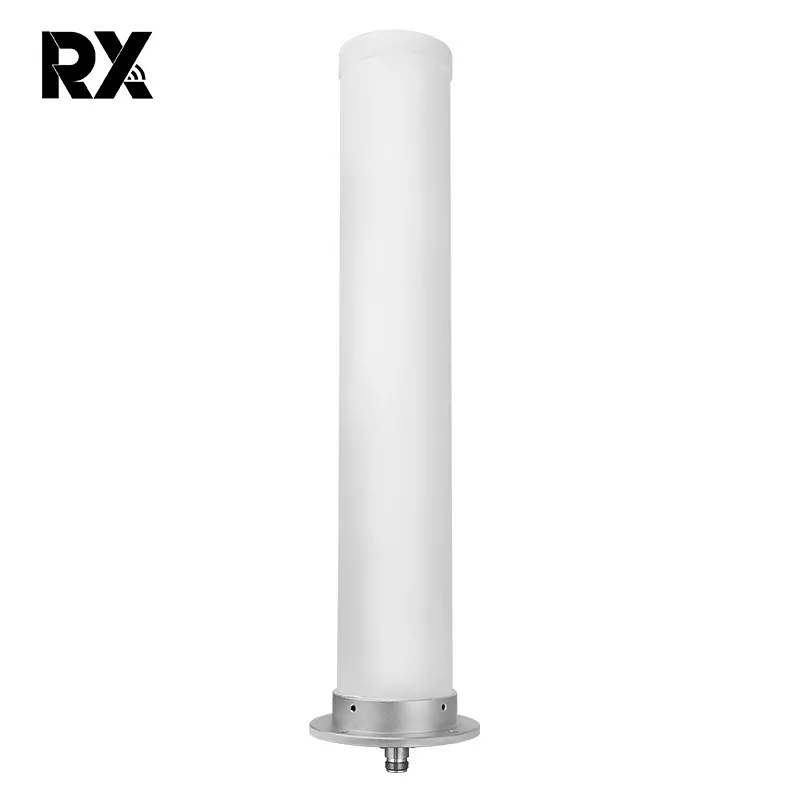

High Gain 100W High Frequency Omni Directional Antenna

This antenna is a high gain, high power handling capability and omnidirectional radiation antenna. High Gain 100W High Frequency Omni directional Antenna often covers multiple high frequency bands, such as 433MHz, 900MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz, etc. Some products have narrower or wider frequency bands, depending on the design purpose and application scenario. Different frequency bands correspond to different wavelengths and propagation characteristics, which can meet the needs of various wireless communication systems.The quality of the antenna produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

This antenna has high power output 100w, it can meet the needs of wireless communication equipment with higher power requirements, such as long-distance wireless data transmission systems, wireless video surveillance systems, etc., to ensure that the equipment works stably under high power and transmits signals effectively. High Gain 100W High Frequency Omni directional Antenna widely used in various wireless communication systems, such as cellular networks, Wi-Fi networks, wireless data transmission, etc., to enhance the signal coverage of base stations or access points, and improve communication quality and stability

Product specification

Electrical specifications
Frequency range(MHz)	1550-1620MHz(customized)
Gain (dBi)	5-6.5dBi
Half-power beam width(º)	H:360 V:15
Impedance (Ω)	50
VSWR	≤1.5
Polarization	Vertical
Maximum input power (W)	100
Lightning protection	DC Ground
Mechanical specifications

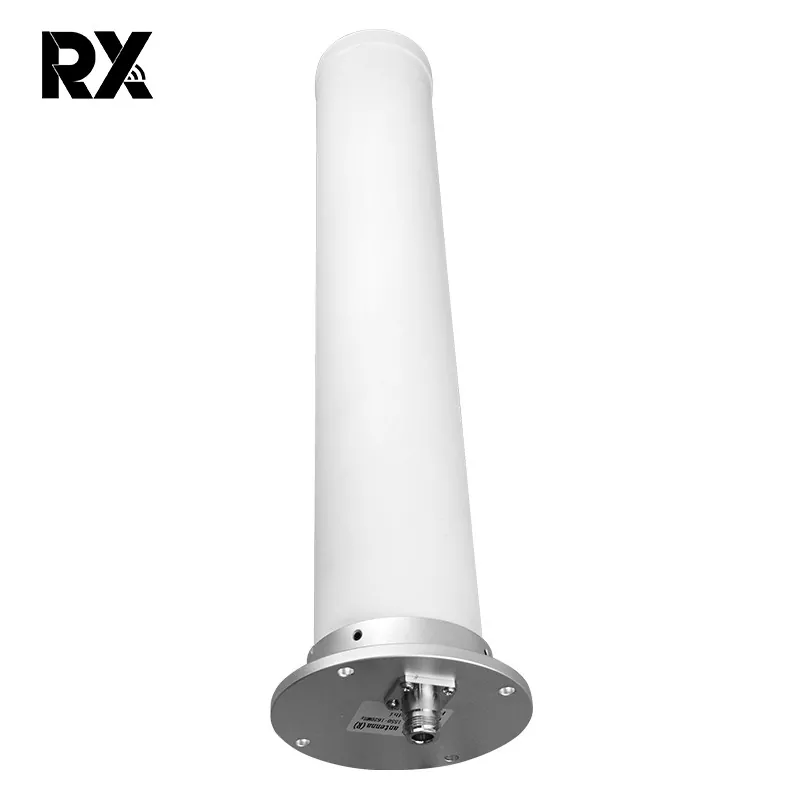

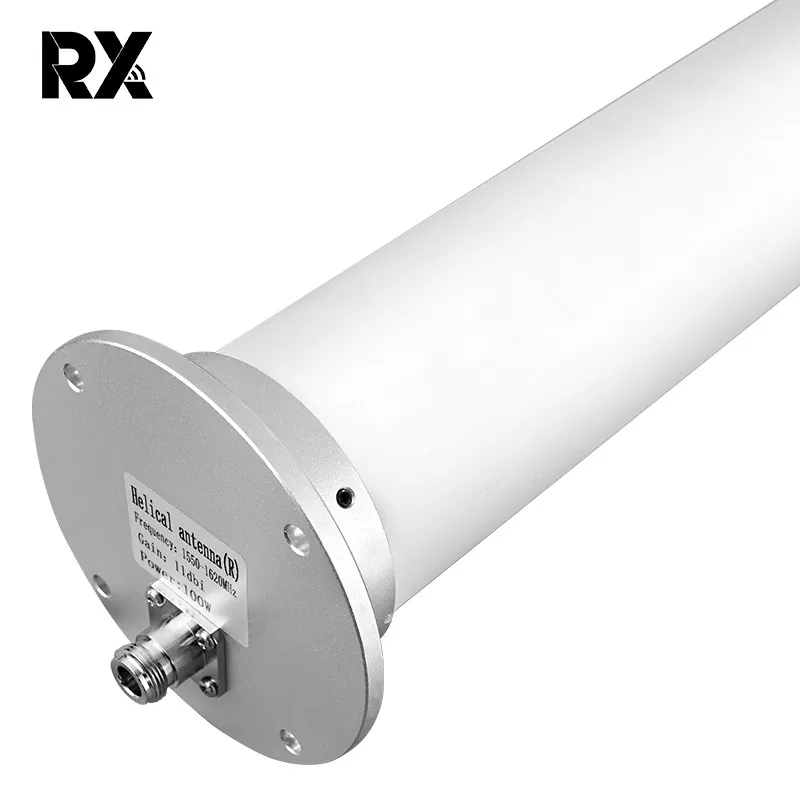

Connector	N female

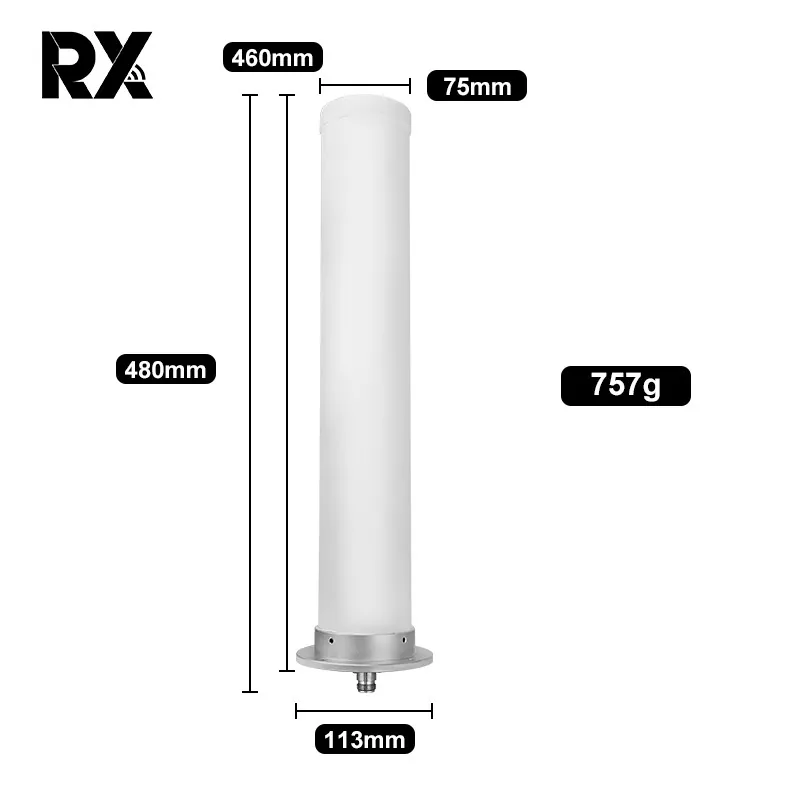

Dimension (mm)	Ф113*480mm
Antenna weight	757g
Material	PVC
Rated wind velocity (km/h)	60

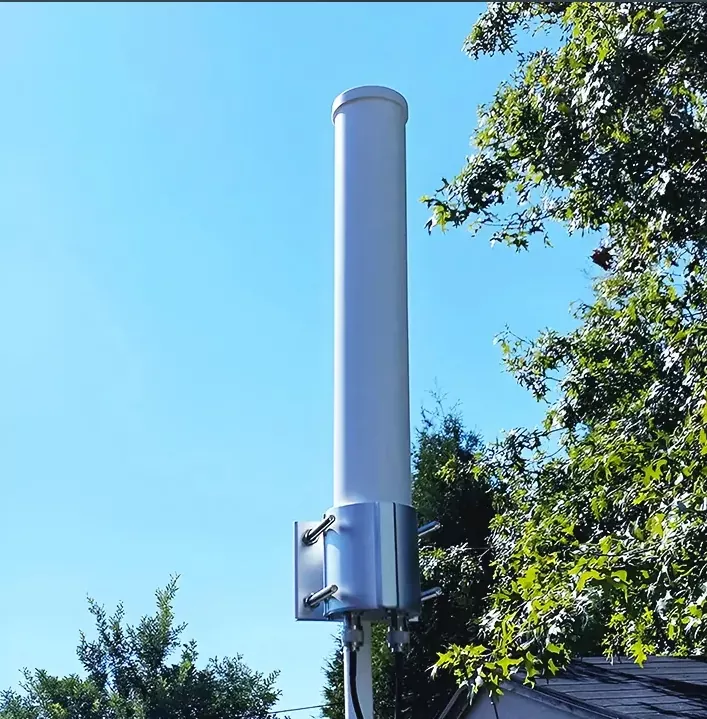

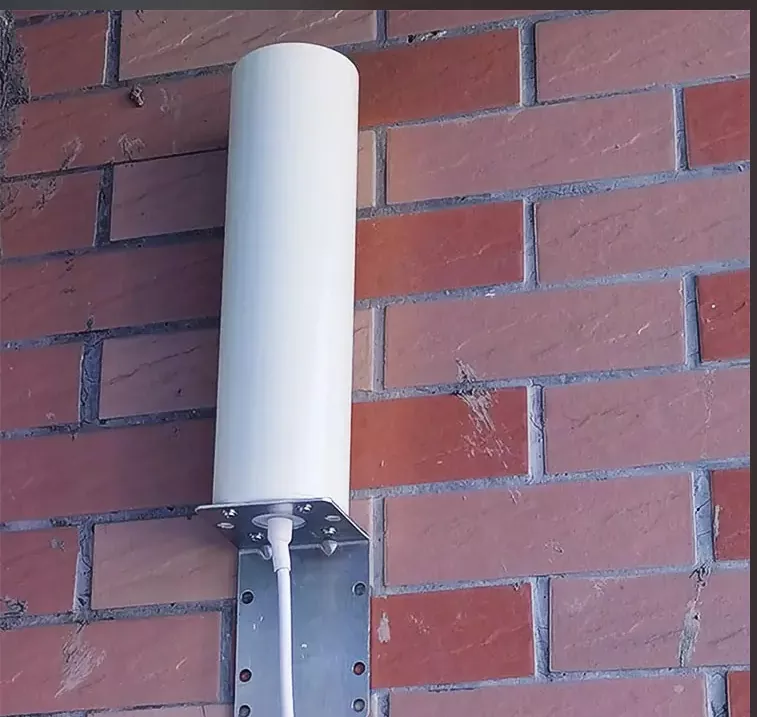

Mounting way	Pole-holding
Ambient temperature (℃)	-40℃~+60
Radome material	Fiberglass
Radome Color	White
