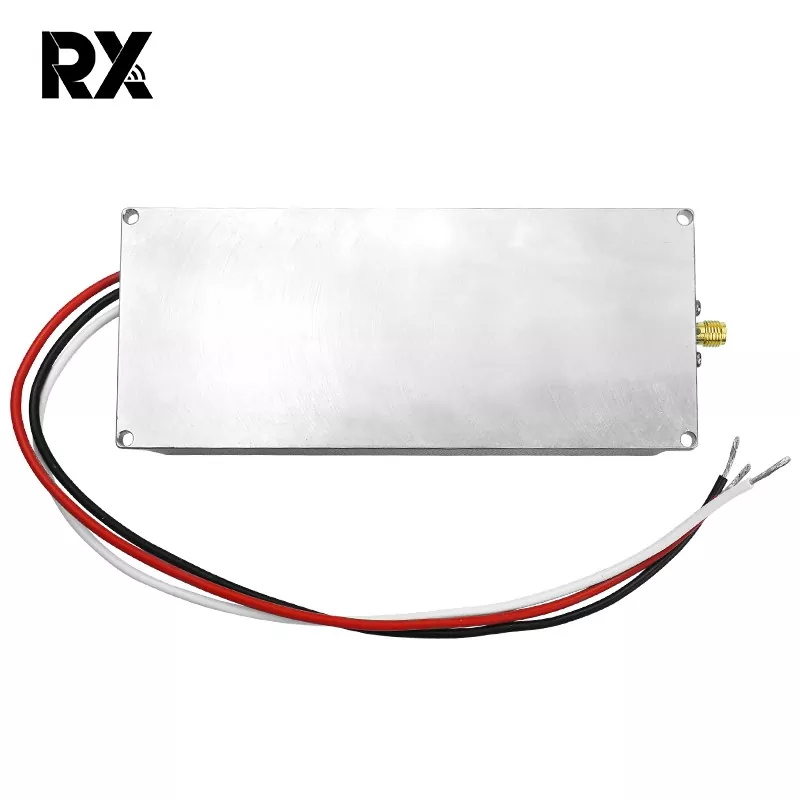

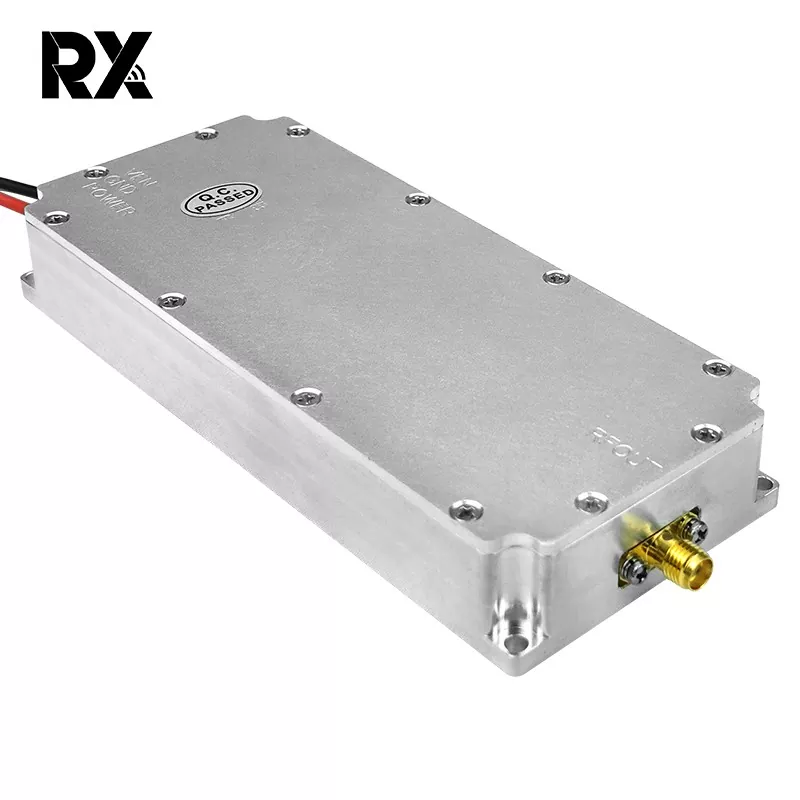

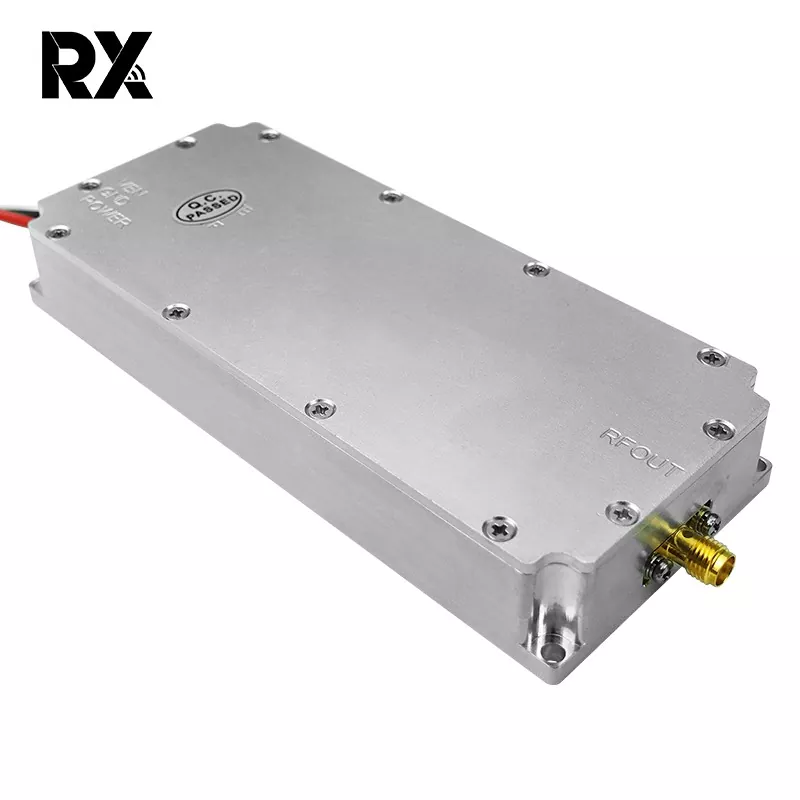

GAN 50W Power Amplifier Module With Circle Protection

This GAN 50W power amplifier module with circle protection, integrated with a circular protection system, is a sophisticated radio frequency (RF) amplification solution. It is engineered to deliver high-power output, making it indispensable for diverse RF applications such as communication systems, radar operations, and electronic countermeasure setups. It offers users a reliable and efficient power amplification option. RX, known for its manufacturing prowess, ensures the superior quality of these modules. Their proven performance and effectiveness have earned them a strong reputation among users. It's evident that RX's offerings are vital across both defense and commercial sectors.

Send Inquiry

Product Description

The GaN 50W power amplifier module with circle protection, equipped with a circular protection feature, is capable of delivering an output power of up to 50W, satisfying the requirements for robust radio frequency (RF) signals. The inclusion of a ring protection mechanism enhances the stability and dependability of the module. It offers robust resistance to external disturbances and physical impacts, minimizing the risk of equipment malfunction. This design ensures uninterrupted and stable performance even in challenging environments.

GAN 50W power amplifier module with circle protection specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	DC28	V
3	Current	3	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

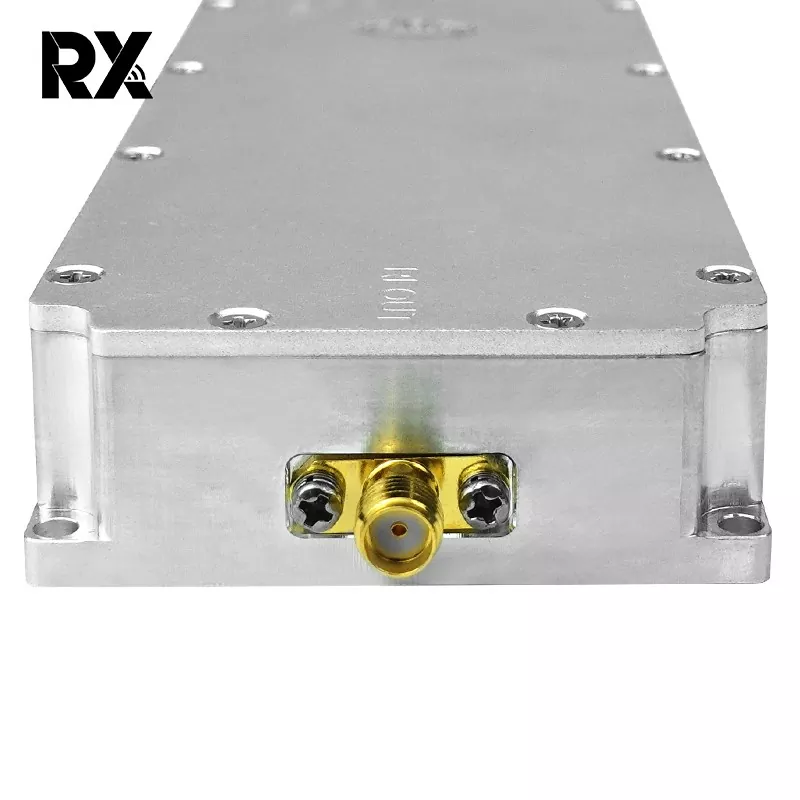

7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB

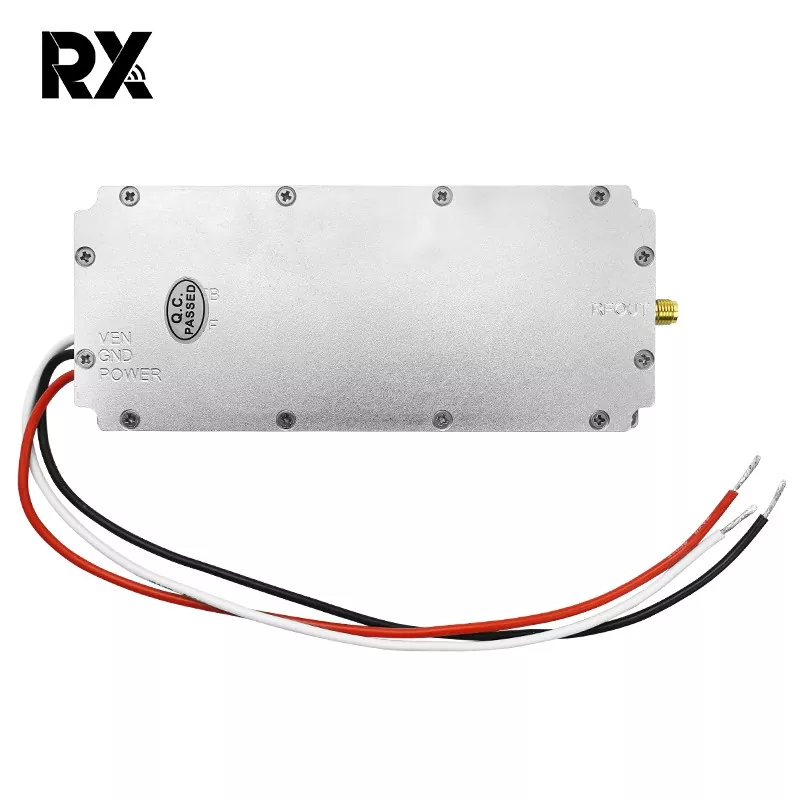

10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1305520	mm
14	Weight	239	g
15	Work Temperature	-20~+70	℃
16	Out shell material	Aluminum
17	Standing Wave Protection	OK
