GaN 100W Digital source signal amplifier Module with Circle Protection

This product is a 100W digital source signal amplifier module based on GaN technology with a ring protection function. It can efficiently amplify digital source signals and is suitable for systems such as communications and radars that require high signal power and stability. GaN 100W Digital source signal amplifier Module with Circle Protection can effectively enhance signal strength and ensure the quality and reliability of signals during transmission. Our modules can customize the frequency band of the product, the quality of the modules produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

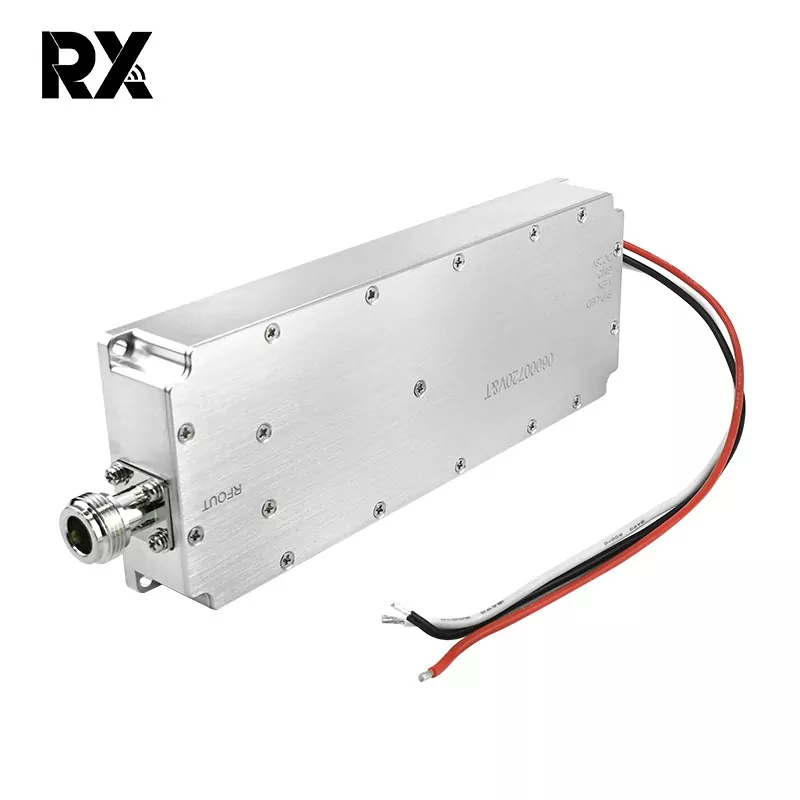

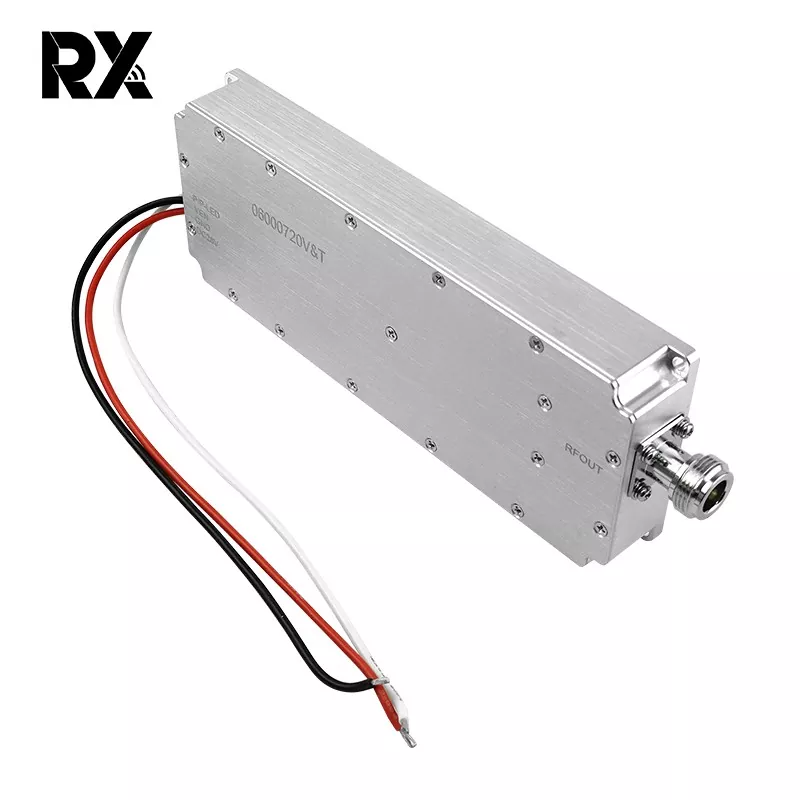

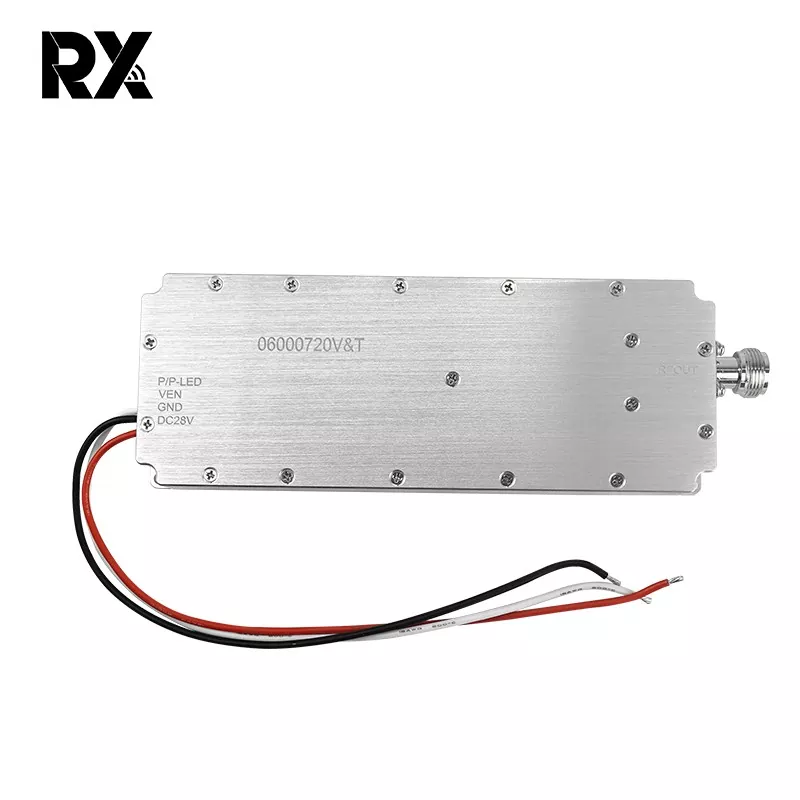

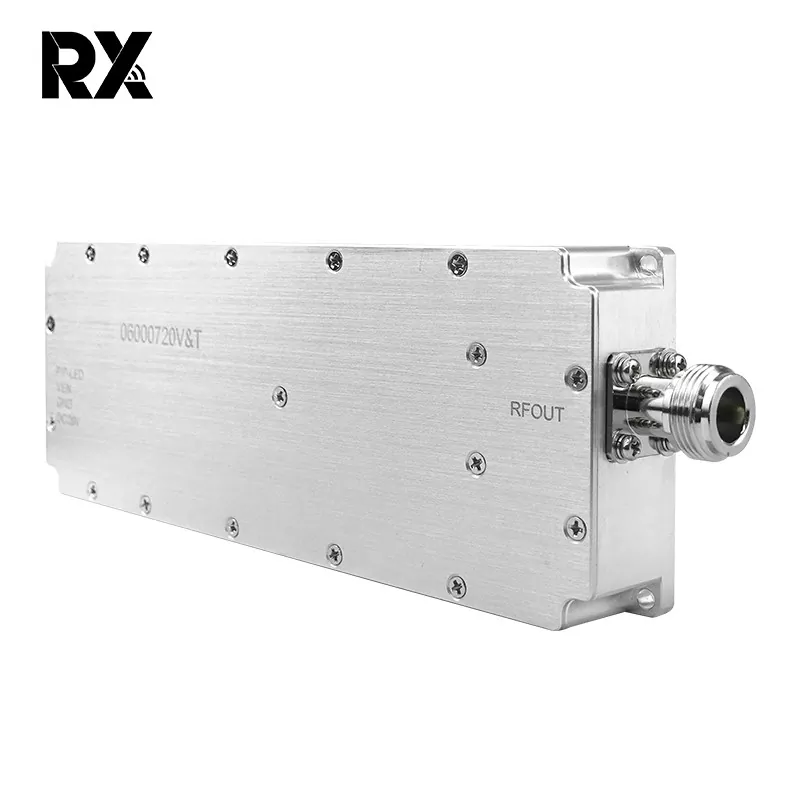

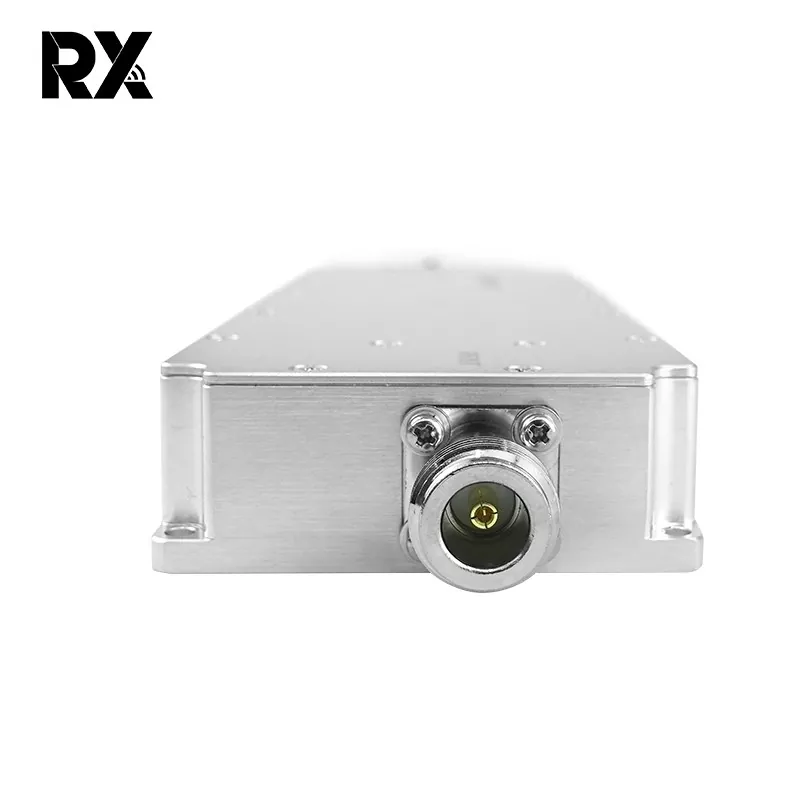

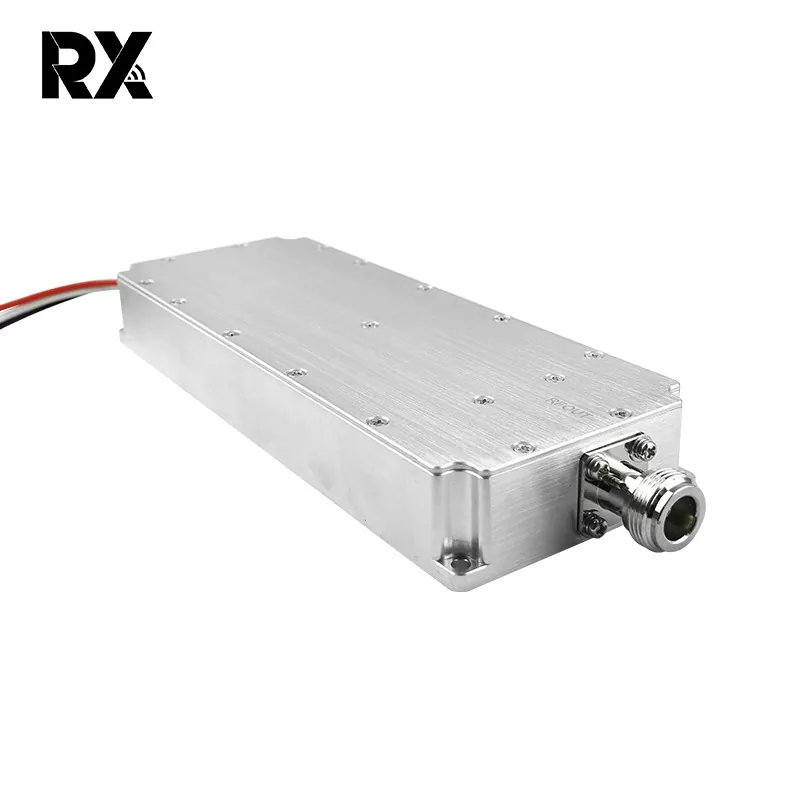

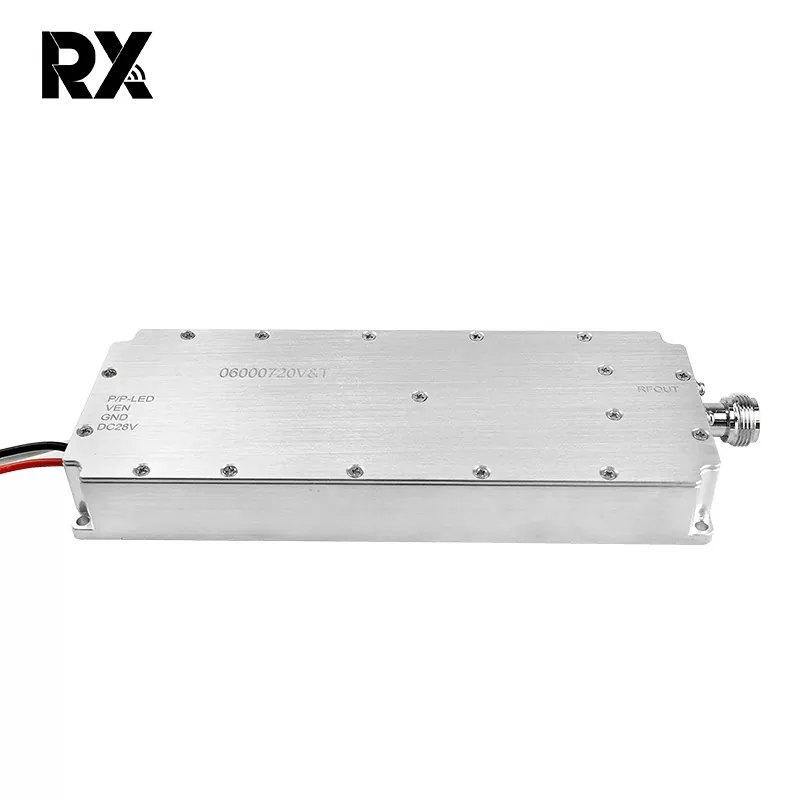

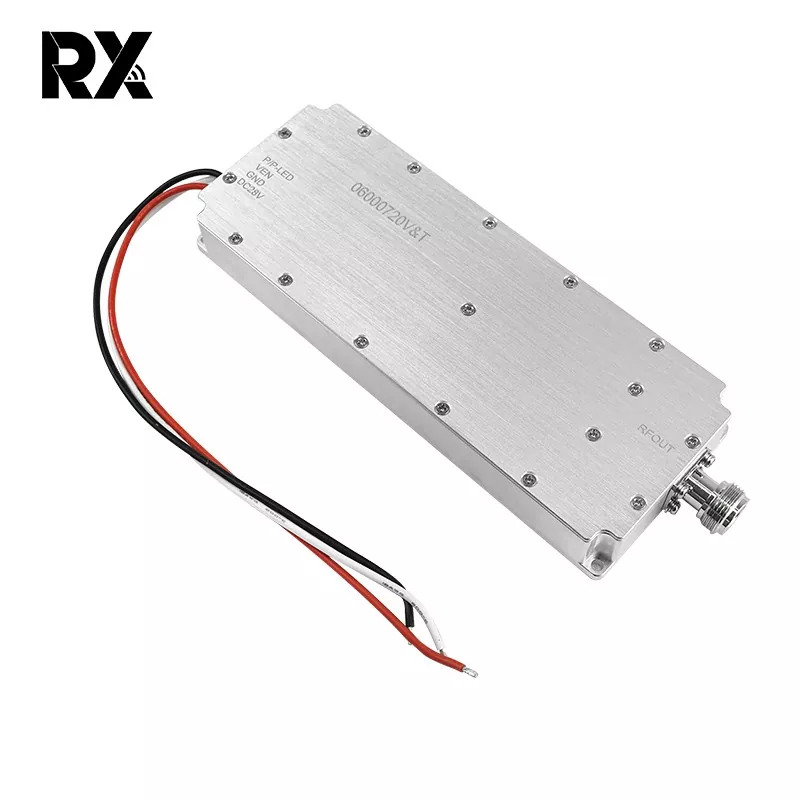

The appearance of this module is made of aluminum, with the ring protection function, it can protect the module and surrounding circuits under abnormal conditions such as overcurrent, overvoltage, overheating, etc., ensuring stable operation of the system and extending its service life. This module uses common RF connectors such as SMA and N-type, which is convenient for connecting with other RF devices.

Product specification

No.	Item	Data	Unit
1	Frequency	Customized	MHZ
2	Test voltage	24-28	V
3	Current	4	A
4	Output	100	W
5	Gain	50	dB
6	Output stability	1	dB
7	Connector	N/Female
8	Output connector	N-end
9	Material	aluminium
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1745823	mm
13	Mount hole	174*68	mm
14	Weight	550	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK

Product feature

1.Aluminium alloy material which has waterproof ,durable,good heat dissipation

2. Light weight to carry

3.Lora digital source inner

4.700-1000MHZ RF range offered

5.Wide range of application
