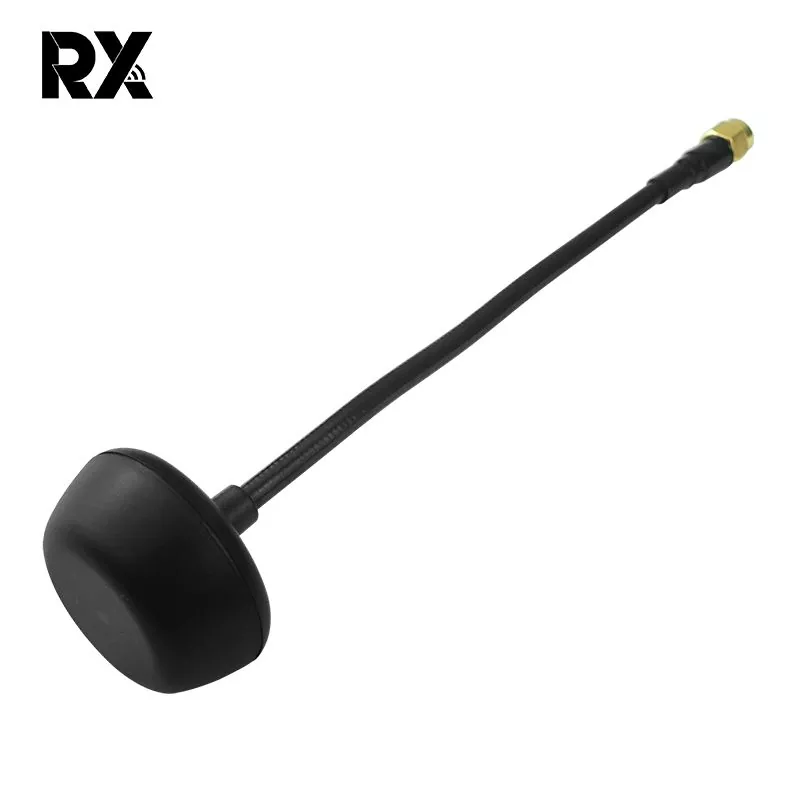

FPV Mushroom Head Shape 5.8G 3dBI Omni FPV Antenna

This unique FPV Mushroom head shape 5.8G 3dBI omni FPV antenna is designed for 5.8G frequency and provides 3dBI omnidirectional signal coverage, ensuring you get stable and clear image transmission during FPV flight. TeXin is antenna manufacturer and supplier in China who can wholesale omni antenna. We can provide professional service and better price for you.

Send Inquiry

Product Description

FPV Mushroom head shape 5.8G 3dBI omni FPV antenna

The FPV Mushroom head shape 5.8G 3dBI omni FPV antenna design is not only stylish, but also effectively reduces wind resistance and improves flight stability. It has 360-degree omnidirectional signal reception, which can maintain a stable signal connection regardless of the flight direction of the drone. The 3dBI gain ensures stronger signal strength, allowing you to perform FPV flights at a longer distance.

FPV Mushroom head shape 5.8G 3dBI omni FPV antenna specification

Electrical Specifications
FrequencyRange	5.8G(customized)
Gain(dBi)	3dBi
VSWR	≤2
Polarization	virtical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	55±10º 30±10º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Input connector type	SMA
Mechanical Specifications
Dimensionsmm(Height/Width/Depth)	1401632mm
Packing size(mm)	1452135mm
Antenna weight(kg)	14g
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(％)	10- 95
Radome Color	black
Radome material	ABS
Operating temperature(ºC)	-40～55 º
Installation Method	Machine mounting
