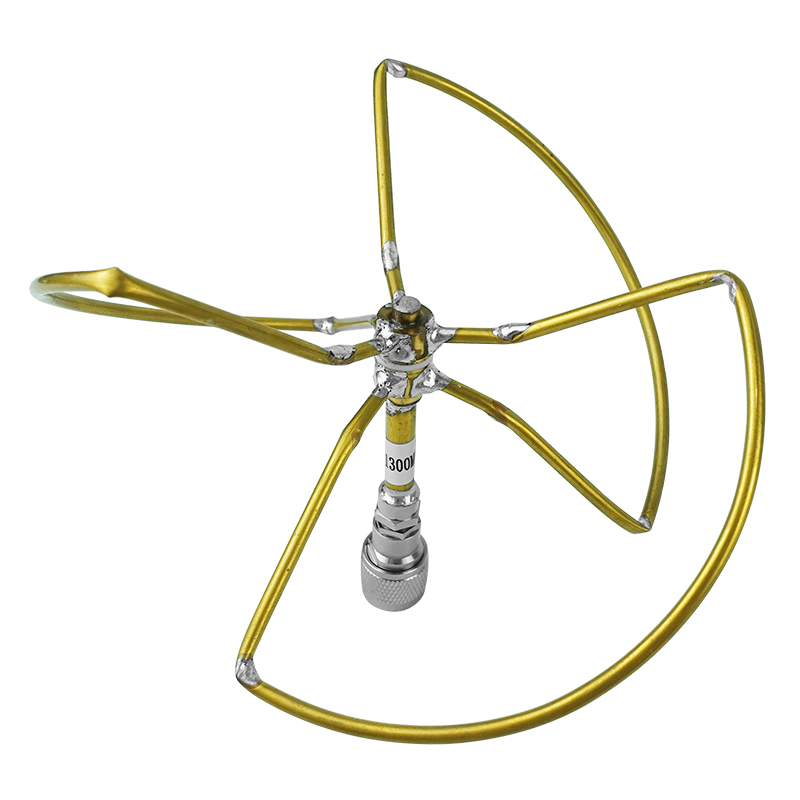

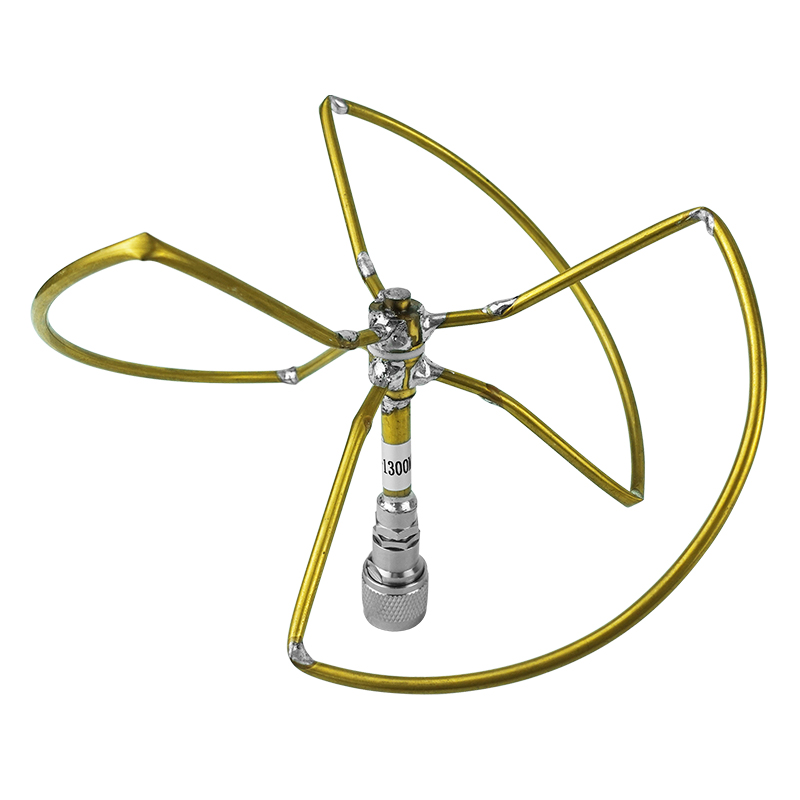

Four-leaf Clover Antenna Omnidirectional High-gain

The Four-leaf Clover Antenna Omnidirectional High-gain 1200-1300MHz is designed to meet the demanding needs of users in the 1200-1300MHz frequency range. This antenna offers omnidirectional coverage, high gain, and exceptional signal quality, making it ideal for a wide range of applications. The unique four-leaf clover shape of the antenna provides omnidirectional coverage, ensuring that you can receive signals from all directions. The quality of the antennas produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

With its high gain, this The Four-leaf Clover Antenna Omnidirectional High-gain 1200-1300MHz can significantly enhance the signal strength of your wireless device. This means longer range, better reception, and more reliable communication. The omnidirectional design of the antenna ensures that you can receive signals from all directions, eliminating the need to constantly adjust the antenna's position. This antenna is suitable for a wide range of applications, including wireless networking, surveillance systems, radio communications, and more. It can be used in both indoor and outdoor environments.

Product specification

█Electrical Specifications
Frequency Range	1200-1300MHz
Gain(dBi)	3±0.5dBi
VSWR	≤1.5
Polarization	vertical
HorizontalBeam width(0º) Vertical Beam width(0º)	360º 55±5º
ovality(dB)	≤±2dB
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Inpur connector type	SMA
█MechanicalSpecifications
Dimensionsmm(Height/Width/Depth)	93*19mm
Antenna weight(kg)	0.83KG
Radome Color	yellow
Operating temperature(ºC)	-40～80 º
Installation Method	Threaded docking

Product features:

1. Strong signal interference

2. Wide shielding range

3. Frequency band coverage

4. Multiple power options

Application

1. Industrial router

2. outdoor AP

3. Communication base station

4. Wireless module

5. Antenna radio

6. Digital map transmission
