Clover Antenna Large Drone High Power Antenna

Our 3500-3700MHz Clover Antenna Large Drone High Power Antenna is designed specifically to meet the demanding needs of high-power signal transmission for large drones. This antenna combines advanced technology with a unique design to offer exceptional performance and durability, ensuring seamless communication and control of your large drone. It provides high gain for enhanced signal strength and extended communication range. The quality of the antennas produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

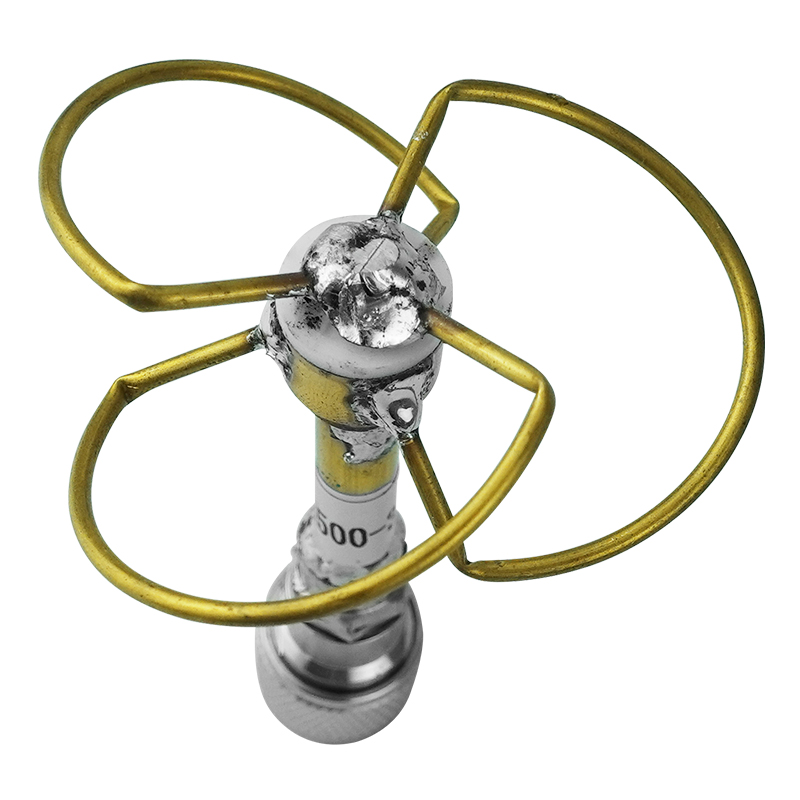

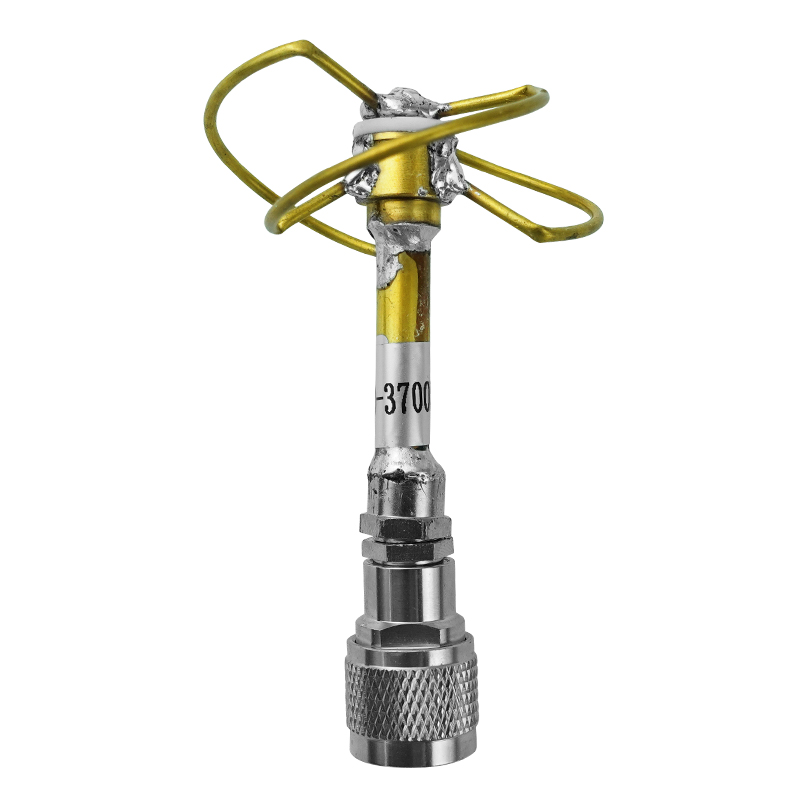

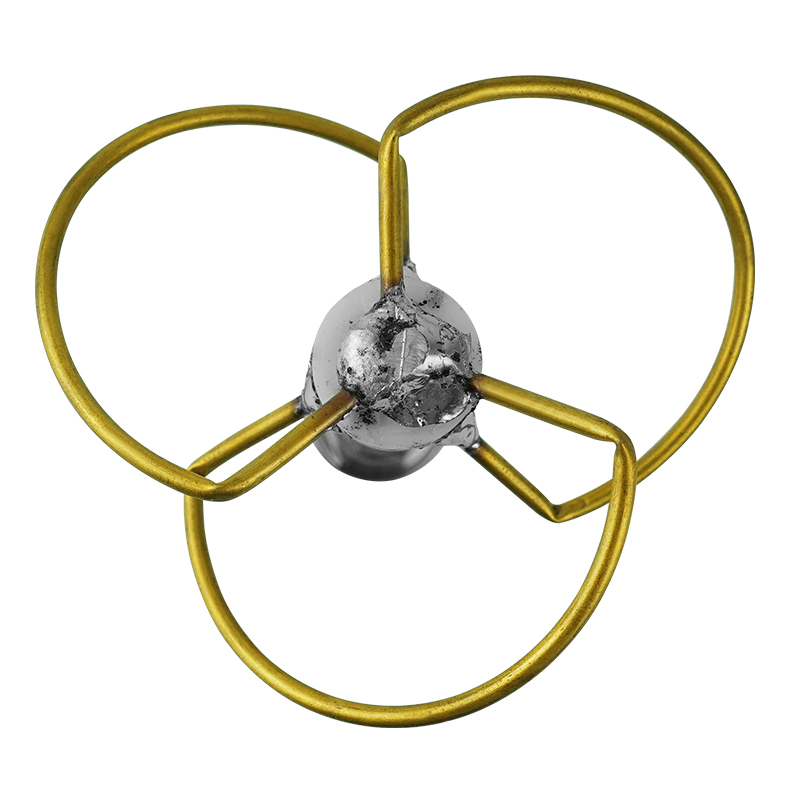

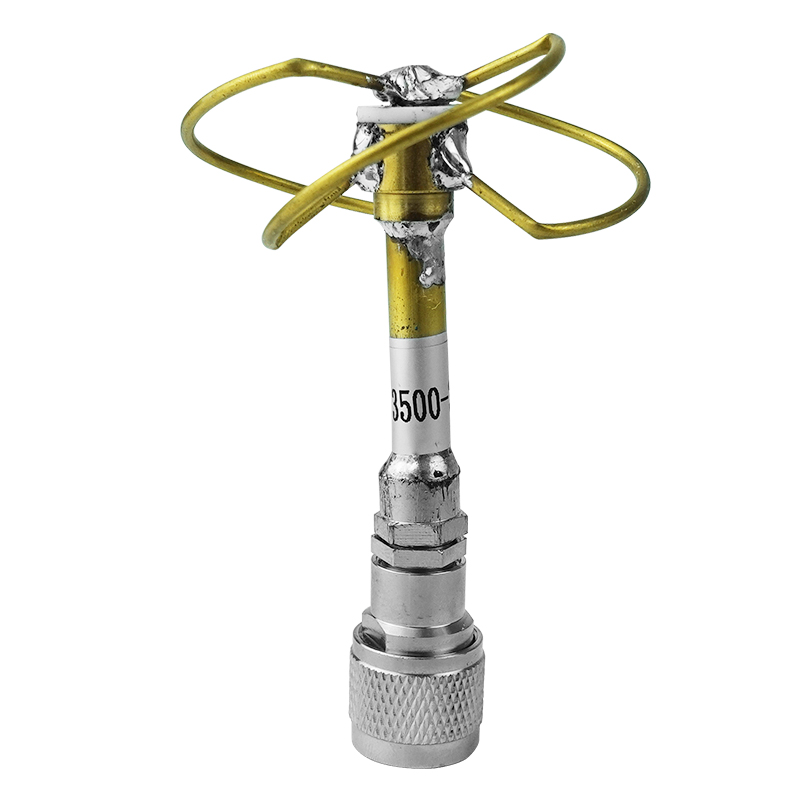

Our 3500-3700MHz Clover Antenna Large Drone High Power Antenna operates in the 3500 - 3700MHz frequency band, optimized for large drone applications. It can handle high power input, ensuring reliable performance even in demanding conditions. The unique four-leaf clover shape of the antenna offers omnidirectional signal coverage, ensuring stable communication from all directions. With its high-power handling capability, this antenna enables large drones to transmit signals over long distances with exceptional clarity and stability.

3500-3700MHz Clover Antenna Large Drone High Power Antenna specification

█Electrical Specifications
FrequencyRange	3500-3700MHz
Gain(dBi)	3±0.5dBi
VSWR	≤1.5
Polarization	vertical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±5º
ovality(dB)	≤±2dB
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W

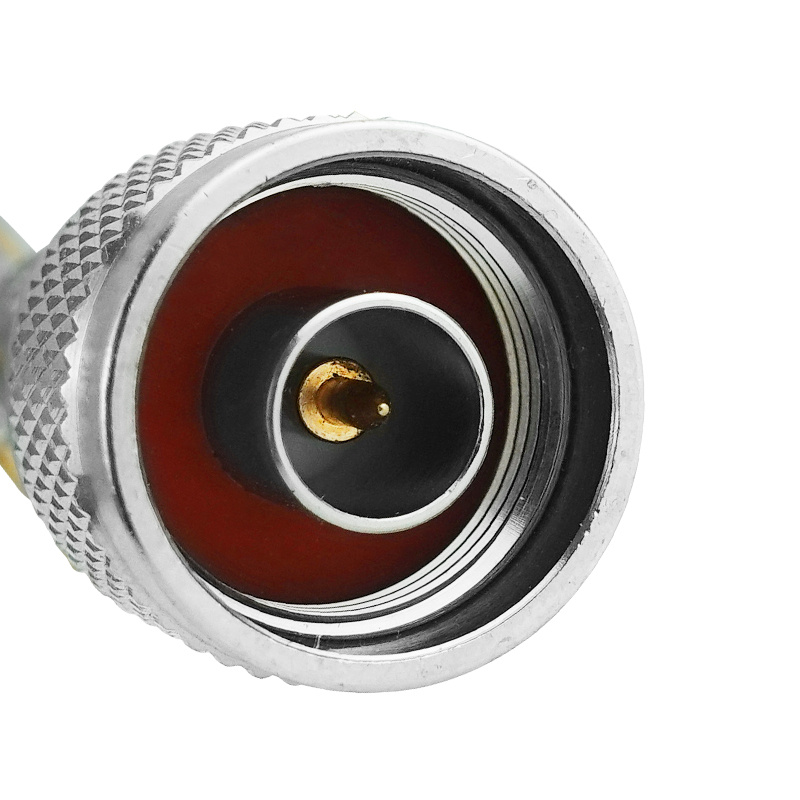

Inpur connector type	SMA(Inside thread inside needle)
█MechanicalSpecifications
Dimensionsmm(Height/Width/Depth)	ɸ93*19mm
Antenna weight(kg)	0.61KG
Radome Color	yellow
Operating temperature(ºC)	-40～80 º
Installation Method	Threaded docking

Product feature

1. High power signal transmission

2. Stable performance

3. Power optional

4. Wide shielding range

5. Adopts circular polarization design to resist interference

6. 360-degree omnidirectional coverage, no blind spots
