6 Band Anti Drone Butterfly Antenna

Shenzhen Rongxin Communication Co., Ltd is 6 Band Anti Drone Butterfly Antenna manufacturers and suppliers in China who can wholesale signal jammers. We can provide professional service and better price for you. If you are interested , please contact with us.

Send Inquiry

Product Description

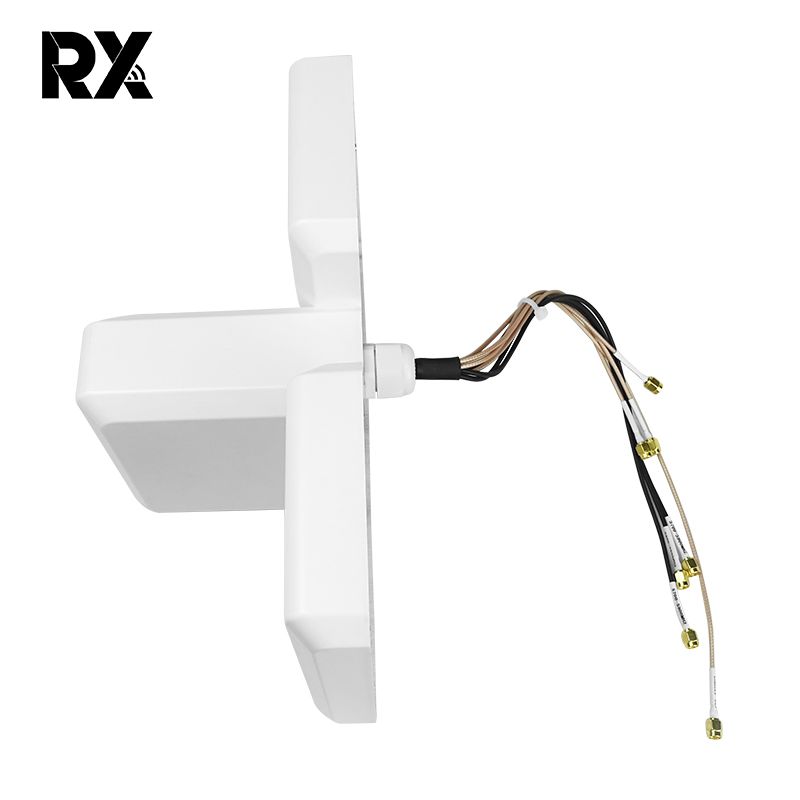

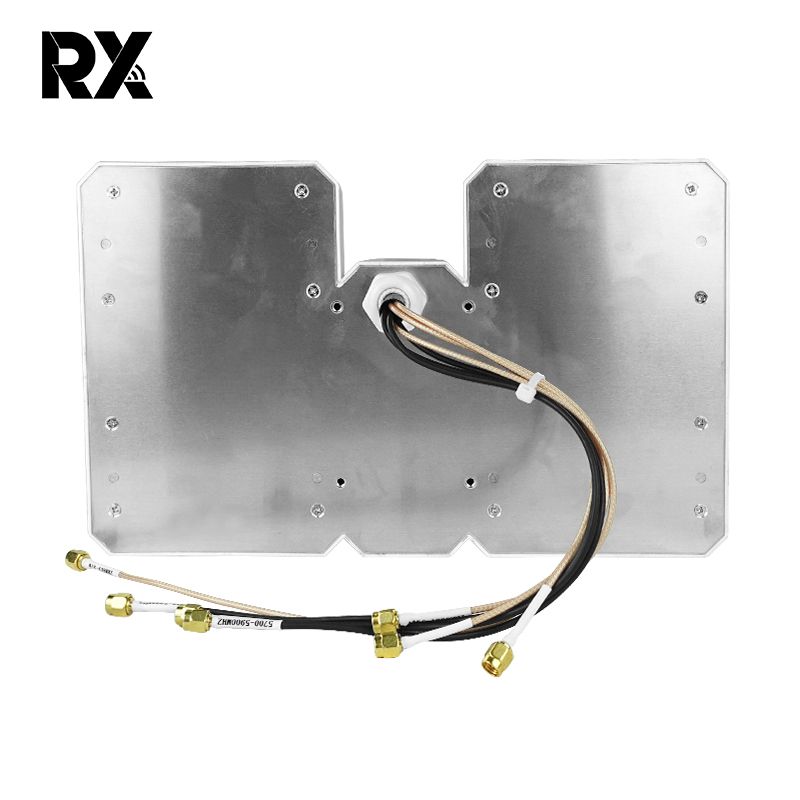

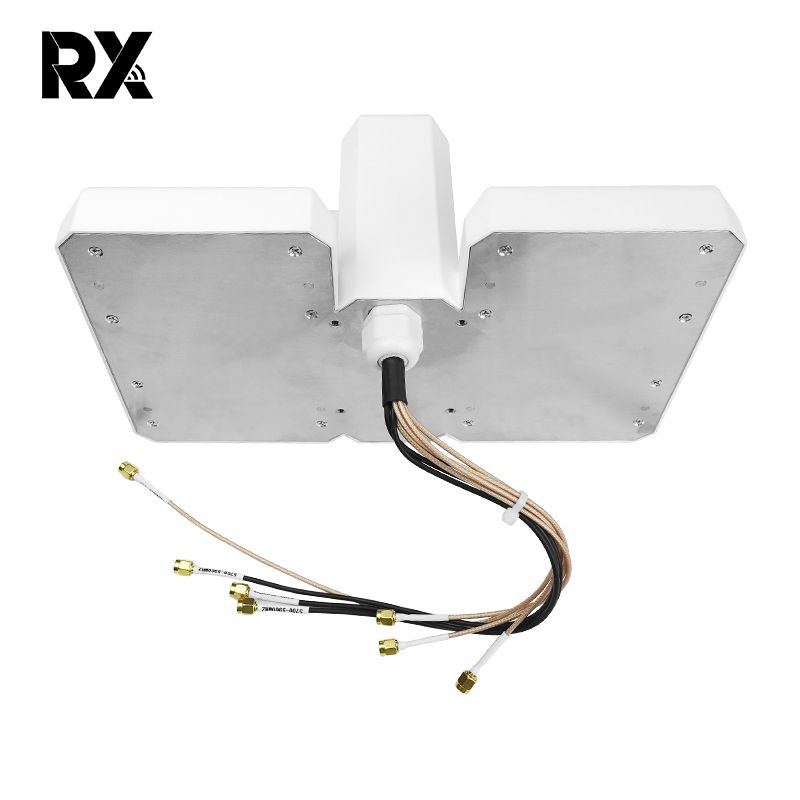

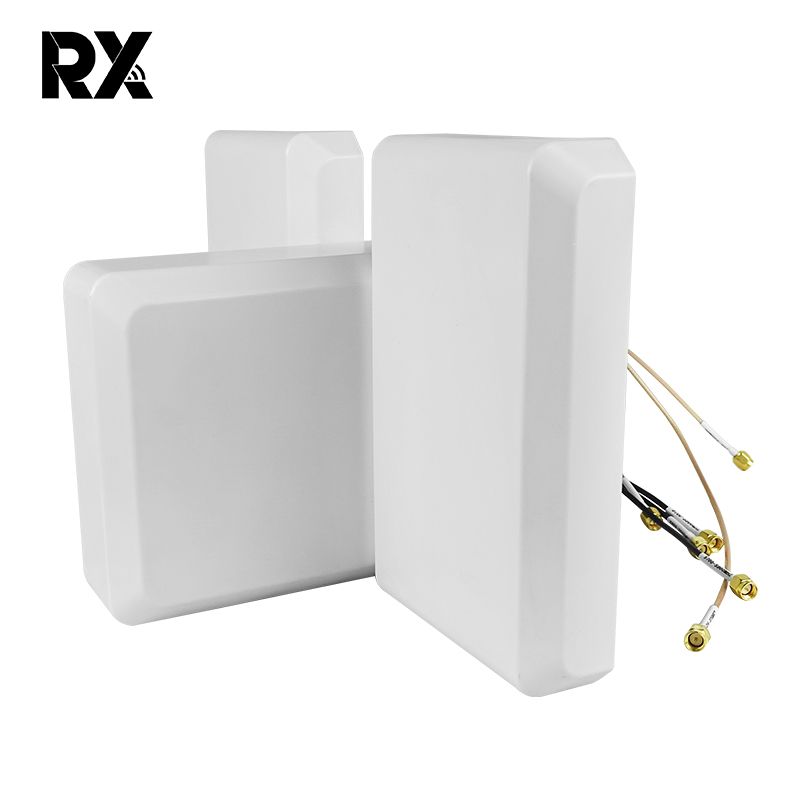

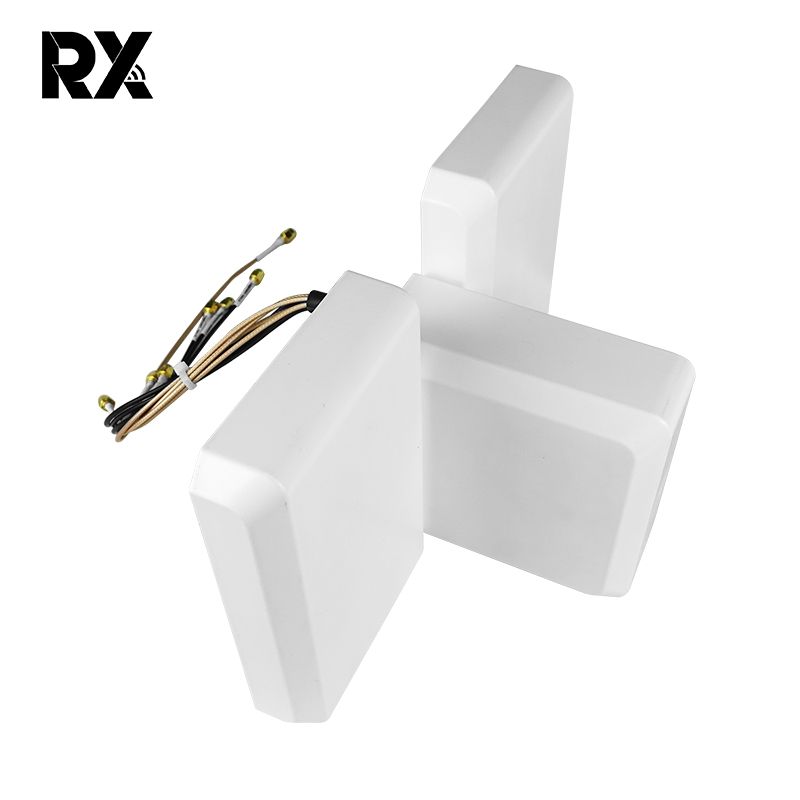

This 6 band anti drone butterfly antenna is independently designed by our company Shenzhen Rongxin Communication Co., Ltd with 1 year quality warranty. This 6 band anti drone butterfly antenna is used in anti drone products ,and we support customizing frequency.

6 band Anti Drone Butterfly antenna Introduction Electrical Specifications

Electrical Specifications
Frequency Range	860-930/1160-1280/1560-1620/2400-2500 /5150-5350/5700-5900MHz
Gain(dBi)	860-930MHz 5dbi 1160-1280MHz 8dbi 1560-1620MHZ 8dbi 2400-2500MHz 12dbi 5150-5350MHz 12dbi 5700-5900MHz 15dbi
VSWR	≤2
Polarization	860-930MHz V 1160-1280MHz V 1560-1620MHZ V 2400-2500MHz V 5150-5350MHz H 5700-5900MHz V
Horizontal Beamwidth(0º)	65±5º
Vertical Beamwidth(0º）	860-930MHz 65±5º 1160-1280MHz 65±5º 1560-1620MHZ 65±5º 2400-2500MHz 45±5º 5150-5350MHz 28±5º 5700-5900MHz 28±5º
Front-to-back ratio(dB)	≥18
Electrical lower inclination(0º)	0º
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Inpur connector type	6*SMS-J
Lightning Protection	DC Ground
