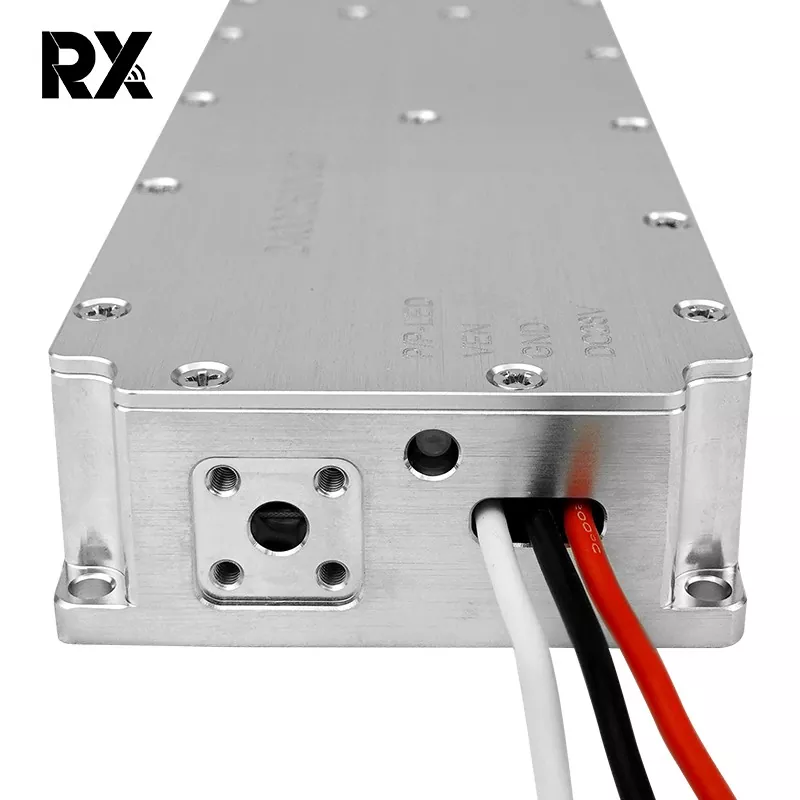

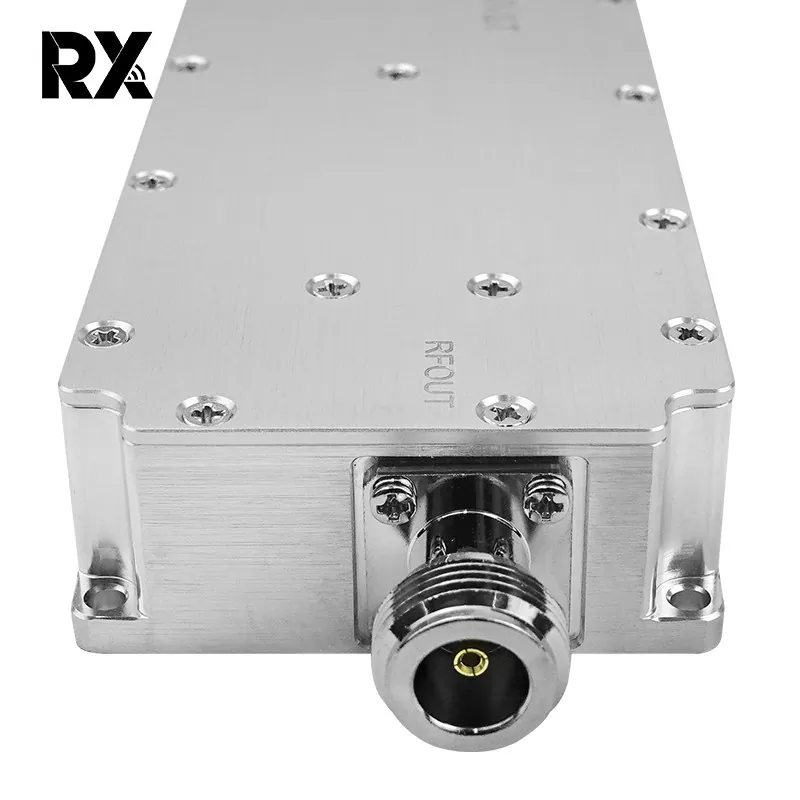

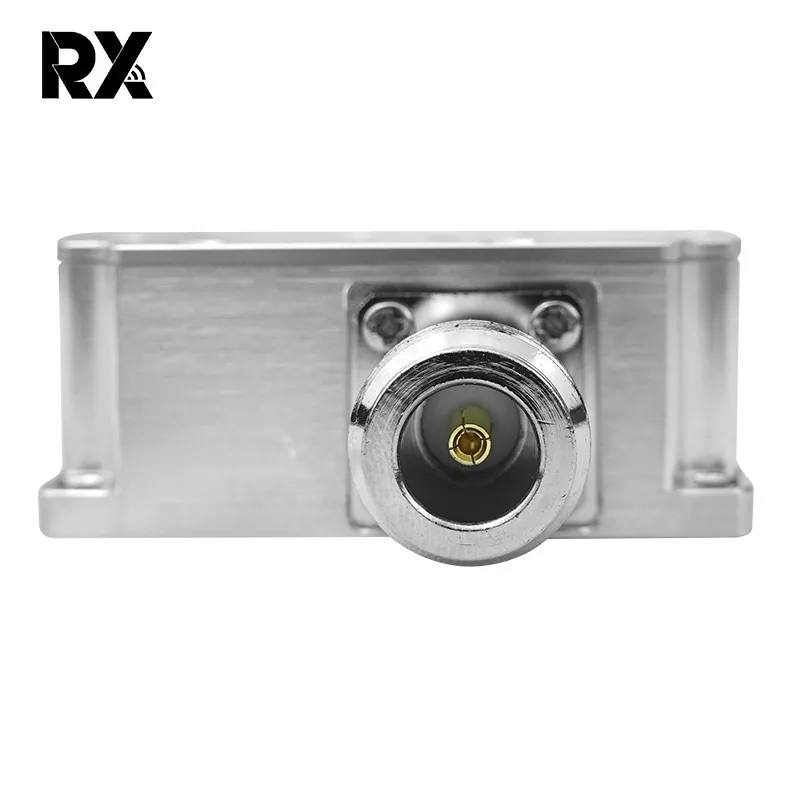

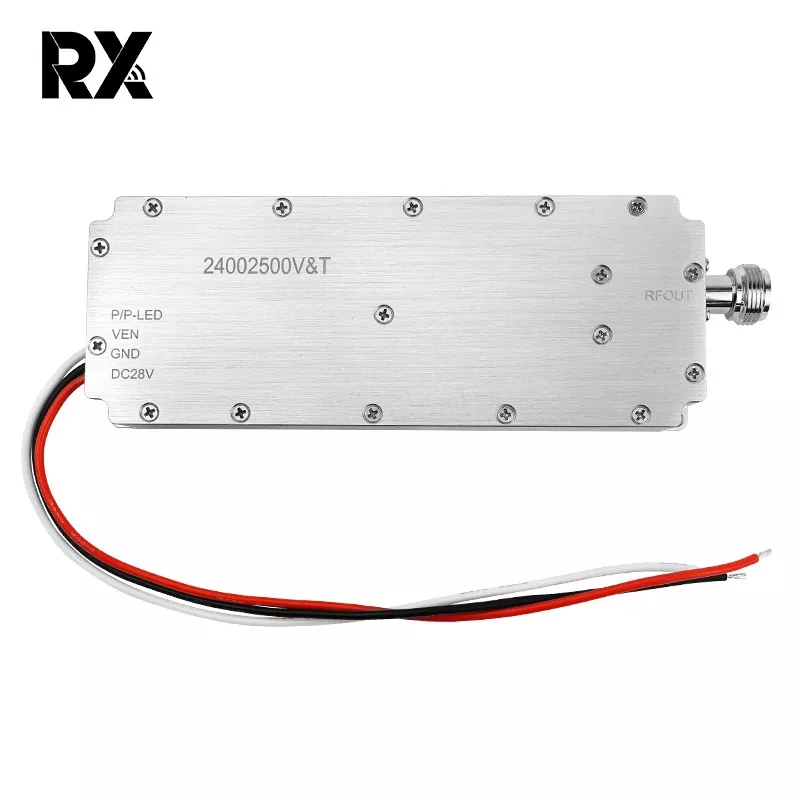

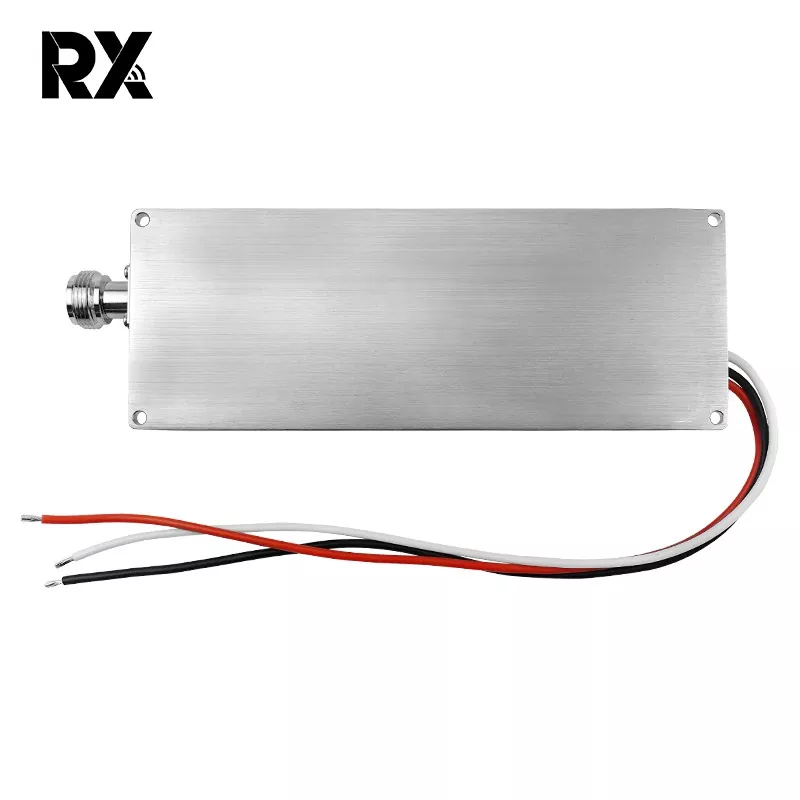

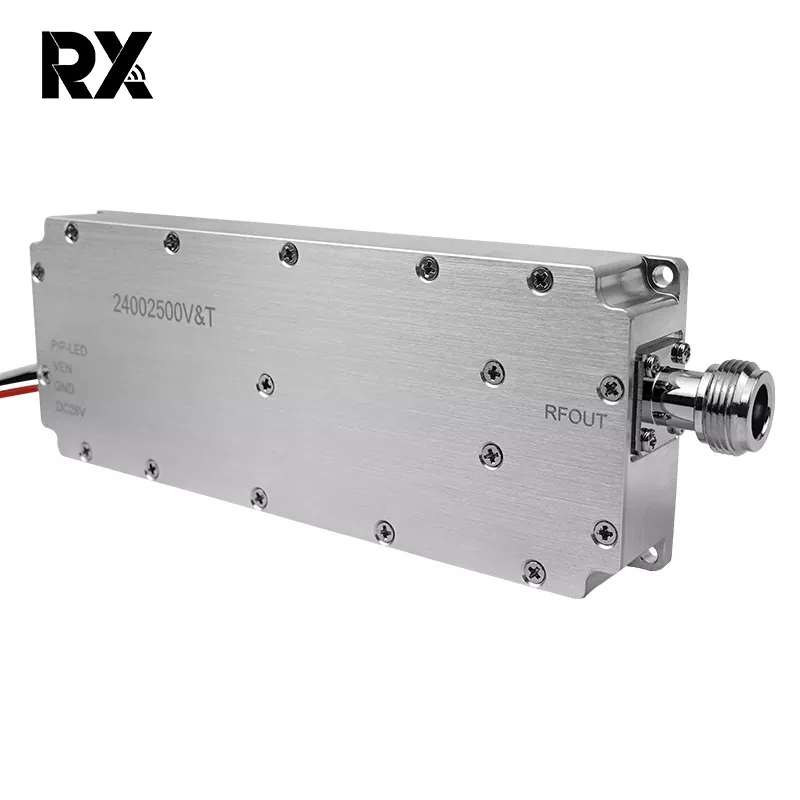

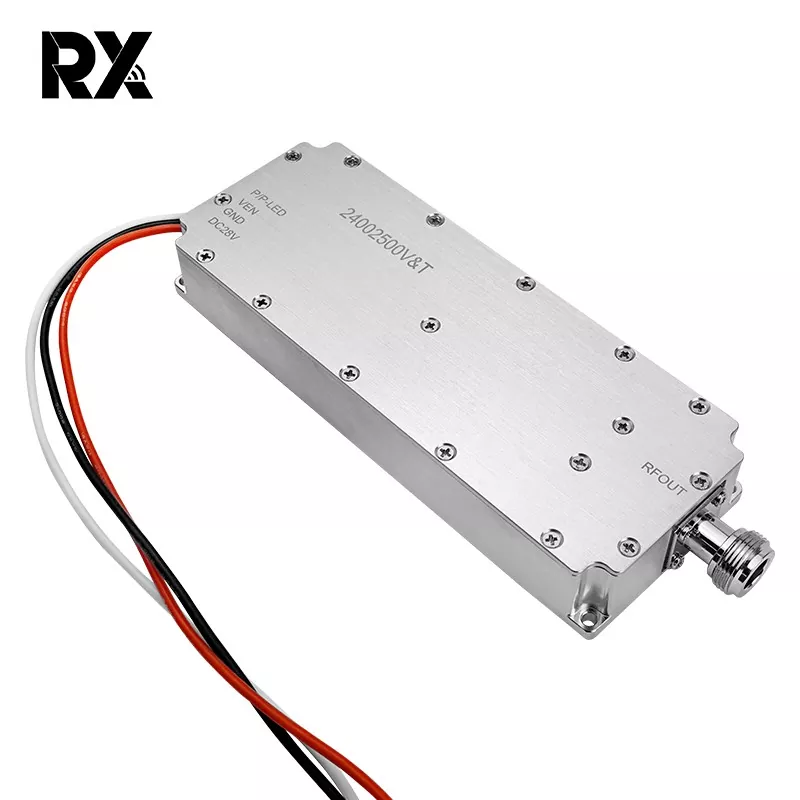

50w Signal Power Amplifier Module

This 50W signal power amplifier module, crafted by the manufacturer RX, is a powerhouse of high wattage and broad frequency range. It stands as a top-performing unit specifically engineered for boosting signal potency. With its capability to amplify the input signal up to a robust 50W output, this module significantly extends the reach and potency of signal coverage, thus enhancing transmission range effectively.

Send Inquiry

Product Description

The 50W signal power amplifier module is capable of delivering a consistent 50W of power, which ensures broader signal reach. This high-performance device is designed to boost the range and coverage of wireless signals, making it ideal for applications in mobile communication and wireless networking sectors. It serves to amplify signals originating from radio and television broadcasting stations, thereby enhancing their signal propagation and overall broadcast quality.

50w signal power amplifier module specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1535724	mm
13	Mount hole	170*78	mm
14	Weight	422	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK
