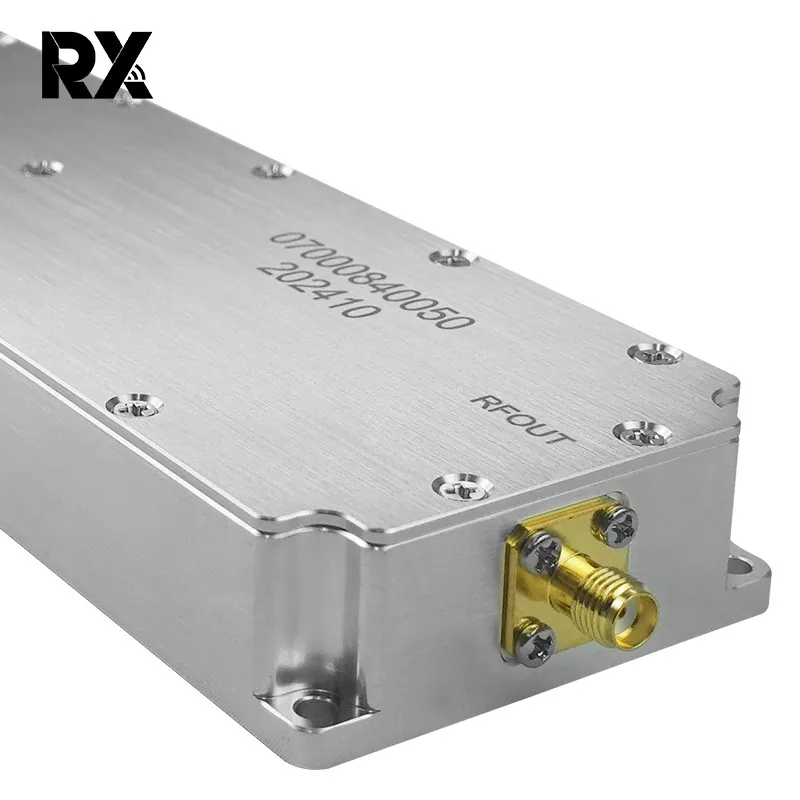

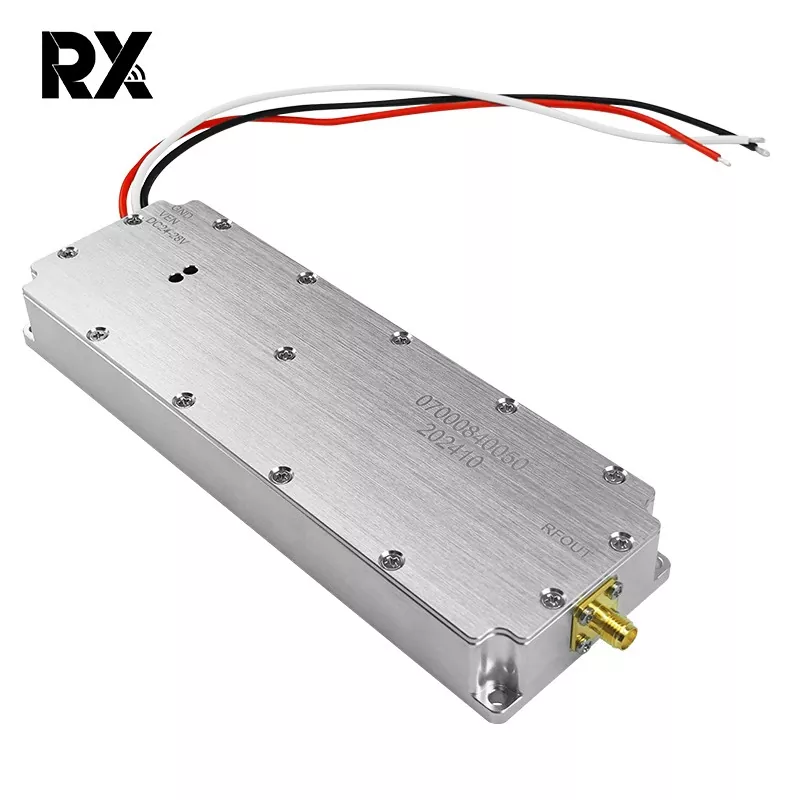

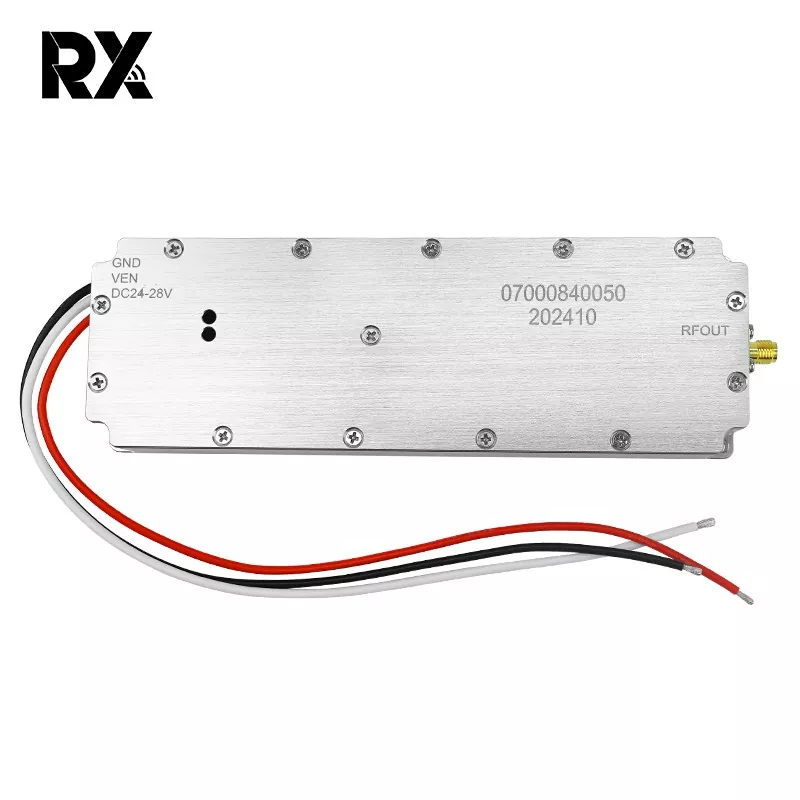

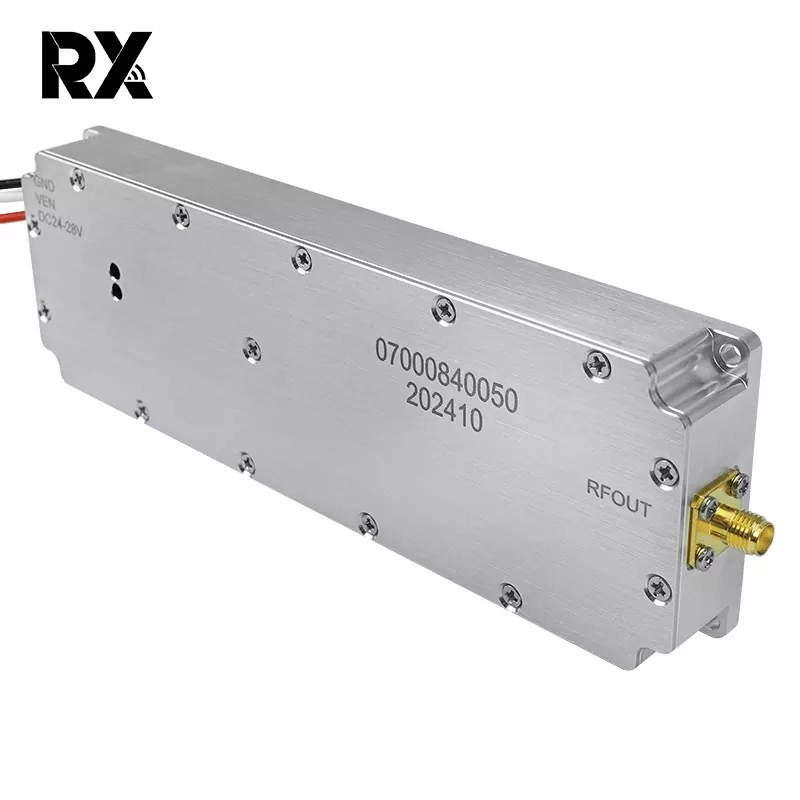

50W LoRa Digital Anti Drone Jammer Module with Circulator

This 50W LoRa Digital Anti Drone Jammer Module with Circulator is a powerful anti-drone jammer specifically designed for disrupting LoRa-based communication links of drones. It operates within the LoRa frequency range and is capable of emitting high-power interference signals to prevent unauthorized drones from functioning properly. With a powerful output power of 50W, this jammer module can generate strong interference signals that can overpower the LoRa signals of drones even at a considerable distance. RX is a professional module manufacturer and supplier in China. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

This 50W LoRa Digital Anti Drone Jammer Module with Circulator is designed to work within the LoRa frequency range, typically covering frequencies 700-1000MHz, you can customized frequency range you want. It Equipped with a circulator, which plays a crucial role in protecting the jammer module itself. The circulator directs the reflected power away from the internal components of the module,

Product specification

No.	Item	Data	Unit
1	Frequency	700-1000MHz	MHz
2	Test voltage	28	V
3	Current	3.7	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA/ Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1765420	mm
12	Mount hole	160*47	mm
13	Weight	435	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK
