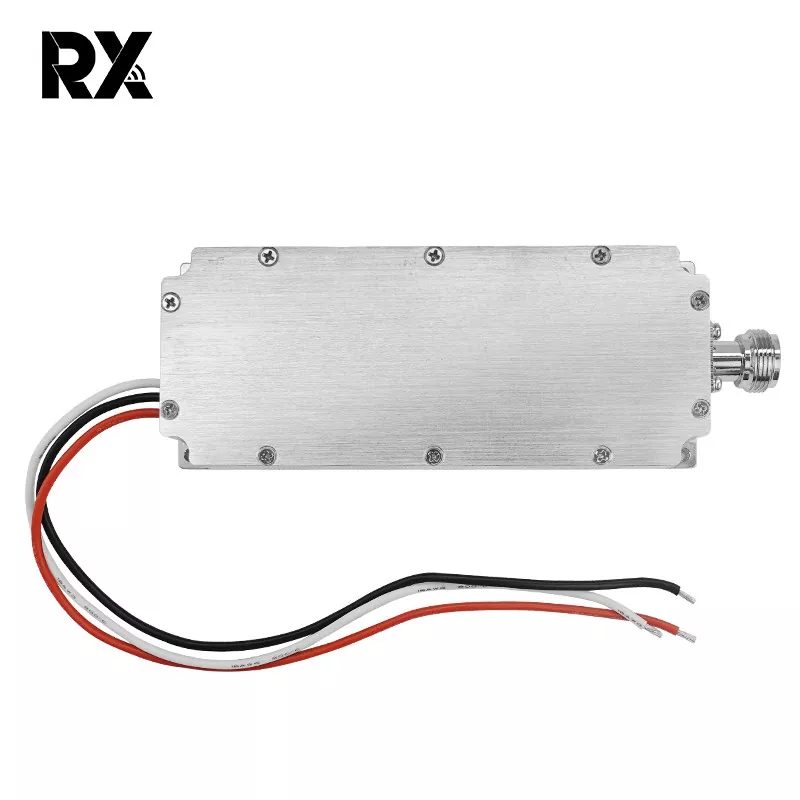

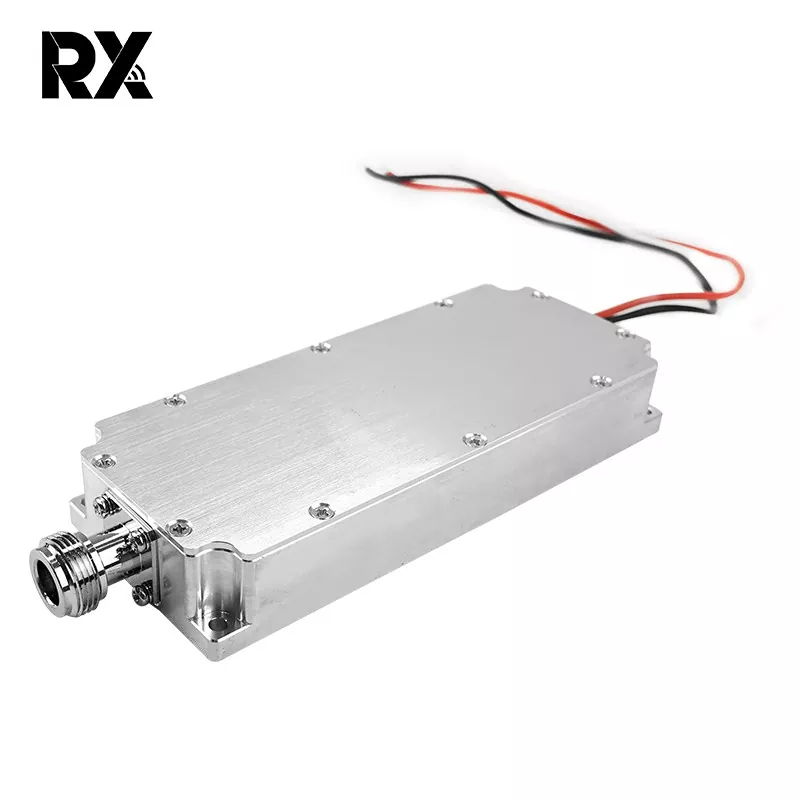

5.8GHz 50W High Power Signal Power Amplifier Module

Our 5.8GHz 50W high power signal power amplifier module is a high-performance RF device designed for applications that require powerful signal amplification capabilities. It can efficiently amplify the input 5.8GHz signal with an output power of up to 50W, providing a stable and reliable signal for your wireless communication system. It can be used to enhance the signal transmission power of wireless communication base stations, wireless bridges, wireless access points and other equipment, expand communication coverage and improve communication quality. The quality of the modules produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

This 5.8GHz 50W high power signal power amplifier module has a powerful output power of 50W, which can significantly enhance the signal transmission distance and coverage, and meet the needs of long-distance communication and signal coverage. It uses advanced circuit design and high-quality electronic components to have high power conversion efficiency. , capable of achieving powerful signal amplification function while consuming lower energy.

Product specification

No.	Item	Data	Unit
1	Frequency	5800	MHz
2	Test voltage	28	V
3	Current	4.2	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

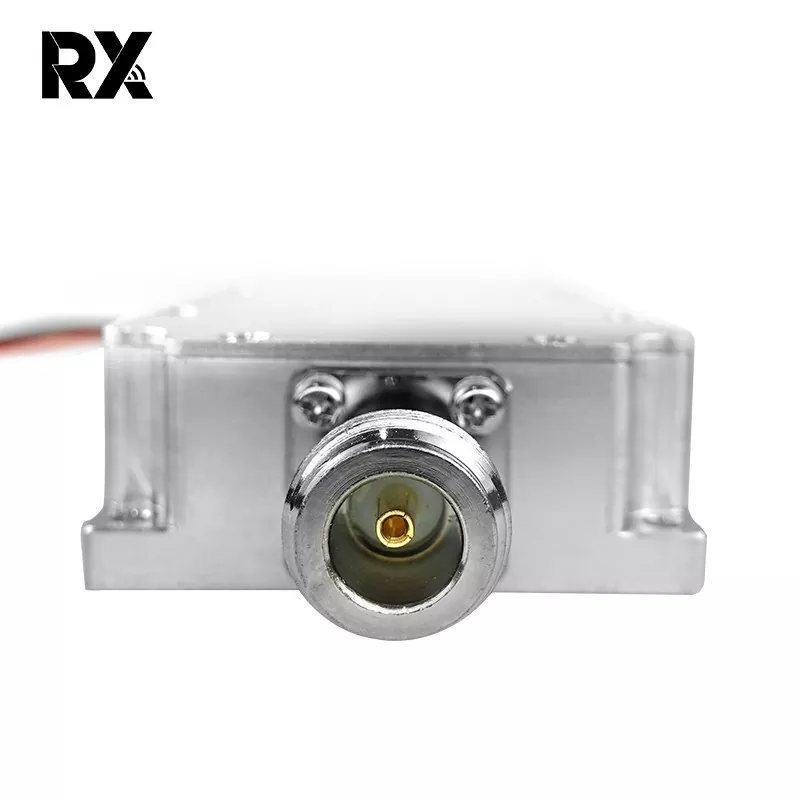

7	Connector	N / male
8	Output connector VSWR	≤1.30 (No power and VNA test)

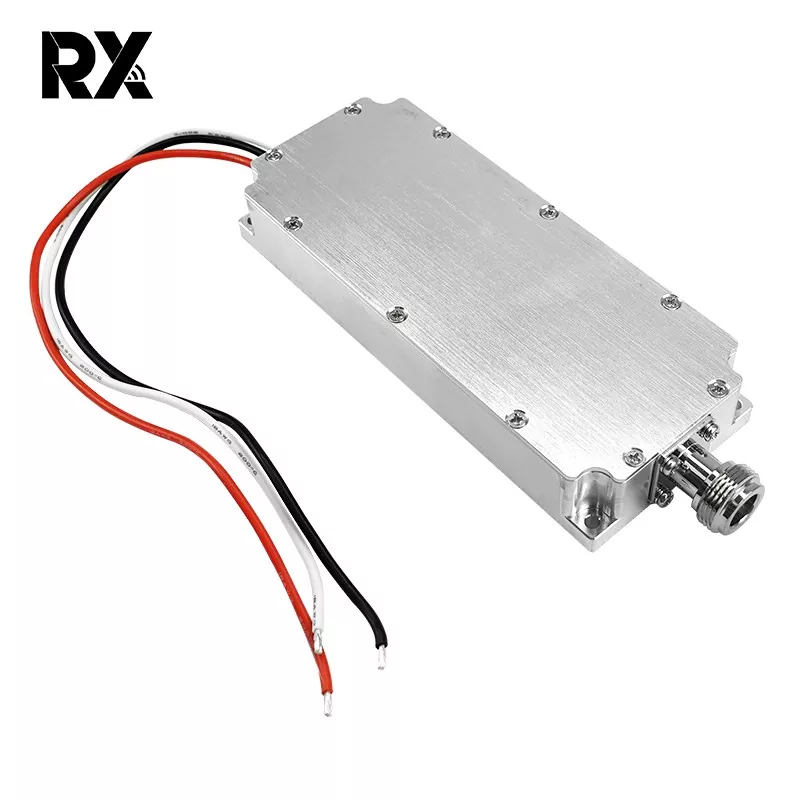

9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1505320mm	mm
12	Mount hole	48*126	mm
13	Weight	316	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK

Product features:

*Support customized frequency 400-6000MHz

* Using good quality chips and VCO

*Circulator build in from protection to jammer module

*Light weight and small size easy to carry

*The module support 24V-28V operate voltage
