5.8G 10W RF Transmitter For Anti Drone Countermeasures System

Shenzhen Rongxin Communication Co., Ltd is 5.8G 10W RF Transmitter For Anti Drone Countermeasures System manufacturers and suppliers in China who can wholesale drone signal jammers. We can provide professional service and better price for you. If you interested in anti drone related products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

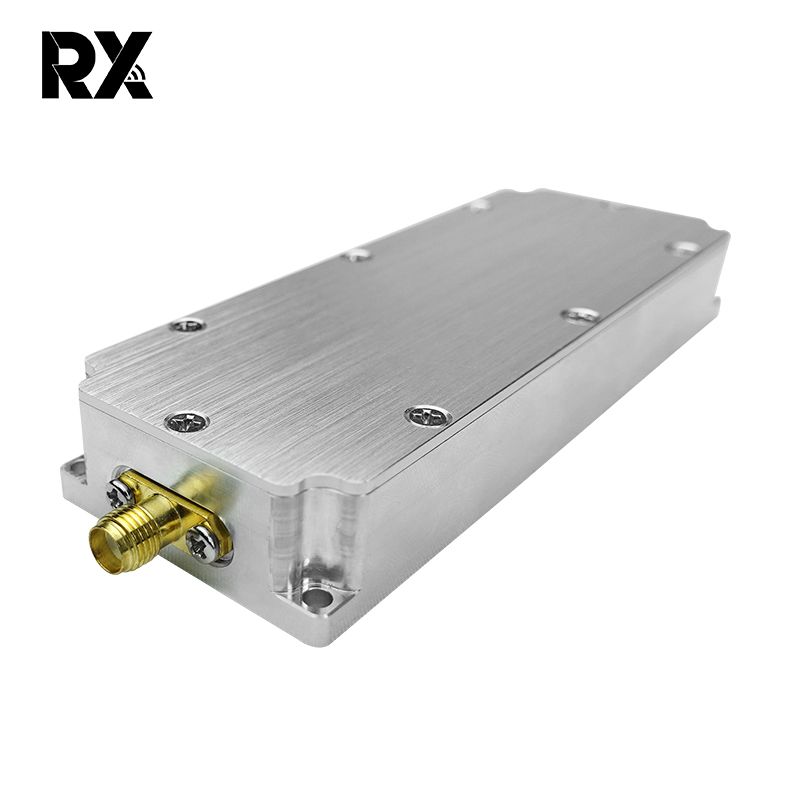

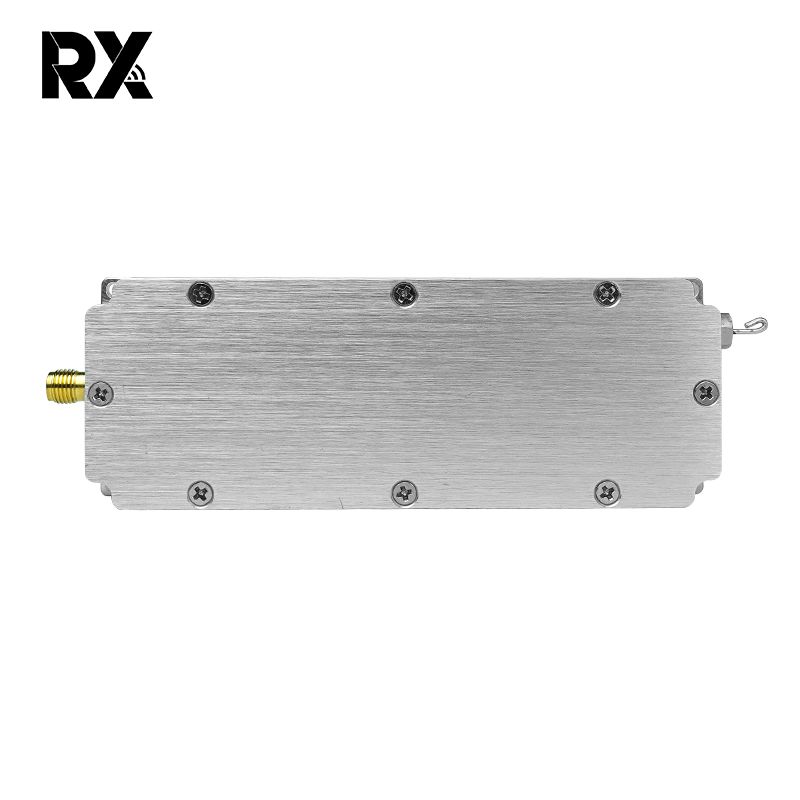

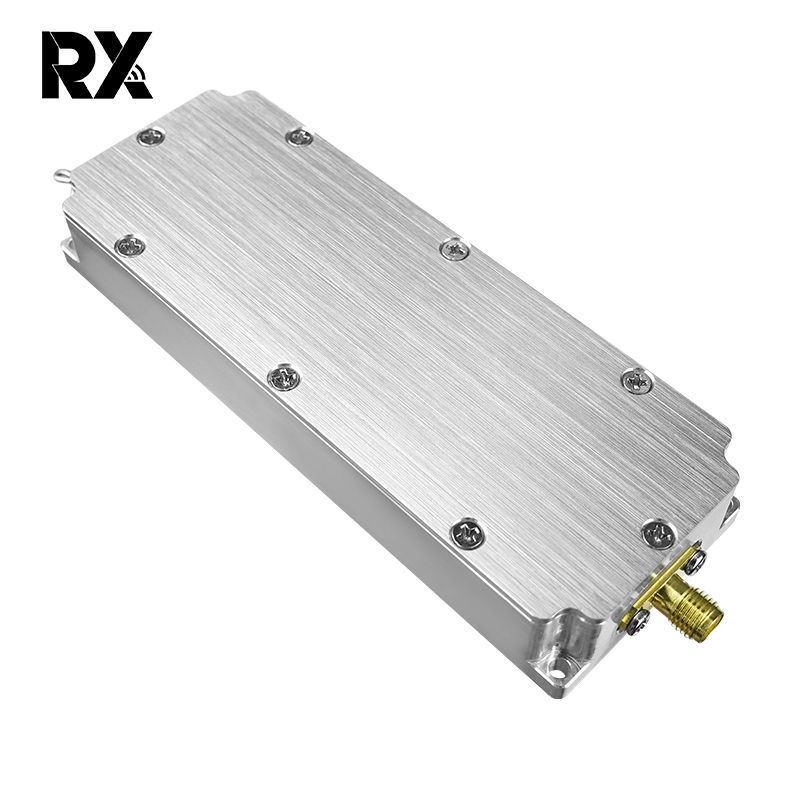

Rongxin 5.8G 10W RF Transmitter for anti drone countermeasures system is a wireless information security module dedicated to 5700-5900MHz signals. Rongxin 5.8G 10W RF Transmitter for anti drone countermeasures system has the advantages of high average output power , good in-band flatness, and small offset between upper and lower sidebands.

Regular type with signal source，if you want without signal source type also can offer（input signal 0-10dBm）

5.8G 10W RF Transmitter for anti drone countermeasures system Specification

Index	Numerical value			Unit	Note
Index	Min	Typical	Max	Unit	Note
Signal frequency	2400		2500	MHz
Output power	44.5	45	45.5	dBm
Band flatness		1		dB
Work current		3.1		A
Work voltage	28		32	V
Work efficiency		38		%
Thermally offset of upper band		8		MHz	Module surface temperature: 85°C
Thermally offset of bottom band		8		MHz	Module surface temperature: 85°C
Weight	0.22kg
Dimension	1316018 mm

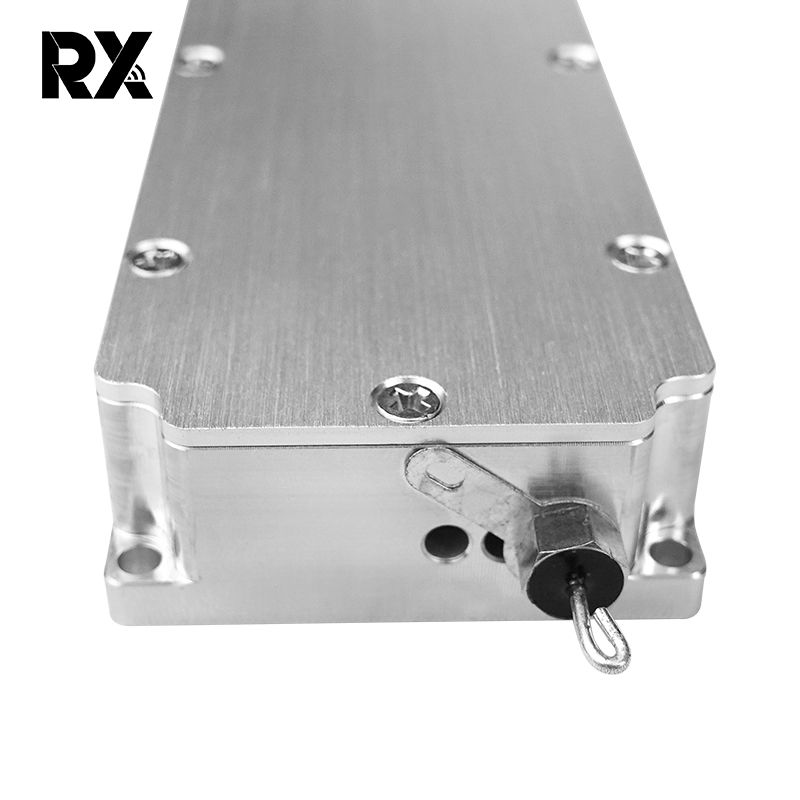

Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell. 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range.

5.8G 10W RF Transmitter for anti drone countermeasures system Precaution

Power supply needs to have 24V /5A

ØIf the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.

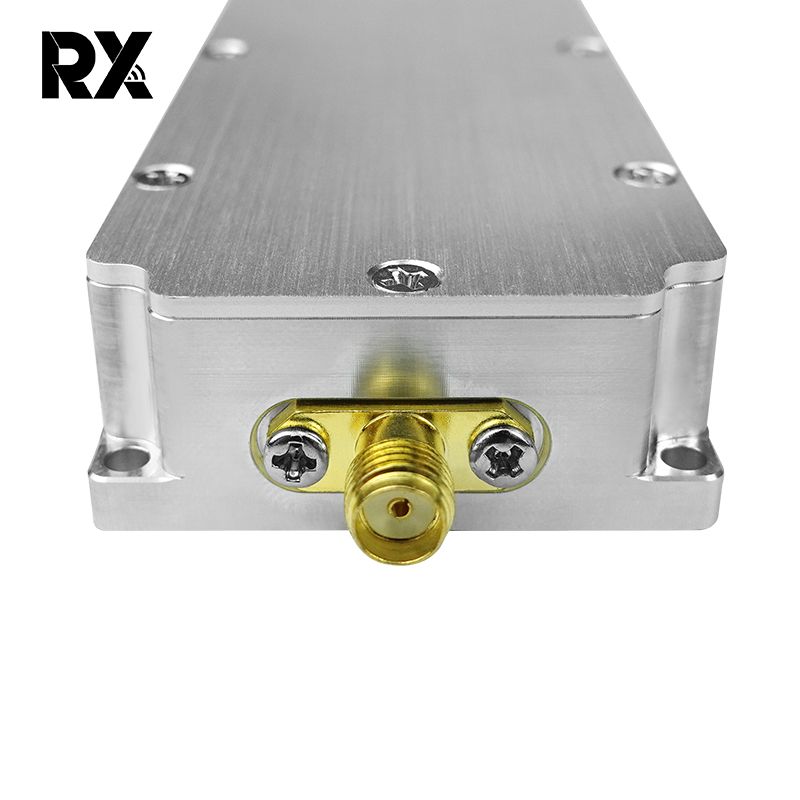

ØWhen connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
