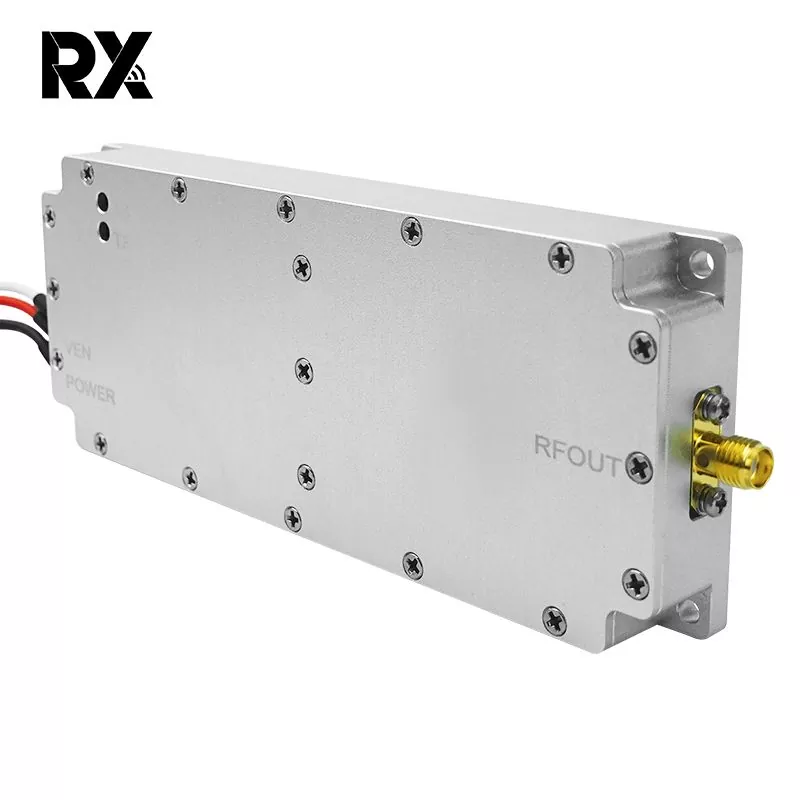

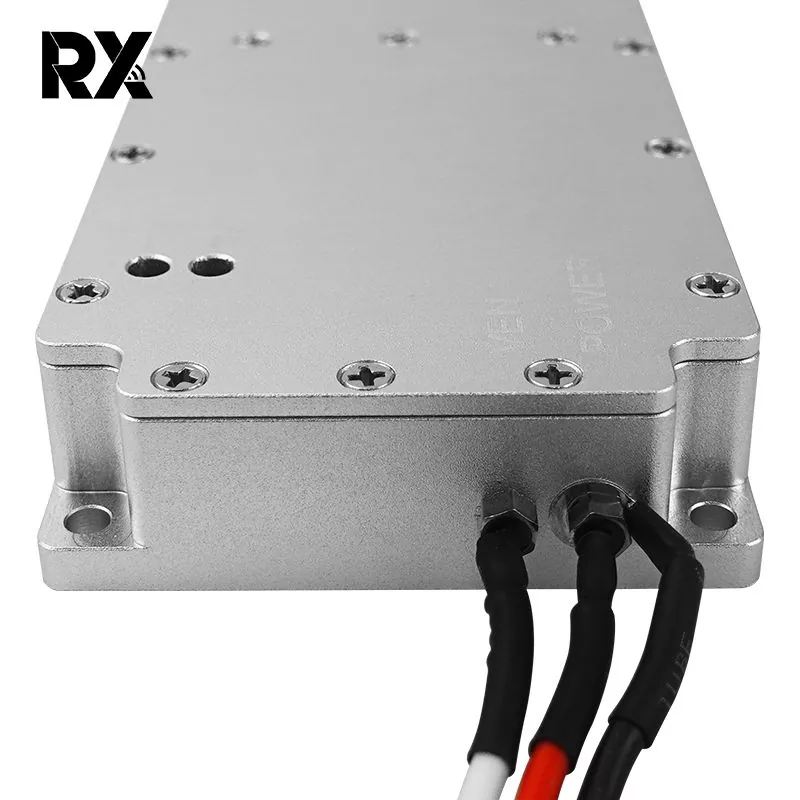

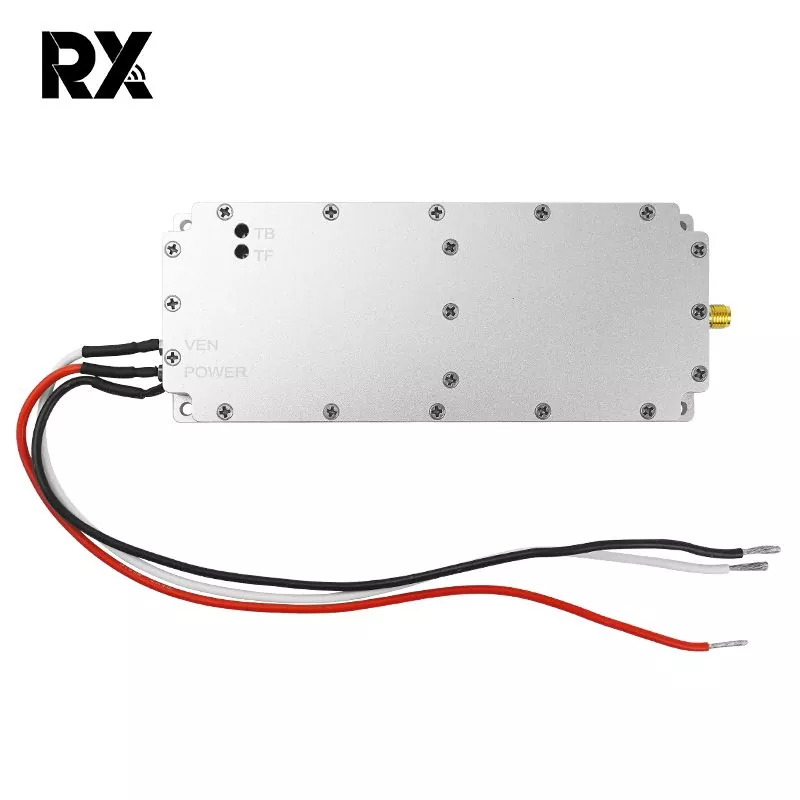

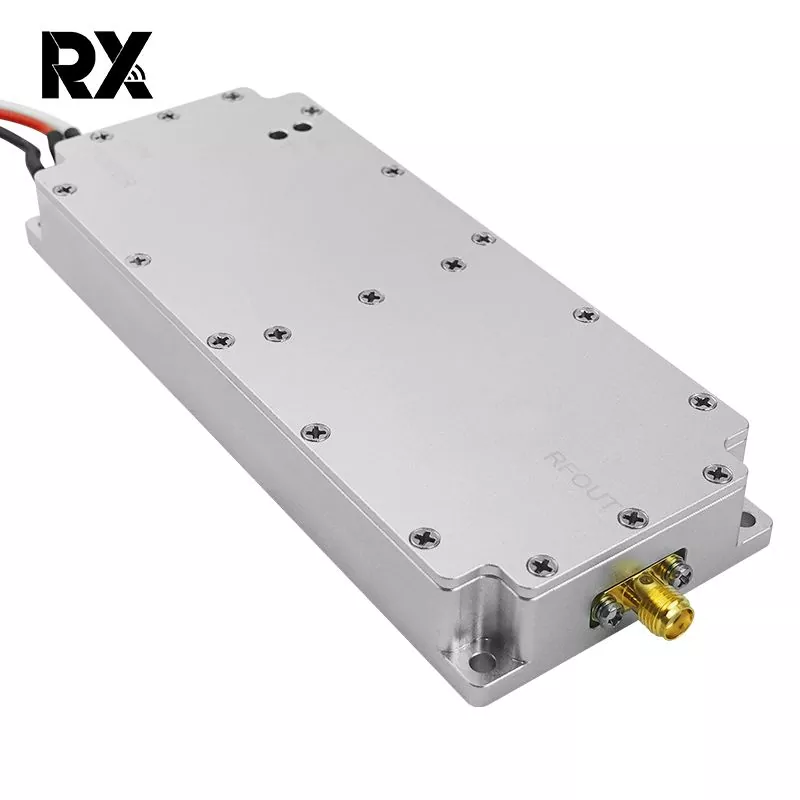

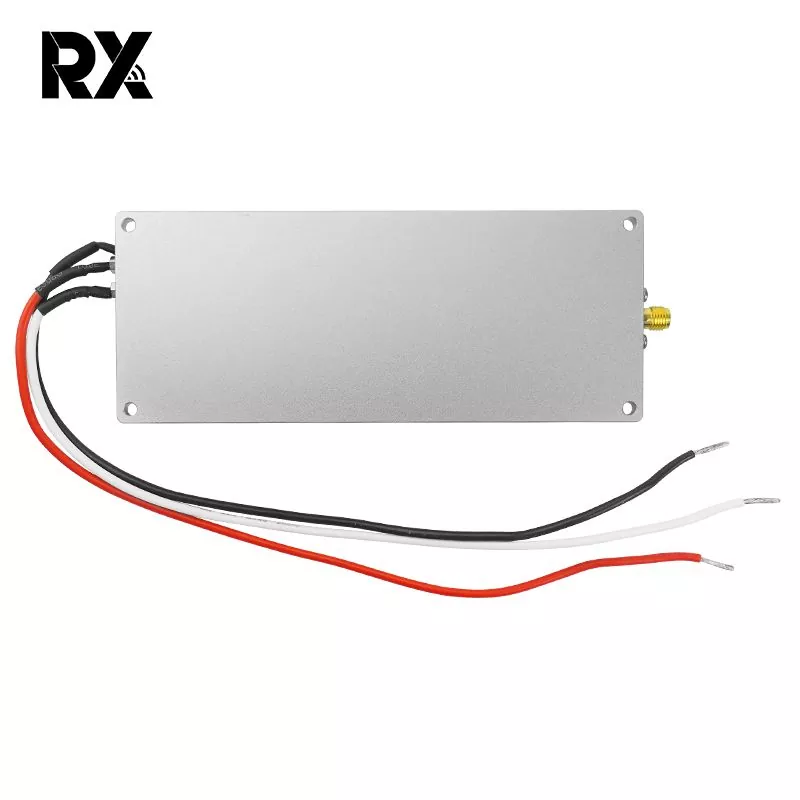

5.2 G 50w Signal Power Amplifier Module

The 5.2 G 50w Signal Power Amplifier Module is a specialized component designed to amplify radio frequency (RF) signals at the 5.2 GHz frequency. RX is a leading manufacturer, supplier, and exporter of these modules in China. Dedicated to attaining the best product quality, we have continuously satisfied many customers.

Send Inquiry

Product Description

The 5.2G 50W signal power amplifier module is designed to achieve optimal performance at a frequency of 5.2 GHz, providing consistent functionality and minimizing distortion. Generally, its input and output connections are set up to handle RF signals with a specific impedance in order to ensure proper impedance matching and reduce signal reflections.

5.2 G 50w signal power amplifier module specification

No.	Item	Data	Unit	Notes
1	Frequency	5.2	GHz
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	DC28	V
5	Max Gain	47	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5

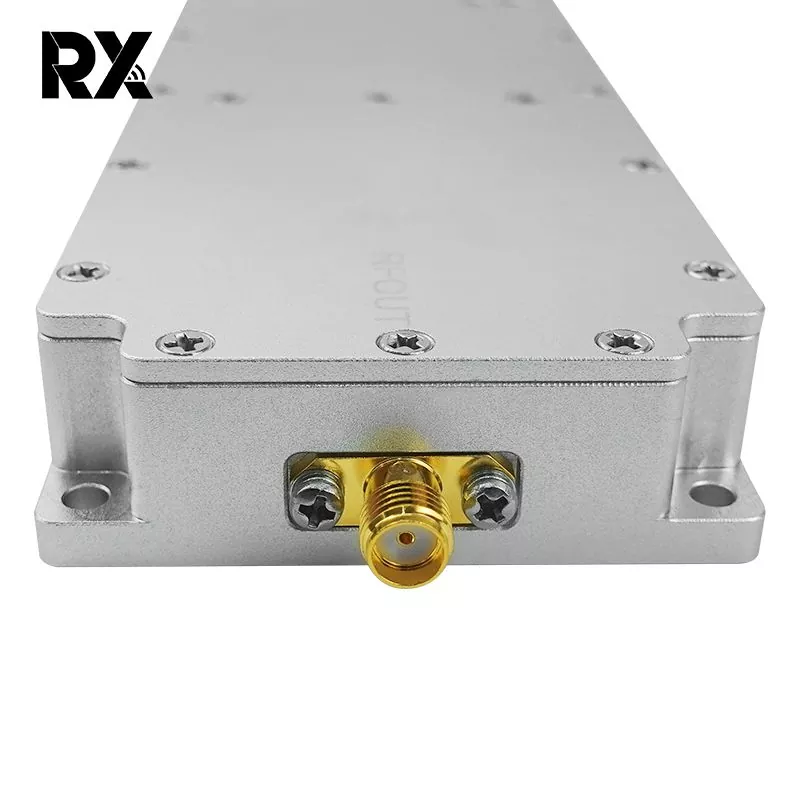

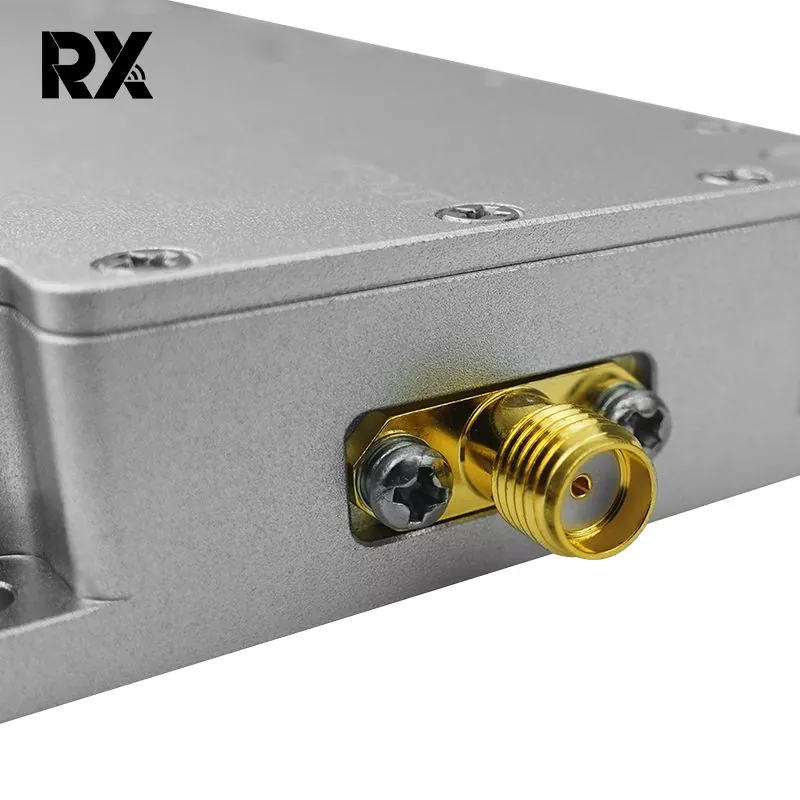

9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	1325317	mm
15	Weight	0.2	Kg
