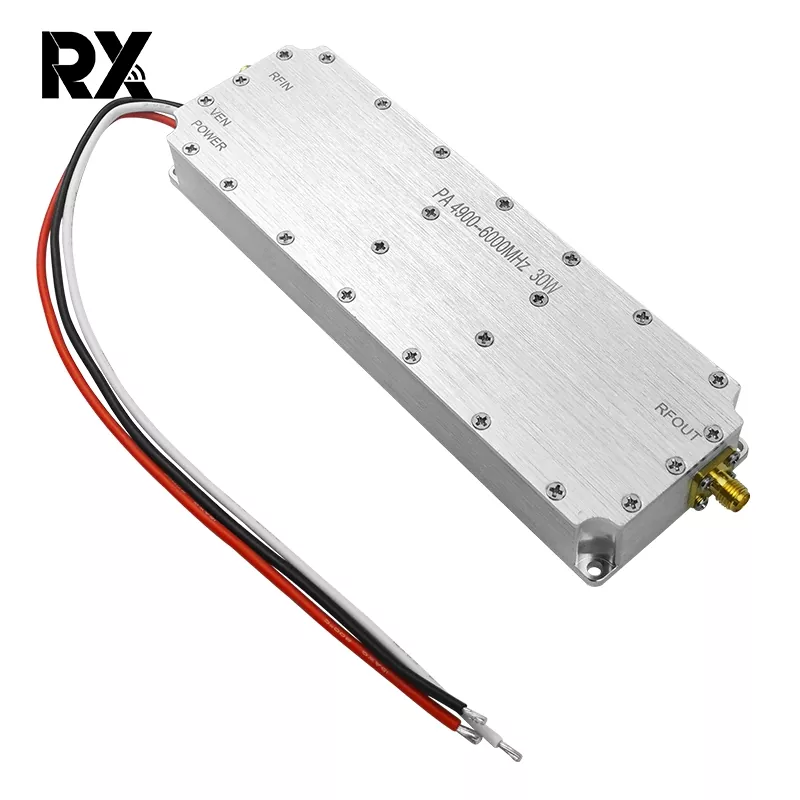

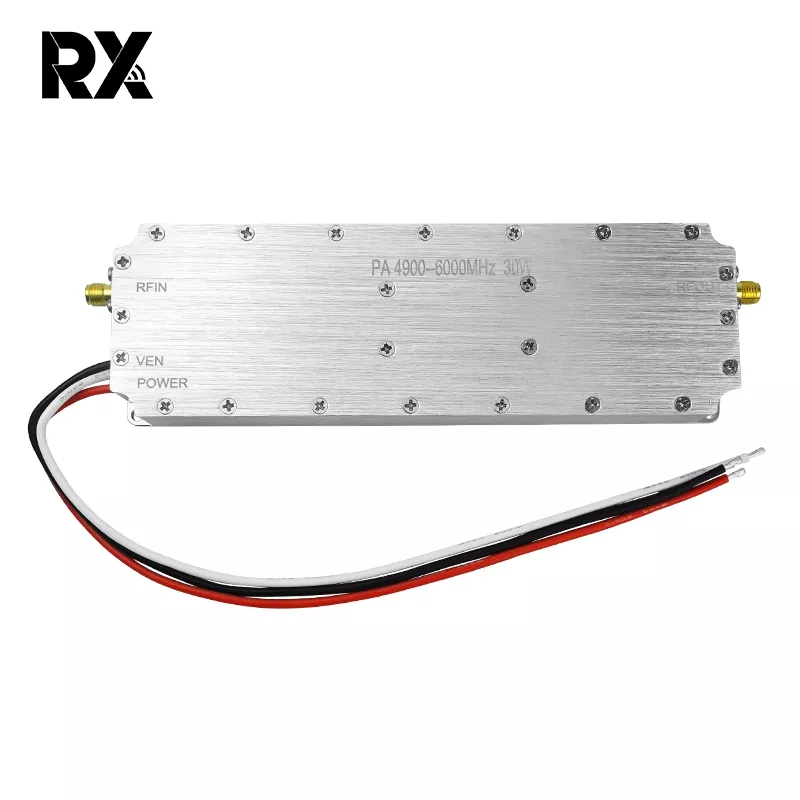

30W RF Amplifier Module for Signal Field

The Wide band 30W RF amplifier module for signal field is a high-performance and highly reliable signal-boosting tool. It features high power output, excellent performance, wide bandwidth coverage, stability and reliability, easy integration, and efficient heat dissipation for many different application scenarios. Whether in mobile communications, broadcasting and TV, wireless communications, or other fields, it can provide users with powerful signal enhancement services.

Send Inquiry

Product Description

Wide band 30W RF amplifier module for signal field can support a wide range of frequencies for many different signal types and application scenarios. It is easy to install it and apply to various wireless communication systems, such as Wi-Fi, Bluetooth, ZigBee, etc. It can improve the transmission distance and penetration ability of the signal, and enhance the stability and reliability of the system.

Wide band 30W RF amplifier module for signal field of Specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	30	W
5	Gain	43	dB
6	Output stability	1	dB

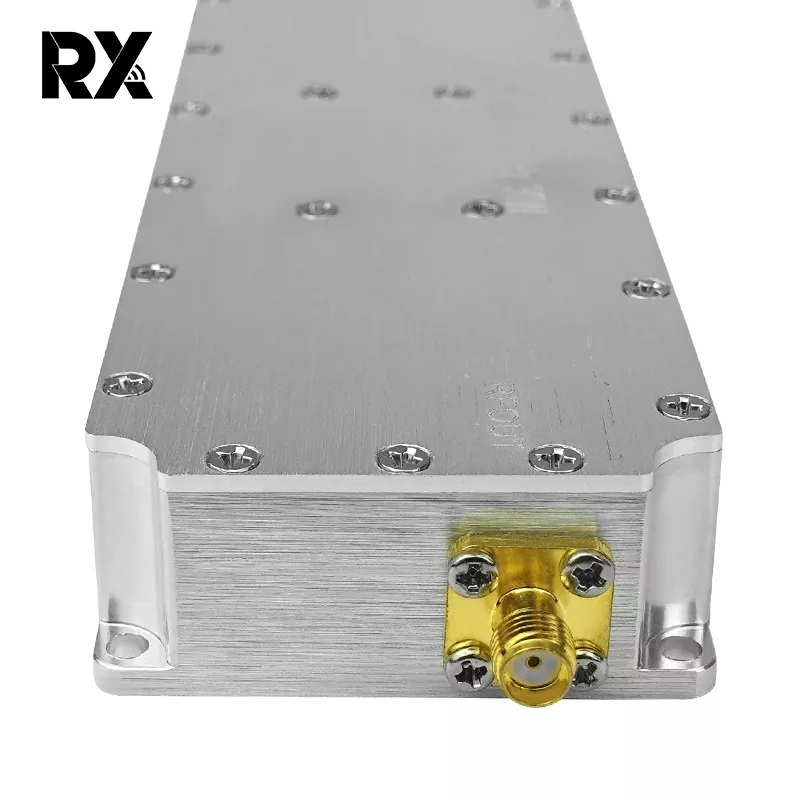

7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off

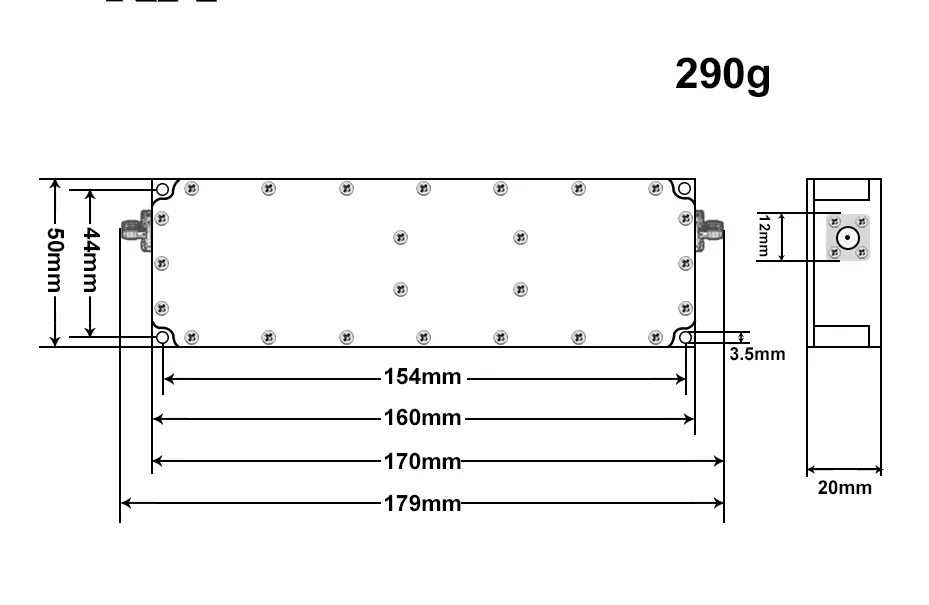

12	Out shell Size	1795020	mm
13	Mount hole	50*154	mm
14	Weight	290	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK
