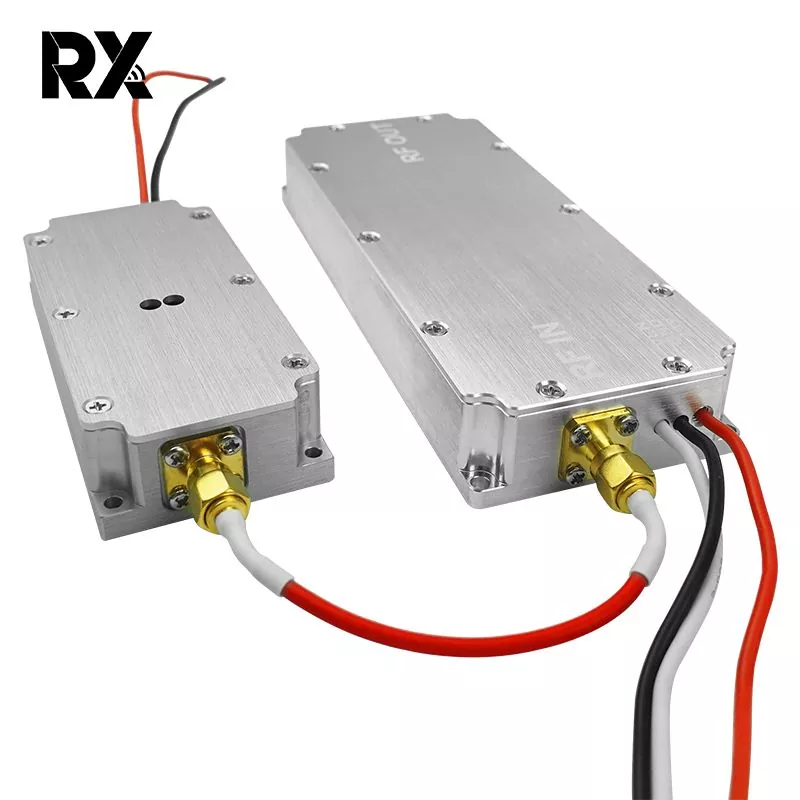

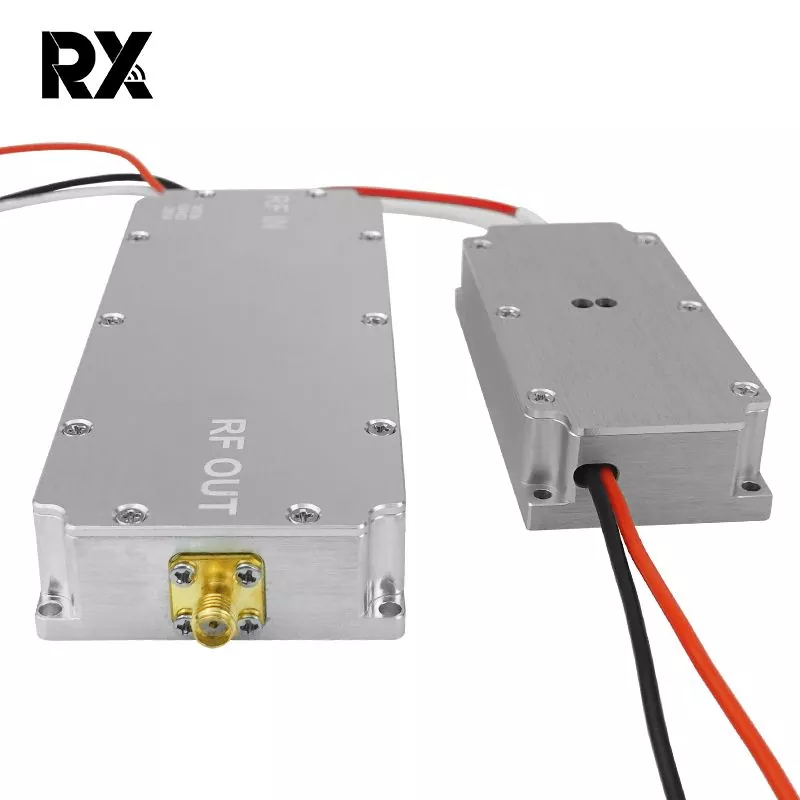

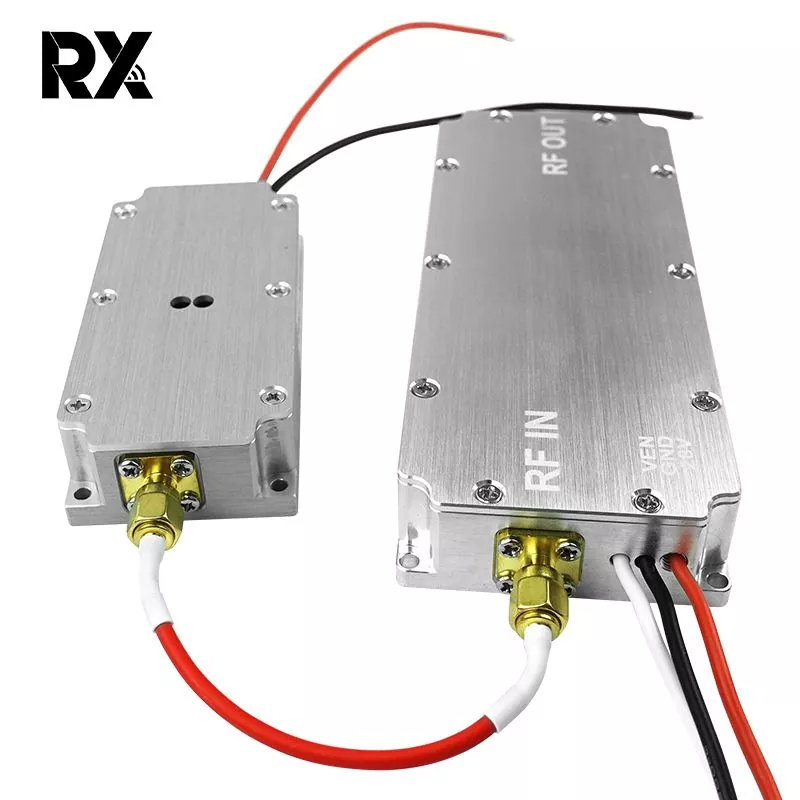

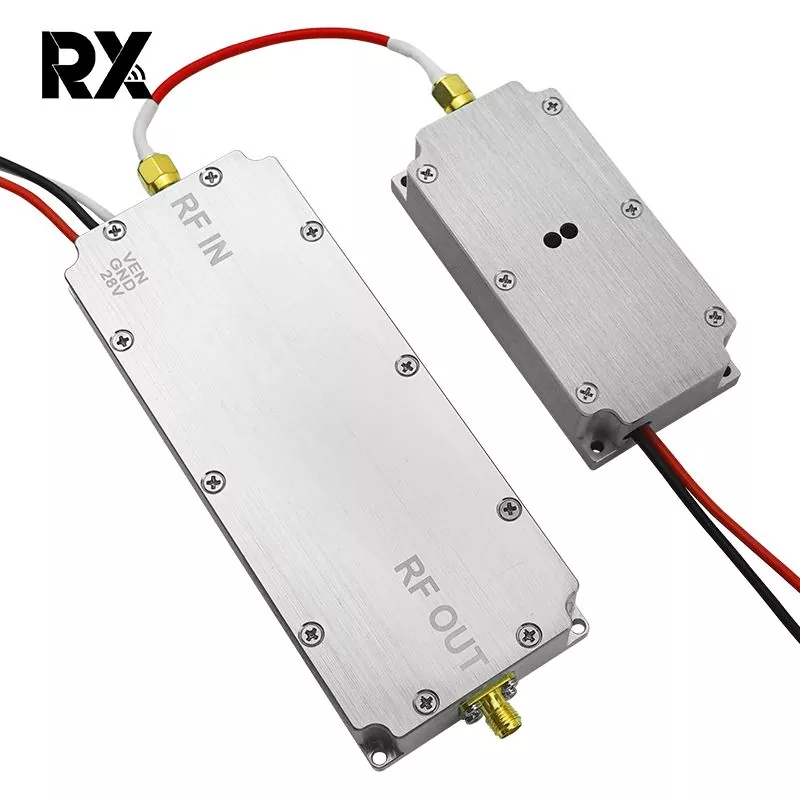

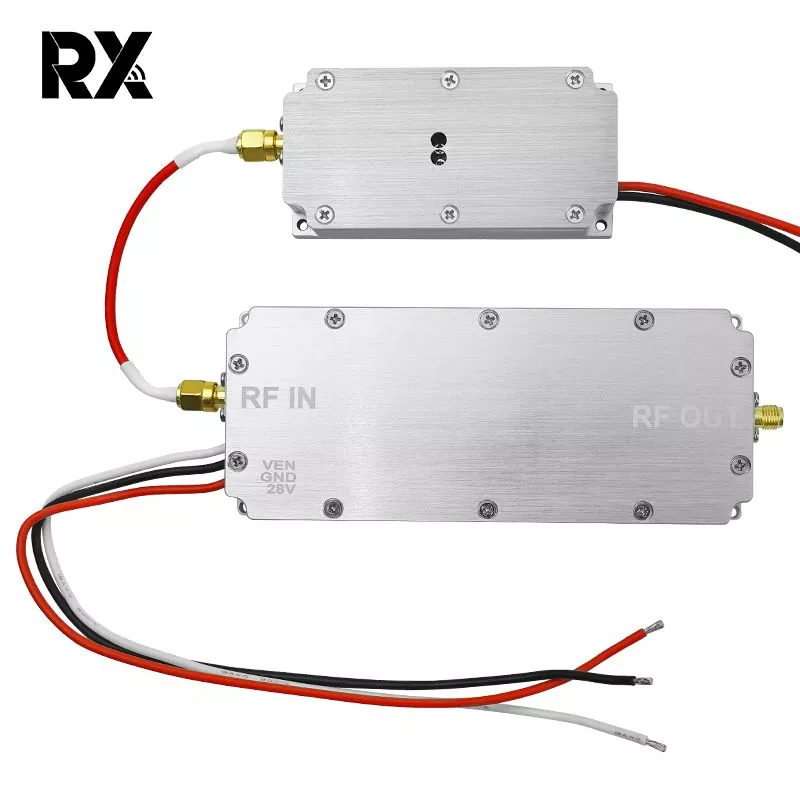

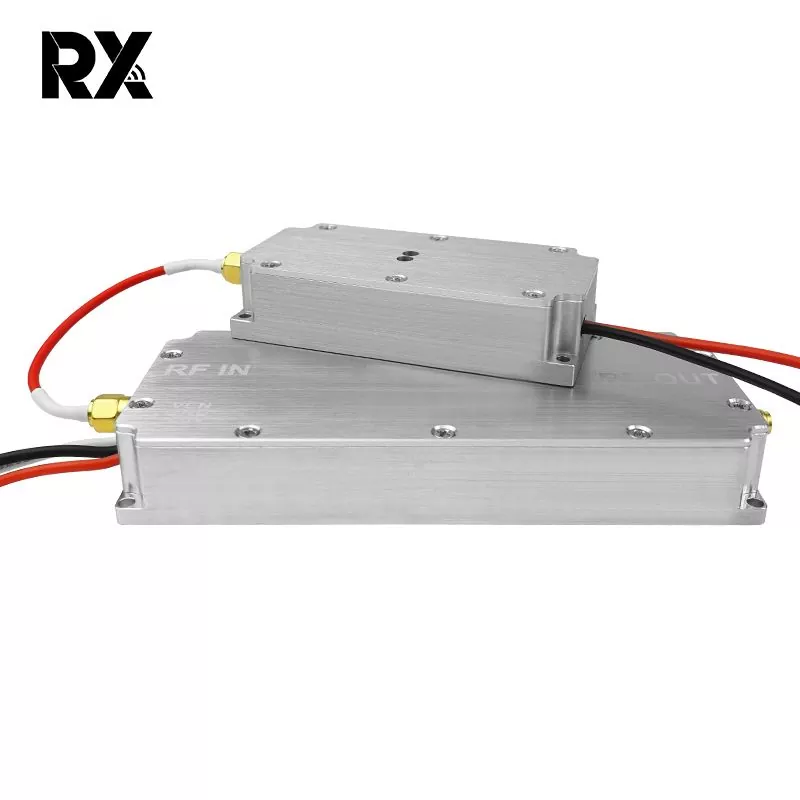

30W RF Power Amplifier Module

A high-performance 30W digital source RF power amplifier module is employed across various applications, encompassing telecommunications, radar technology, and RF evaluation processes. This module boasts a output power capacity of 30 watts, ensuring powerful signal amplification. RX, a professional producer, provider, and exporter of such modules from China, relentlessly strives for excellence in product quality, thereby earning the satisfaction of numerous clients worldwide.

Send Inquiry

Product Description

The 30W digital source RF power amplifier module has been engineered to function effectively within specific environmental parameters, including temperature and humidity levels, ensuring reliable performance across diverse conditions. It caters to a wide frequency spectrum, enabling compatibility with a variety of RF signals. Additionally, its compact and streamlined design facilitates seamless integration into multiple systems, enhancing flexibility and convenience.

30W digital source RF power amplifier module specification

No.	Item	Data	Unit	Notes
1	Frequency	400-5800MHz	MHZ	Customized
2	Work Temperature	-40~+85	℃
3	Max Output Power	30	W
4	Work Voltage	24-28	V
5	Max Gain	45	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75	℃
14	Size	1395319	mm
15	Weight	0.268	Kg
