40W 1.6G Anti Drone Module UAV Anti RF Module

With years of experience in production anti drone products, Shenzhen Rongxin Communication Co., Ltd can supply a wide range of anti drone devices. High quality 40W 1.6G anti drone module UAV anti RF module can meet many applications, if you need, please get our online timely service about drone signal jammers. In addition to the product list below, you can also customize your own unique frequency and power according to your specific needs.

Send Inquiry

Product Description

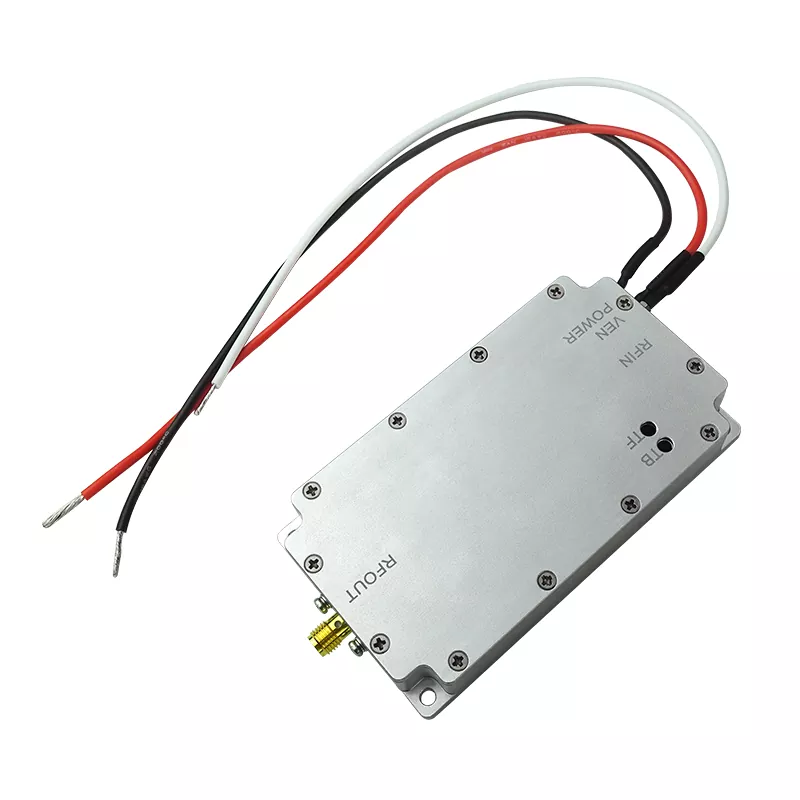

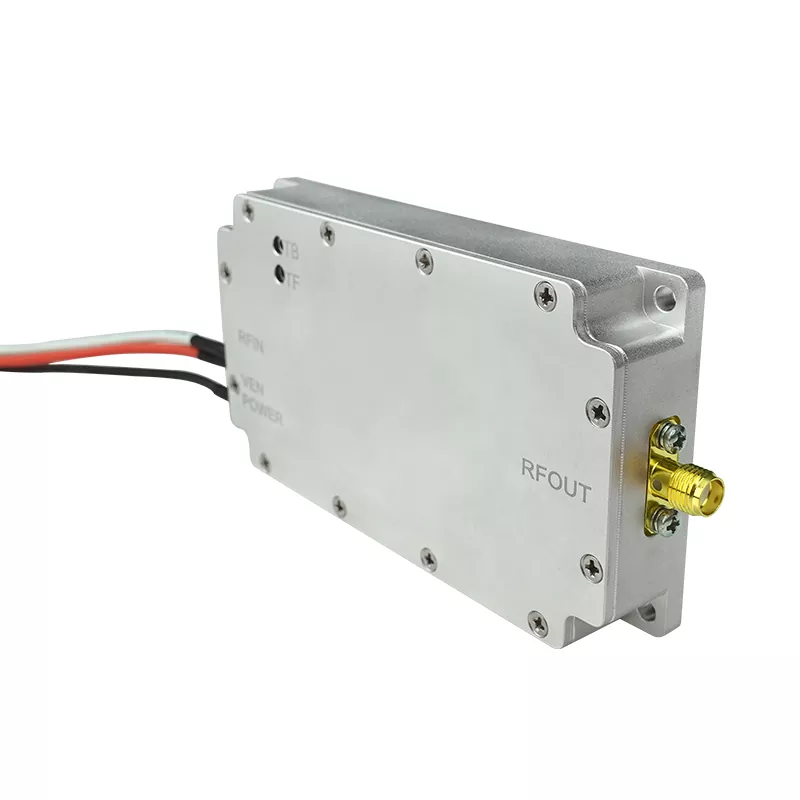

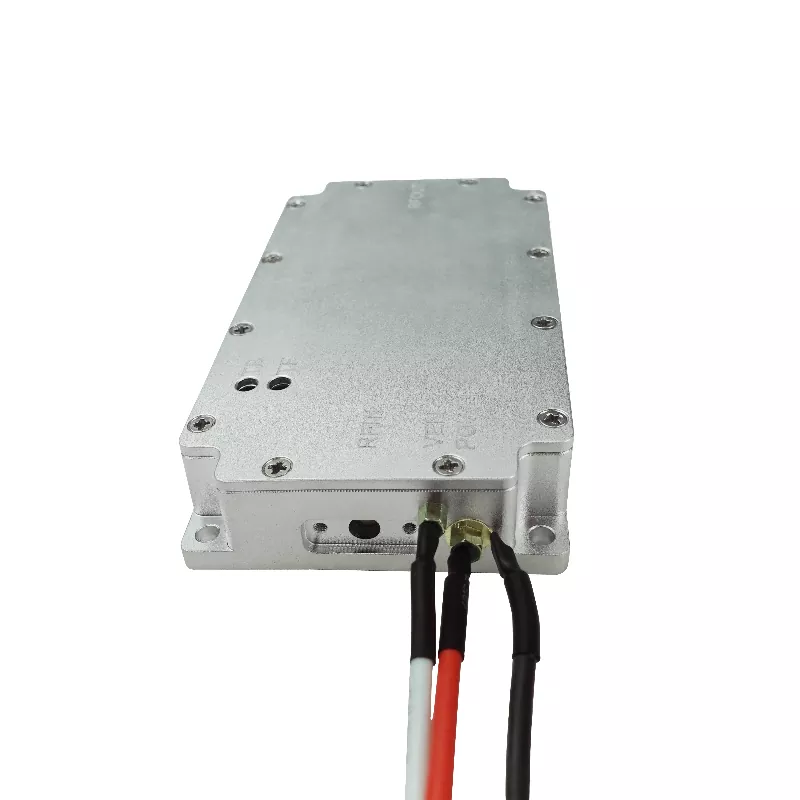

Rongxin 40W 1.6G Anti Drone Module UAV Anti RF Module Introduction

This high quality Rongxin 40W 1.6G anti drone module UAV anti RF module is the latest product with a 1-year warranty. Rongxin 40W 1.6G anti drone module UAV anti RF module is a wireless information security module dedicated to 1525~1650MHz signals. This module has the advantages of high average output power (40W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands.

Rongxin 40W 1.6G Anti Drone Module UAV Anti RF Module Specification

No.	Item	Data	Unit	Notes
1	Frequency	1525~1650	MHZ
2	Work Temperature	-10~+75	℃
3	Output Power	40	W
4	Work Voltage	DC24	V
5	Max Gain	46±1.5	dB
6	Flatness	±3	dB
7	Max Current	3.2	A
8	Output VSWR	≤1.5
9	Output Connector	SMA		customized
10	Power Amplifier Efficiency	41.6		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	1375818	mm
15	Weight	0.25	Kg

Rongxin 40W 1.6G Anti Drone Module UAV Anti RF Module Precautions

Power supply needs to have 28V /5A

If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.

When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
