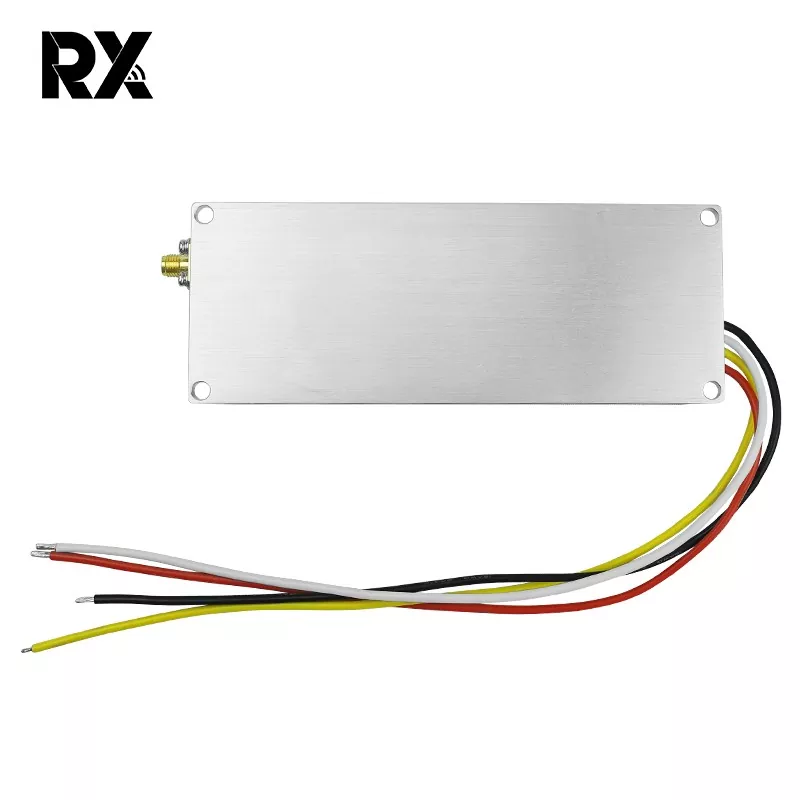

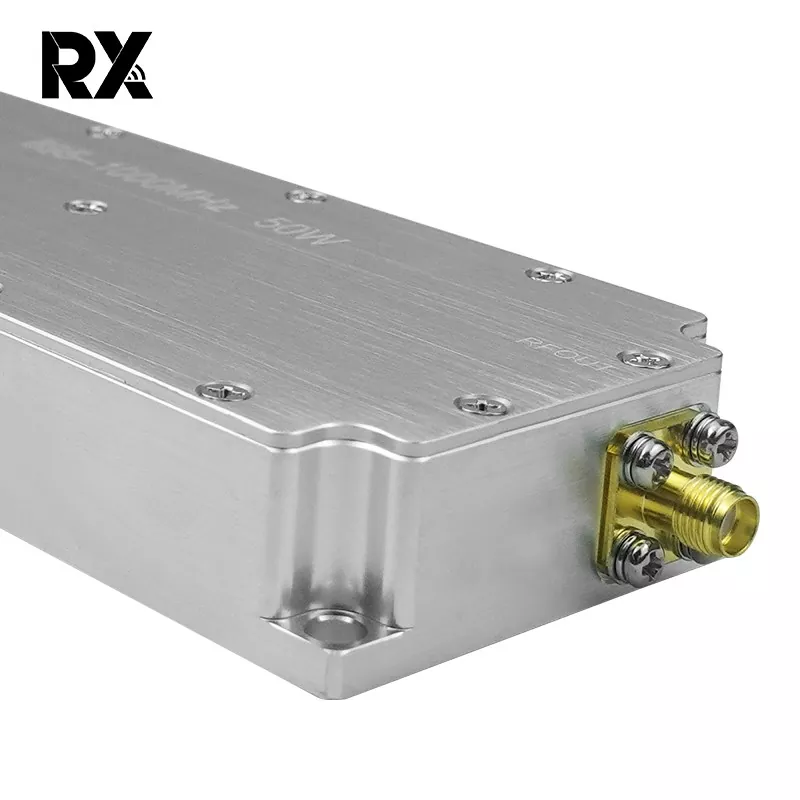

400-5800MHz 50w Jammer Module With Temp Protection

This 400-5800MHz 50w jammer module with temp protection is a high-performance full-band jammer module. It can cover the ultra-wide frequency band of 400–5800 MHz with a powerful power of 50W and a temperature protection function. It is widely used in security protection, confidentiality places, examination rooms, and other occasions where signal jamming is required. RX, known for its manufacturing prowess, ensures the superior quality of these modules. Their proven performance and effectiveness have earned them a strong reputation among users.

Send Inquiry

Product Description

This 400-5800MHz 50w jammer module with temp protection is small and compact, facilitating easy installation and integration into different systems. It can adopts sturdy and durable metal shell has good heat dissipation and protection capabilities, and can adapt to various harsh environments. The optimized heat dissipation structure ensures that the module can maintain a stable temperature under high-power working conditions, thereby improving the reliability of the equipment.

400-5800MHz 50w jammer module with temp protection specification

No.	Item	Data	Unit
1	Frequency	400-5800(Customized)	MHz
2	Test voltage	28	V
3	Current	2.8	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire+yellow protect
10	Enable Control	High ON Low Off
11	Out shell Size	1405320	mm
12	Mount hole	133*46	mm
13	Weight	274	g
14	Work Temperature	-40~+125	℃
15	Out shell material	Aluminum
16	Vibration need	Car load ok
