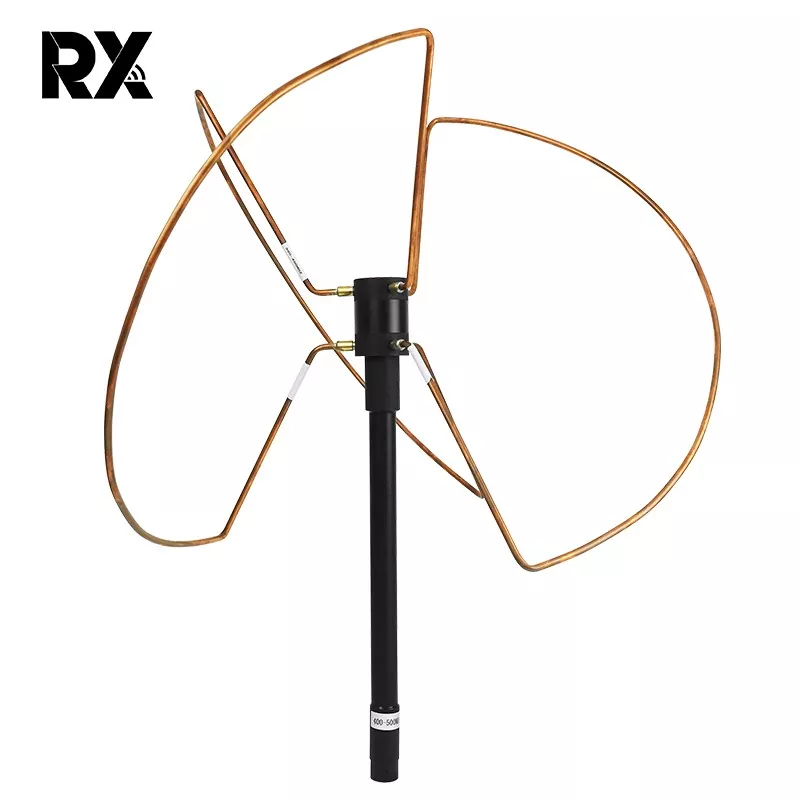

300-400MHz Fiberglass Four-leaf Clover Antenna UAV 300W

This 300-400MHz Fiberglass Four-leaf Clover Antenna UAV 300W is a high-performance antenna designed specifically for UAV applications, with an operating frequency range of 300-400MHz, a high power handling capacity of 300W, and a unique design of fiberglass and a four-leaf clover shape. It is designed to meet the needs of UAV for long-distance and stable communication in a specific frequency band, while taking into account the durability of the antenna and good signal transmission performance. The quality of the antennas produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

This 300-400MHz Fiberglass Four-leaf Clover Antenna UAV 300W has a power capacity of up to 300 watts, which allows it to provide strong power support when transmitting signals. For drones, high-power antennas can significantly enhance signal transmission distance and penetration capabilities. The main body of the antenna is made of fiberglass material. Fiberglass has many advantages. First of all, it is lighter in weight. For a weight-sensitive device such as a drone, it will not add too much load to the drone, which is beneficial to maintaining the flight performance and battery life of the drone.

Product specification

Electrical Specifications
Frequency Range (MHz)	300-400MHz
Bandwidth (MHz)	250
Input Impendence (Ω)	50
V.S.W.R	≤1.5
Gain (dBi)	3.0/5.0
Polarization Type	Vertical
Lightning Protection	DC ground
Power Capacity (w)	300W
Mechanical Specifications
Antenna Length (mm)	93*19mm
Radiator	copper
Connect Type	SMA/RP SMA/TNC/BNC/N
Working Temp(℃)	-40~60
Storage Temperature(℃)	-20~40
Radome Color	Black
Material	Fiberglass
Weight (g)	61g

Product feature

1. high strength-to-weight ratio

2. Superior Omnidirectional Performance

3. Low Signal Loss

4. Strong Anti-Interference Ability

5. High Gain for Long-Range Communication

Application scenario

1. Outdoor AP

2. Communication base

3. wireless module

4. Wireless radio station
