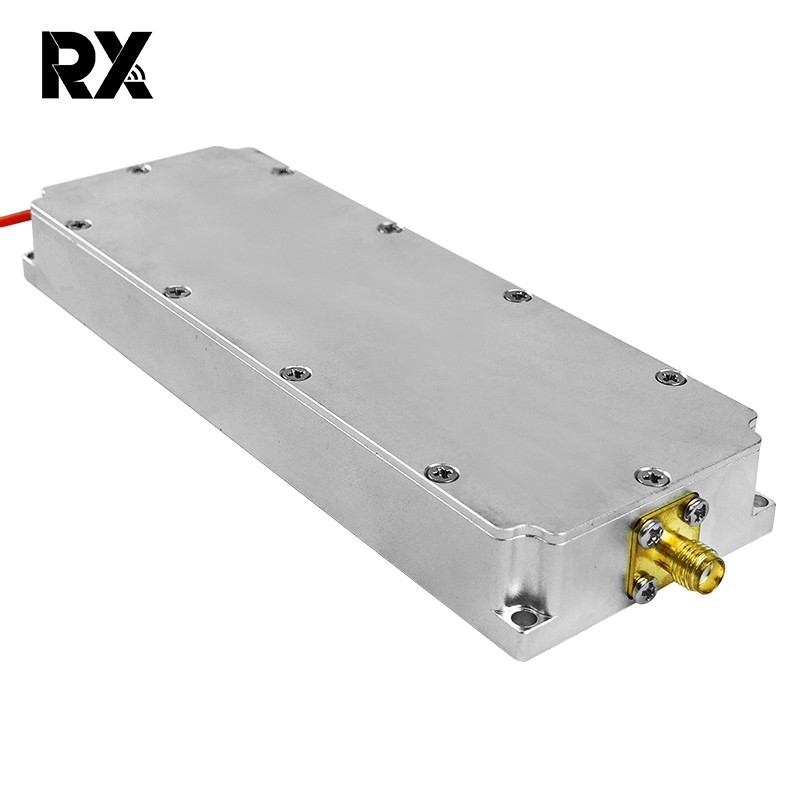

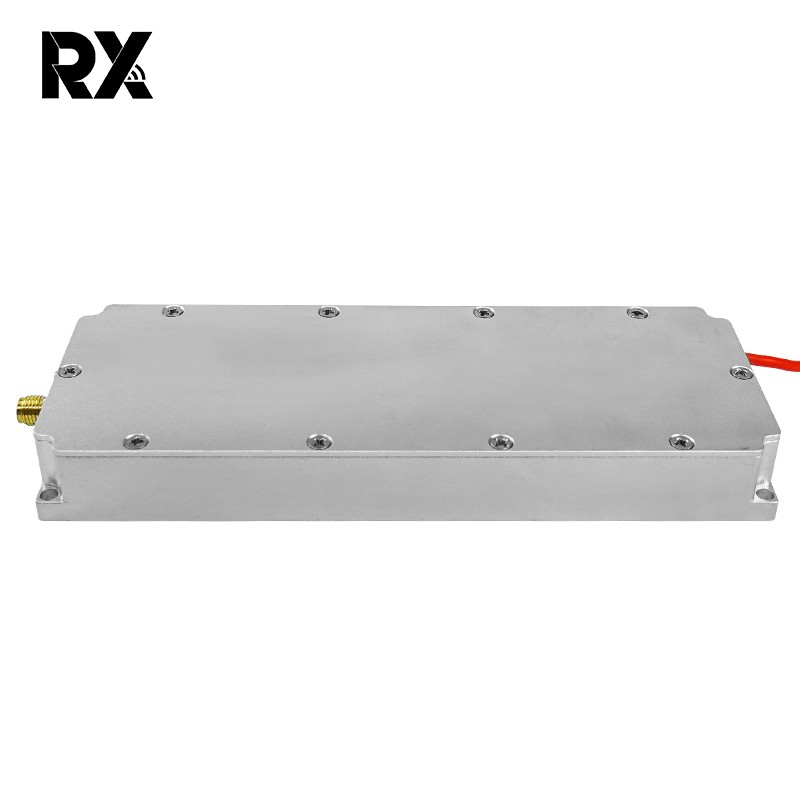

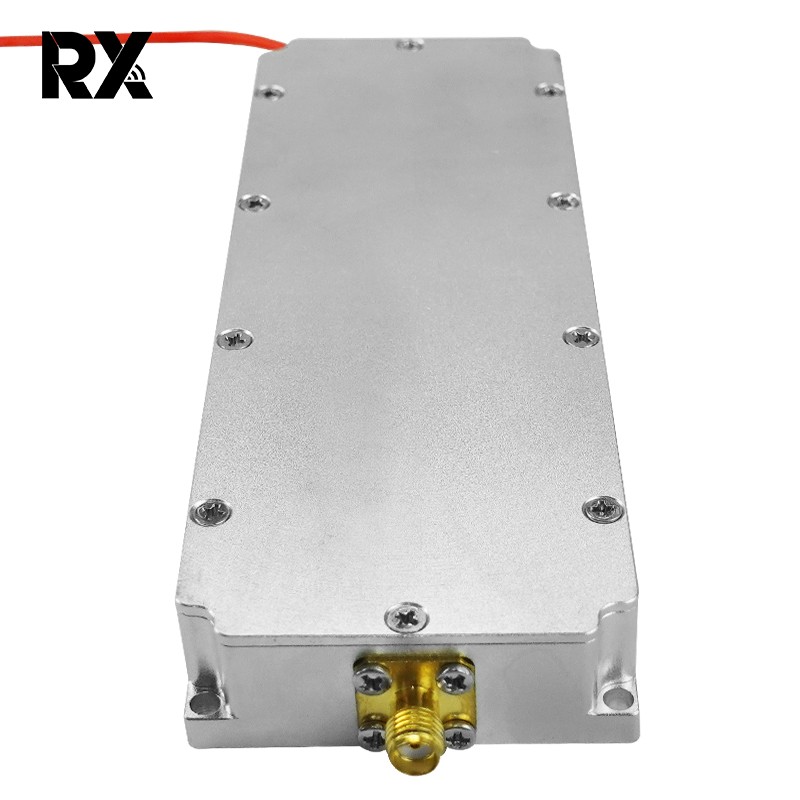

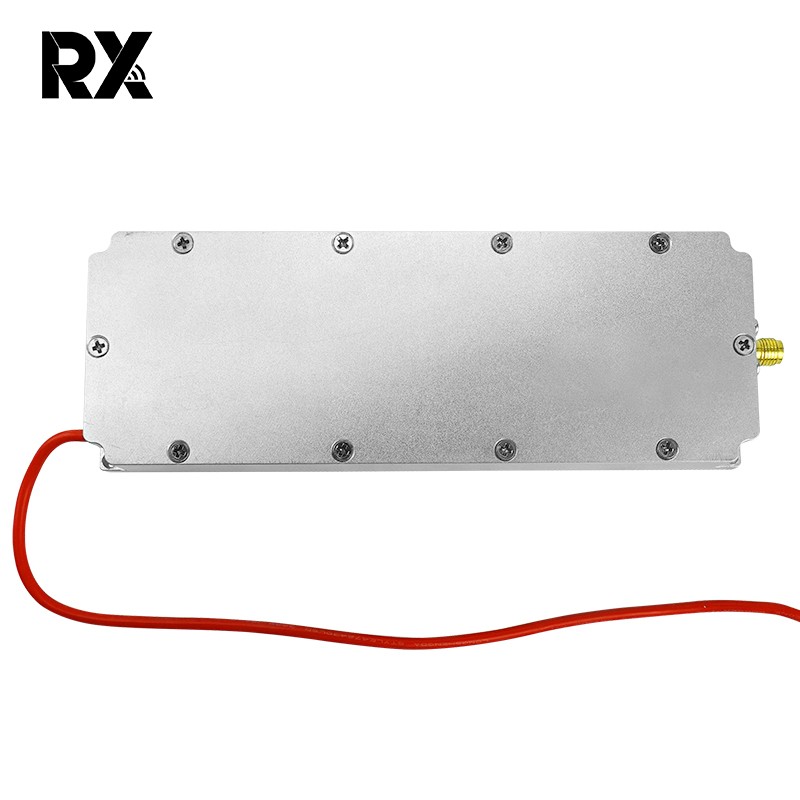

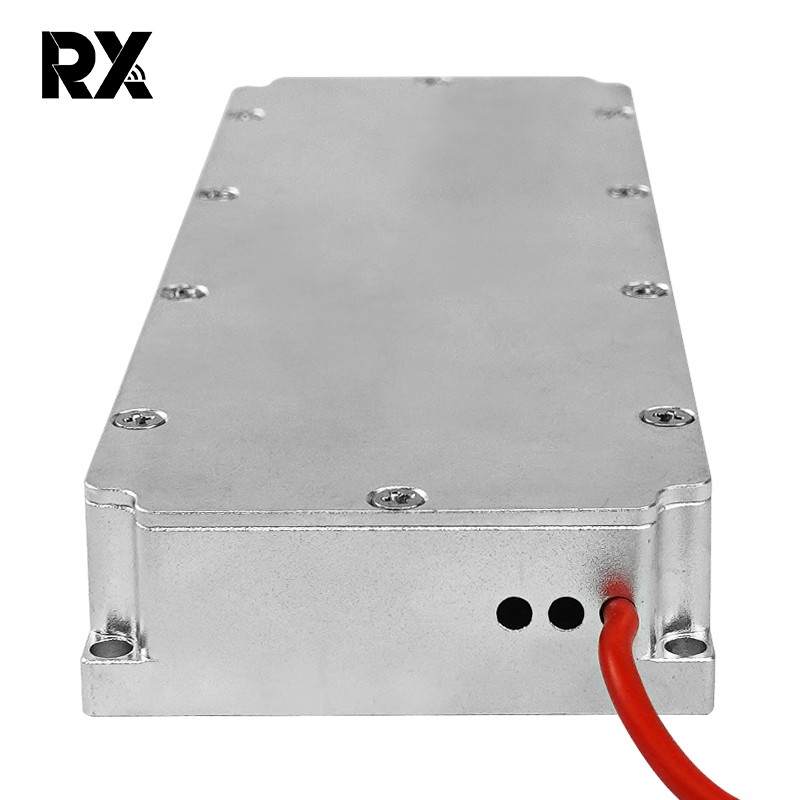

30-40W RF Signal Jammer Module with Circulator

This 30-40W RF Signal Jammer Module with Circulator has a power output of 30-40W and can generate a powerful RF jammer signal, which can effectively block RF communications within a specific range. A high-quality circulator is integrated to ensure one-way transmission of the signal and to efficiently direct the emitted interference signal to the target direction. The quality of the modules produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

The 30-40W RF Signal Jammer Module with Circulator ensures strong interference signal coverage and interference intensity. The use of advanced power amplification technology and a stable power management system ensures the stability and reliability of power output and supports interference with multiple common RF bands, such as 2.4GHz, 5.8GHz, and other civilian wireless communication bands, as well as some specific professional bands.

30-40W RF Signal Jammer Module with Circulator specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	30-40	W
5	Gain	41	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red wire
11	Enable Control	High ON Low Off
12	Out shell Size	1404912	mm
14	Weight	262	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK
