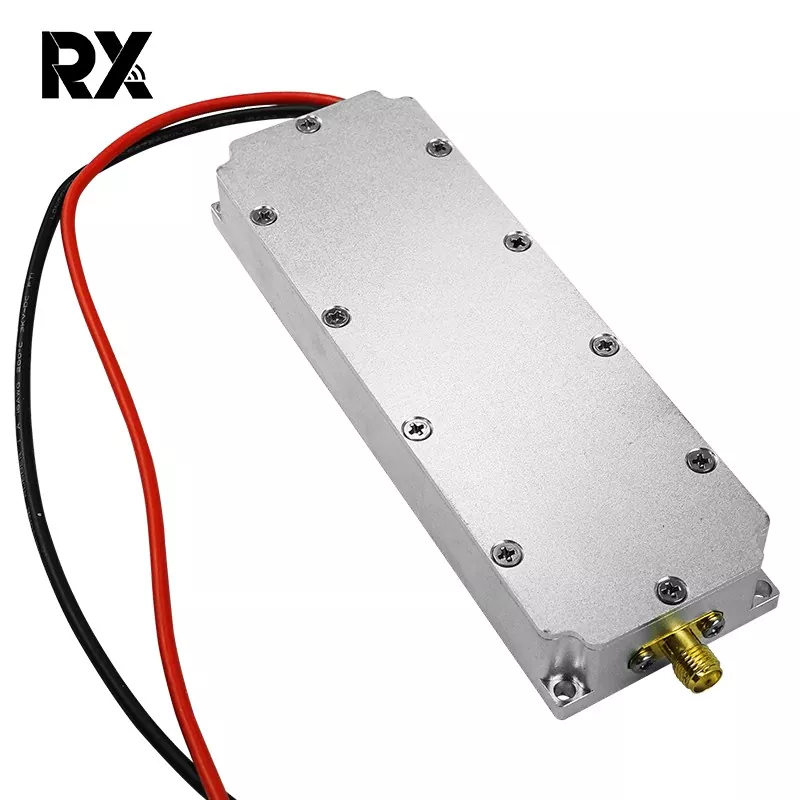

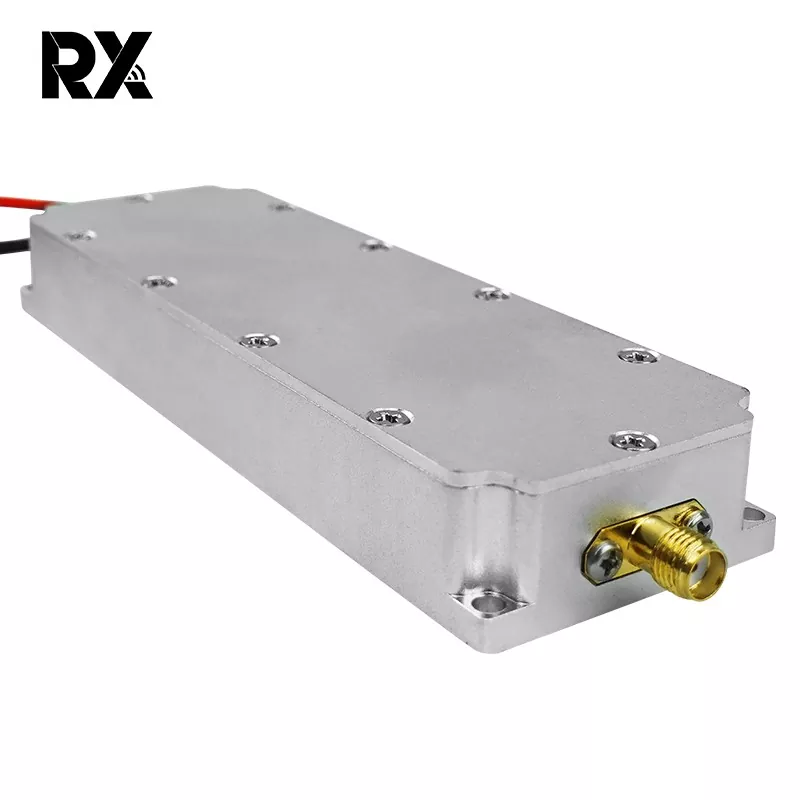

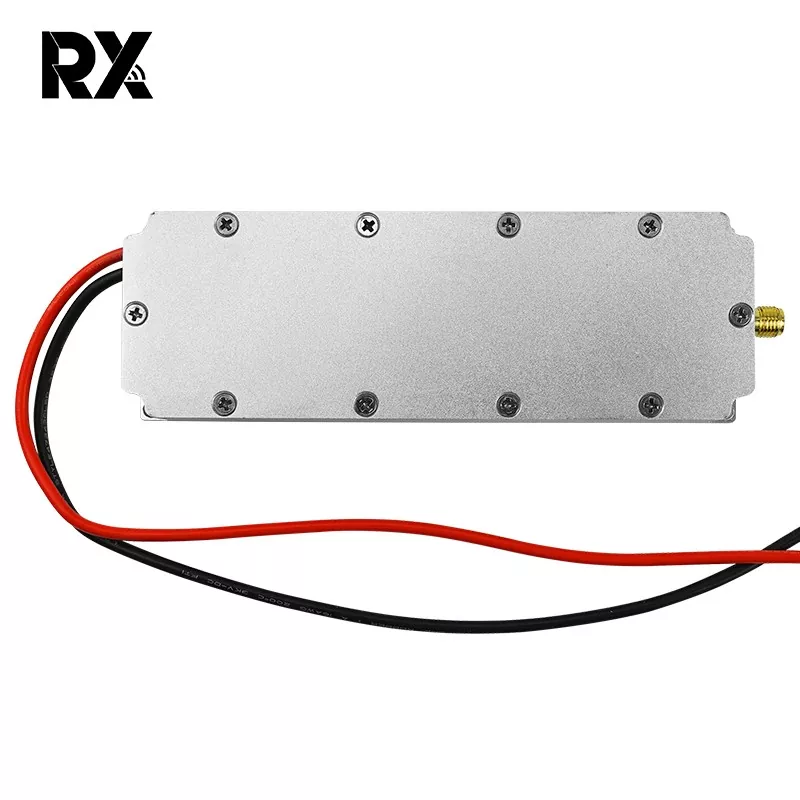

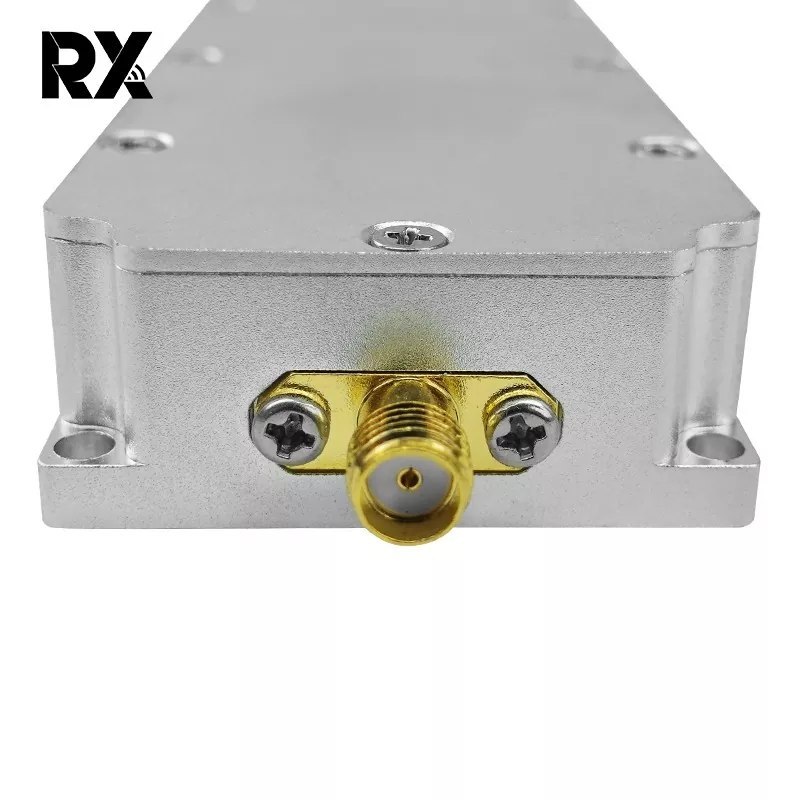

20W Jammer Module with Circle Protection

The 20W Jammer Module with Circle Protection is a professional electronic interference device capable of generating strong interference signals to effectively block or interfere with wireless communications and signal transmission. The ring structure has special signal shielding and reflection functions that can reduce the interference from external signals to the interference module. Additionally, the module is designed with a circulator and offers customizable frequency band support.RX, known for its manufacturing prowess, ensures the superior quality of these modules.

Send Inquiry

Product Description

The 20W Jammer Module with Circle Protection features a stable output power of 20W and is able to generate effective interference signals within a certain range, thus meeting the interference requirements in various scenarios. Through increasing the heat dissipation area and creating a good air circulation channel, the heat generated during the operation of the device can be dissipated in a timely manner. In locations where confidentiality is essential, such as government agencies, corporate confidential meeting rooms, and scientific research laboratories, this interference module can be utilized to prevent information from being stolen.

20W Jammer Module with Circle Protection specification

20W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency		MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	20	W
4	Work Voltage	24-28	V
5	Max Gain	43	dB
6	Flatness	±3	dB
7	Max Current	2.5	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	43		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Size	1193916	mm
13	Weight	0.151	Kg
