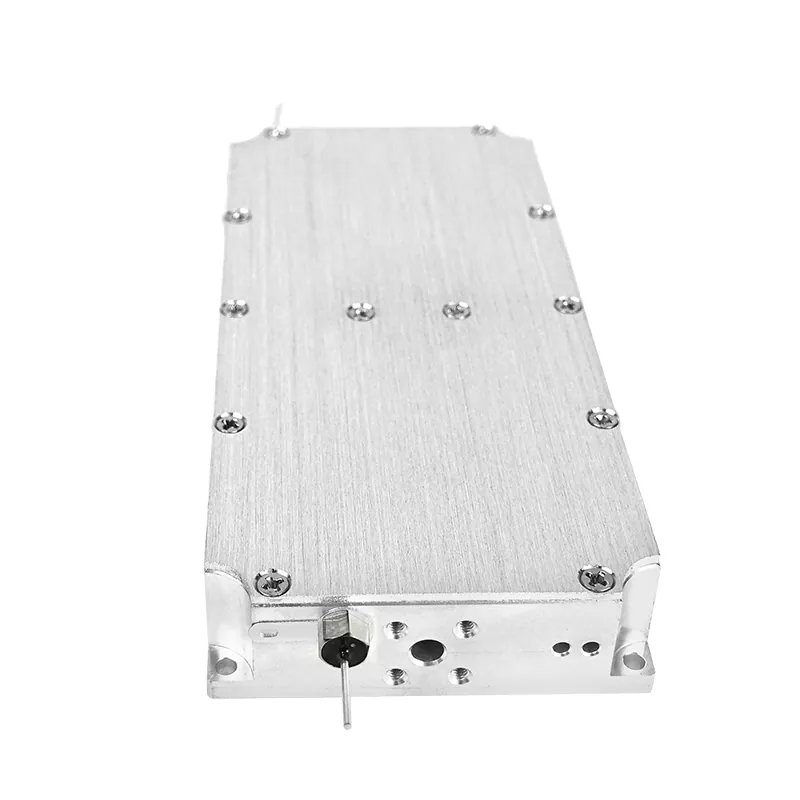

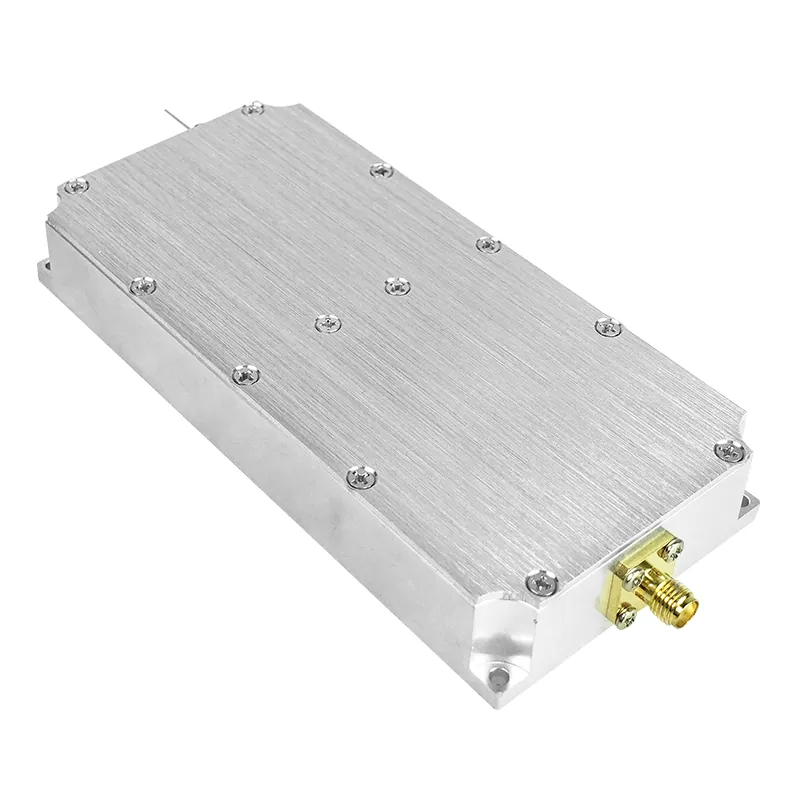

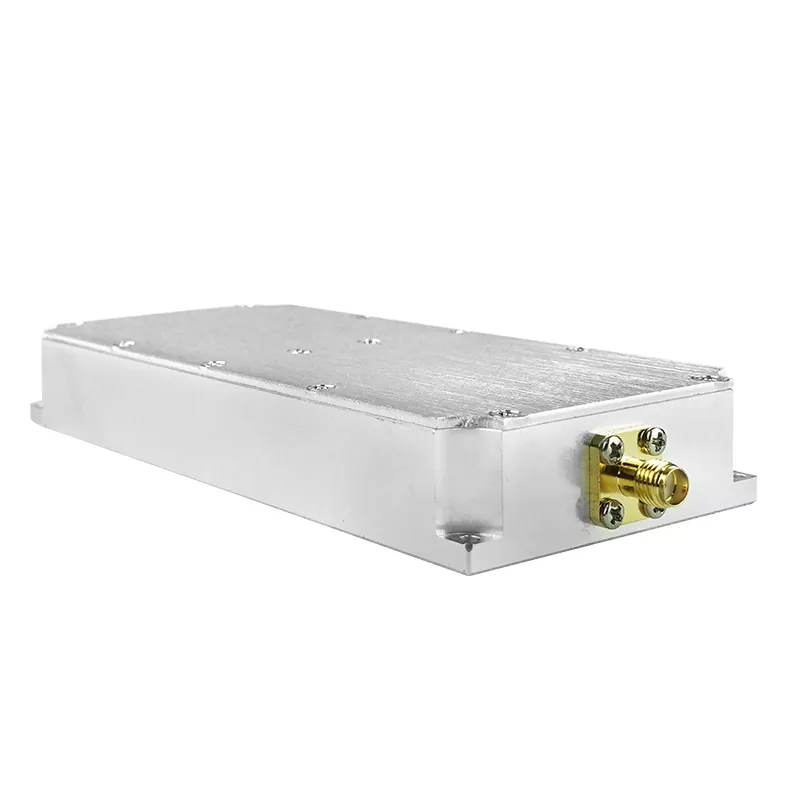

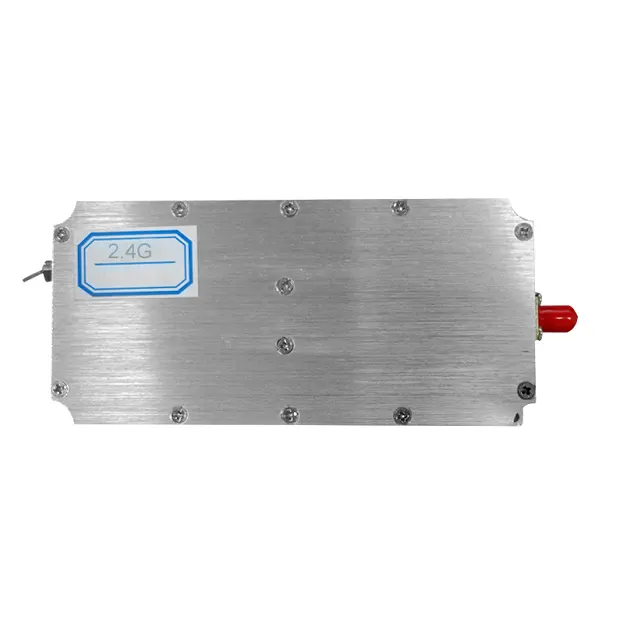

2.4GHz 30W Anti Drone Signal Jammer Module

Wholesale hot sale 2.4GHz 30W anti drone signal jammer module with low price. Shenzhen Rongxin Communication Co., Ltd is a large-scale anti drone products manufacturer and supplier in China. This 2.4GHz 30W anti drone signal jammer module is a core accessory of drone jammer,we can customize according to your request.

Send Inquiry

Product Description

Rongxin 2.4GHz 30W Anti Drone Signal Jammer Module Introduction

Rongxin supplies bulk 2.4GHz 30W anti drone signal jammer modules and offer nice after-sale service.This 2.4GHz 30W anti drone signal jammer module is a special information security module for blocking UAV picture transmission/remote control signal transmission. The Rongxin 2.4GHz 30W anti drone signal jammer module has the running indicator LED light, high efficiency sweep frequency interference source temperature drift is very small, and the power supply through the core capacitor is stable and reliable. The application of convenient frequency hopping UAV countermeasure effect is good.

2.4GHz 30W Anti Drone Signal Jammer Module

Rongxin 2.4GHz 30W Anti Drone Signal Jammer Module Specification

2.4GHz 30W Anti Drone Signal Jammer Module Specification
No.	Item	Data	Unit	Notes
1	Frequency	2400-2500	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	30	W
4	Work Voltage	DC24	V
5	Max Gain	45	dB
6	Flatness	±3	dB
7	Max Current	3	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	20011024	mm
15	Weight	0.2	Kg

2.4GHz 30W Anti Drone Signal Jammer Module

Rongxin 2.4GHz 30W Anti Drone Signal Jammer Module Precaution

ØPower supply needs to carry 24V 3A

ØIf the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.

ØWhen connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power

2.4GHz 30W Anti Drone Signal Jammer Module
