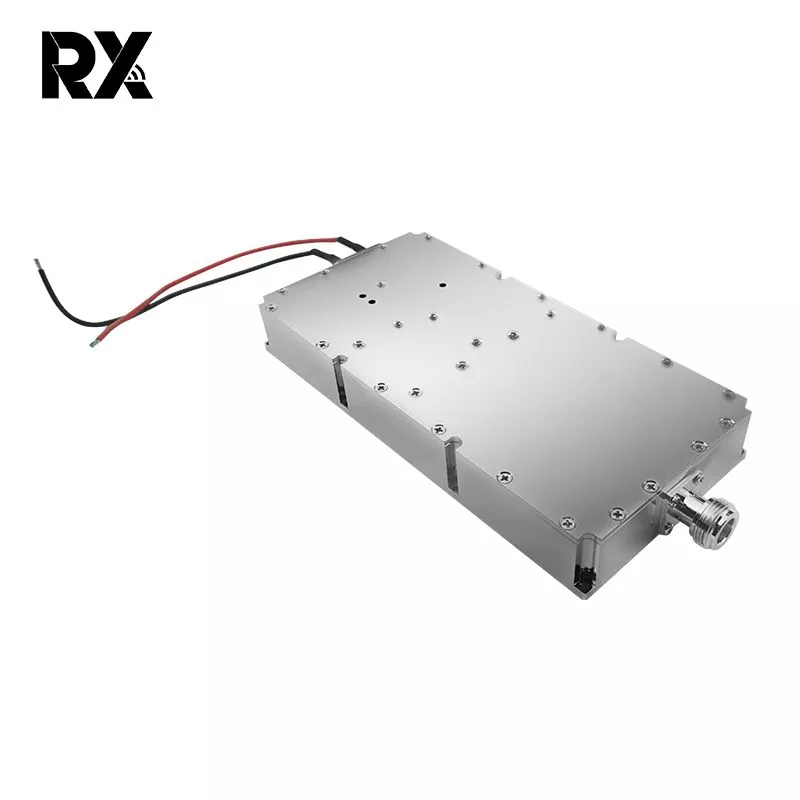

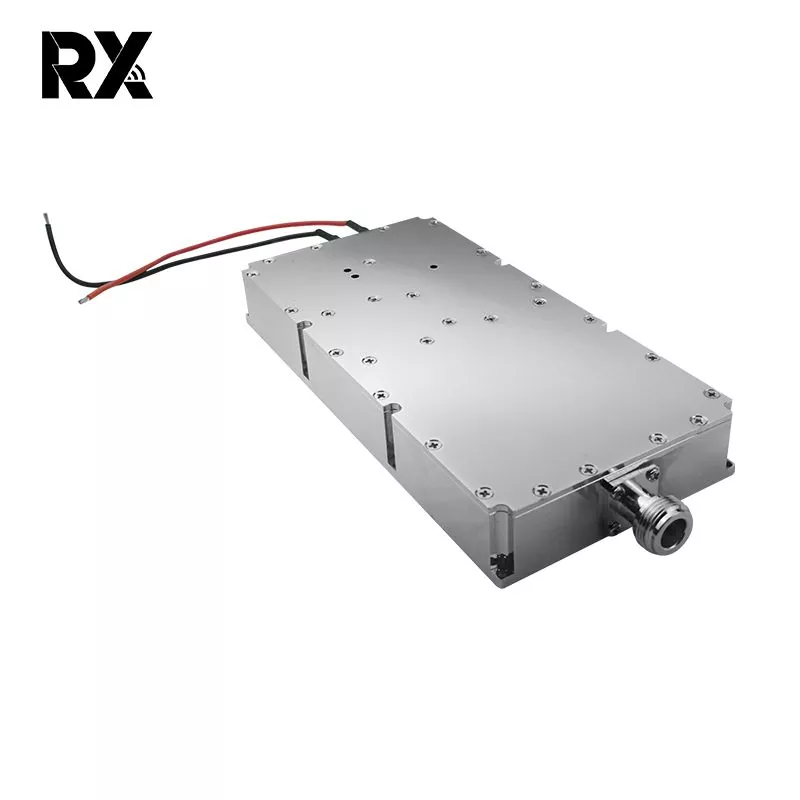

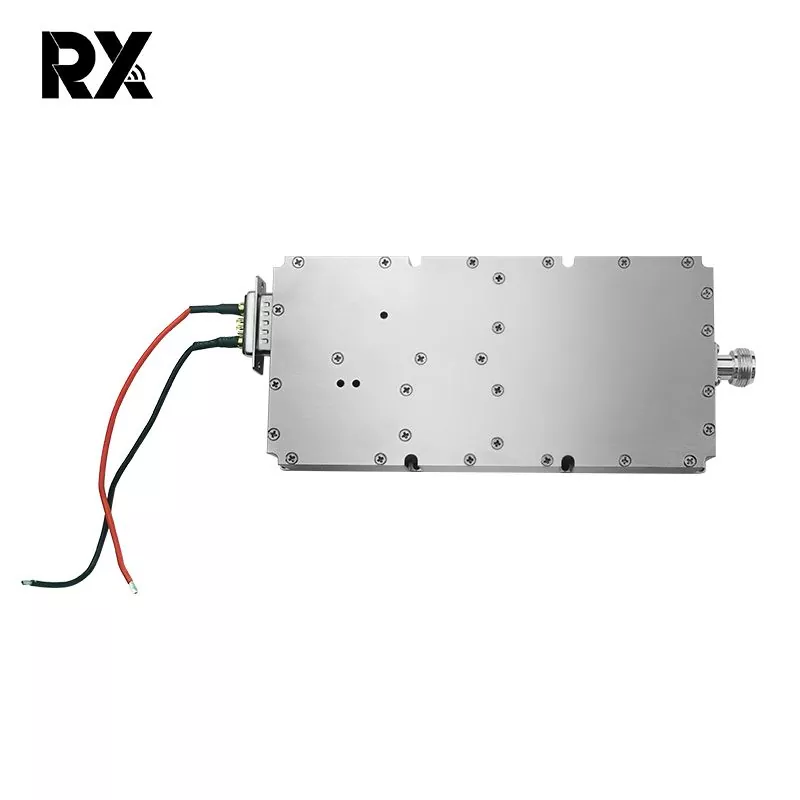

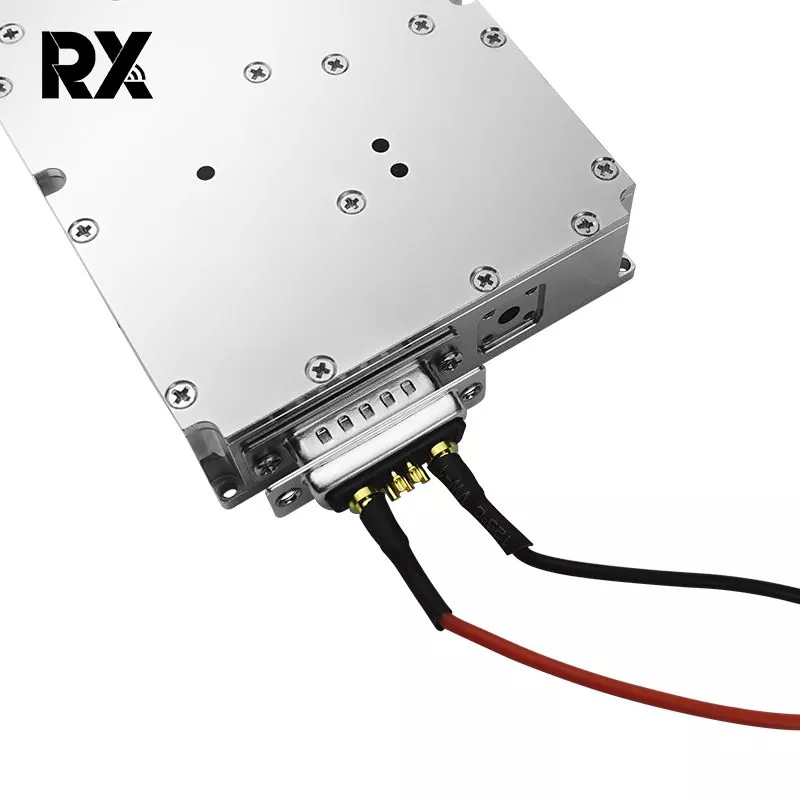

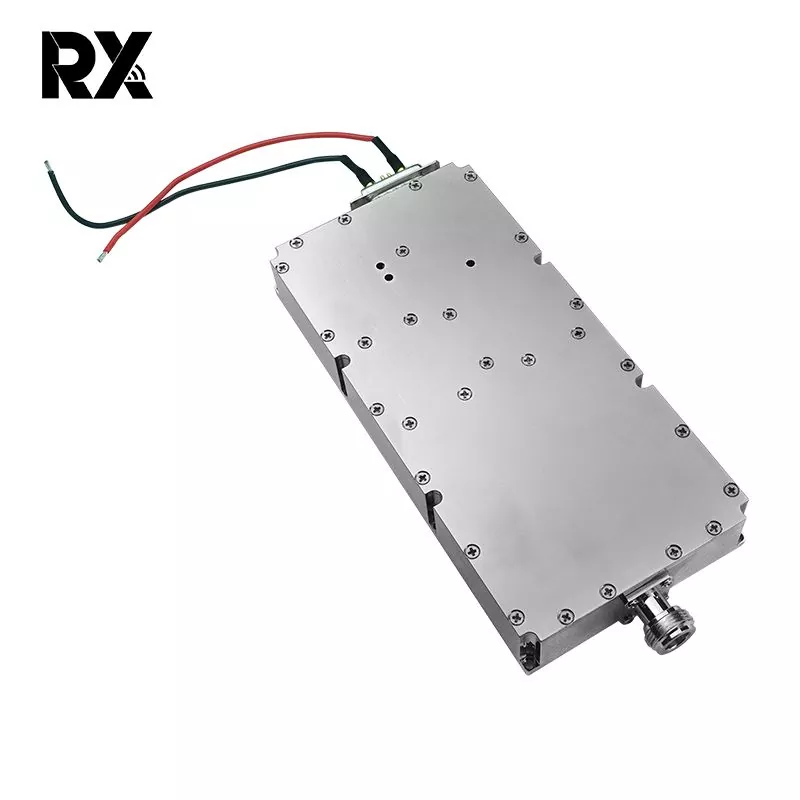

100W Jammer Module with Circle protection

This 100W jamming module with circle protection, featuring circular protection, boasts a robust 100W output specifically engineered to disrupt signals from first-person view (FPV) devices. It includes a ring protection feature that guarantees a reliable and efficient jamming capability. With its ability to obstruct the signal transmission of FPV devices, this module effectively renders them nonoperational, thereby safeguarding the security and privacy of designated areas. Its effectiveness is truly impressive.

Send Inquiry

Product Description

The 100W Jammer module featuring Circle protection boasts a distinctive ring protection capability, which significantly improves the module's stability and reliability while minimizing the leakage of interference signals. This device is specifically optimized for FPV equipment frequencies, ensuring accurate interference without impacting other unrelated devices. As a leading manufacturer of jammer modules, you can confidently purchase from our factory, knowing that we provide exceptional after-sales service and prompt delivery.

100W Jammer module with Circle protection specification

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	28	V
3	Current	10.2	A
4	Output	100	W
5	Gain	50	dB
6	Output stability	1	dB
7	Connector	N / male
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1728221	mm
12	Mount hole	167*77	mm
13	Weight	700	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK
