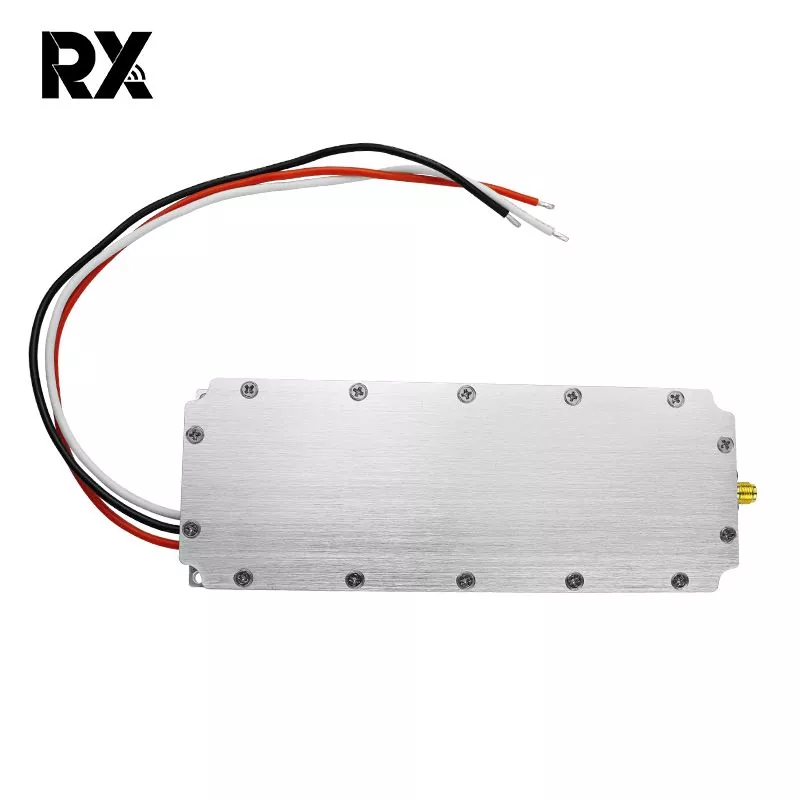

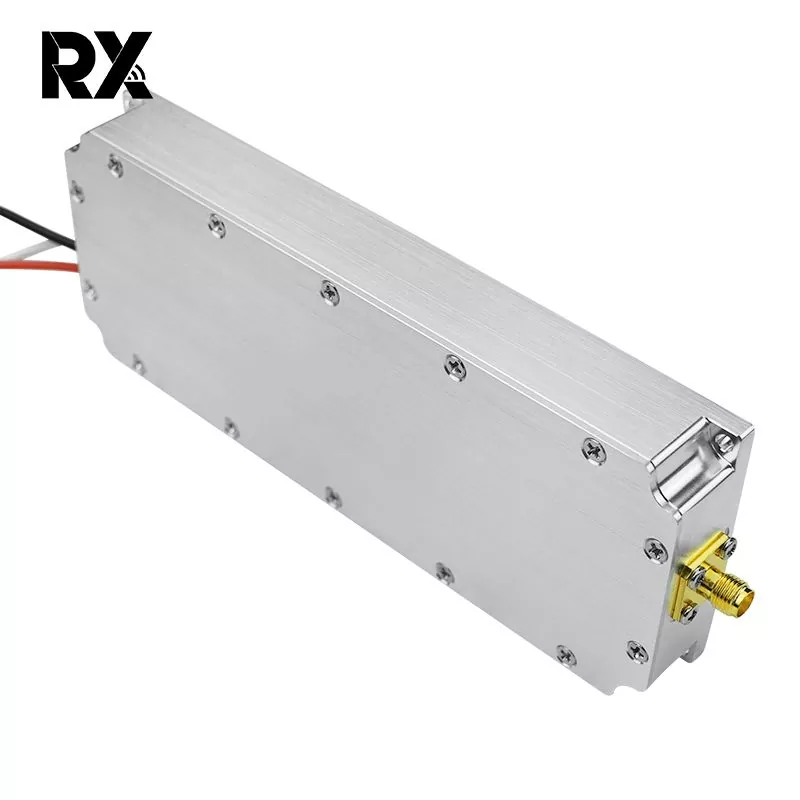

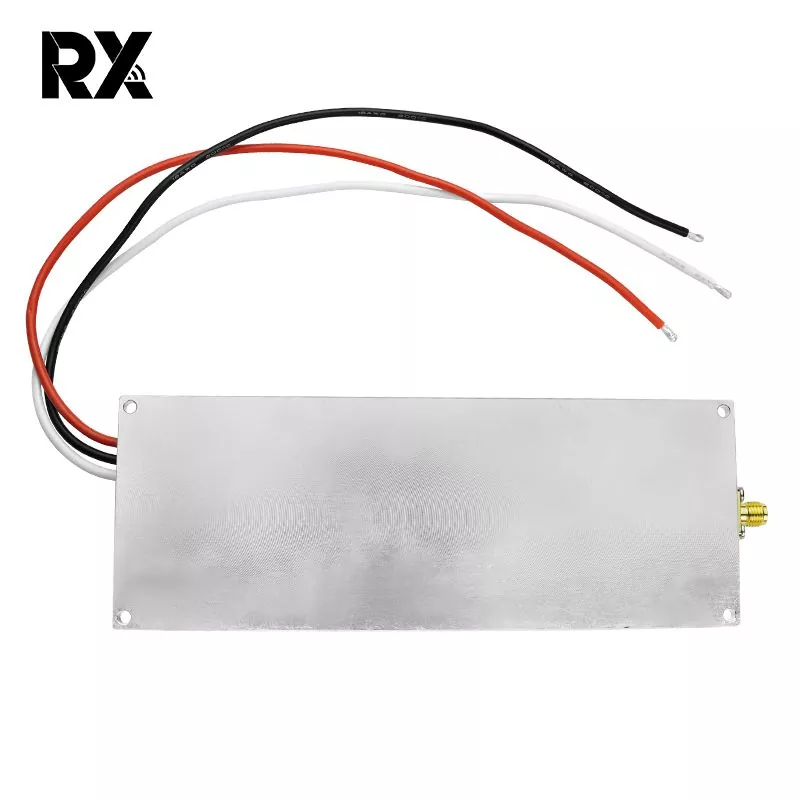

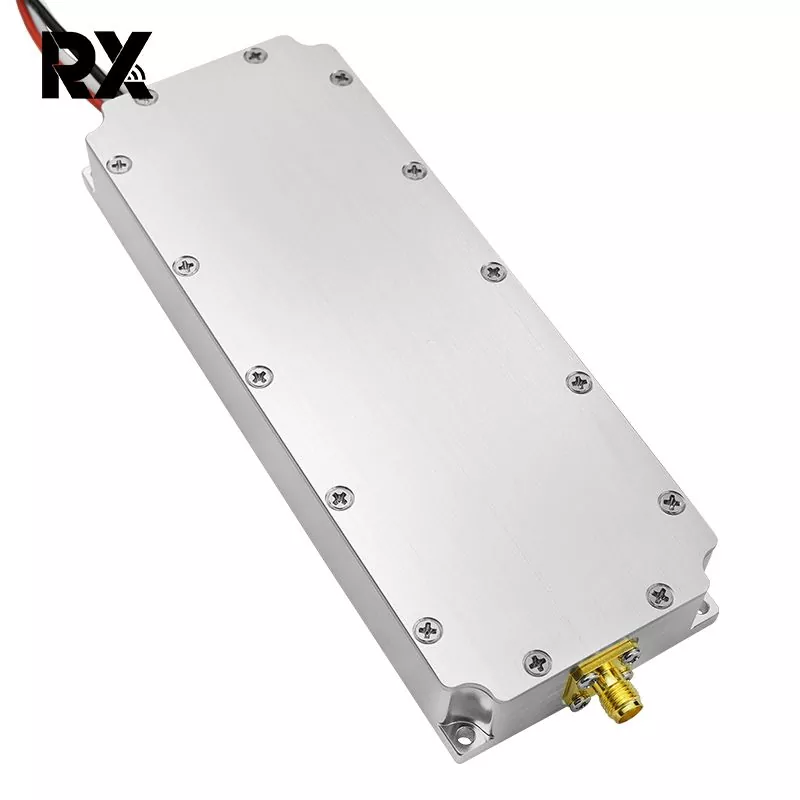

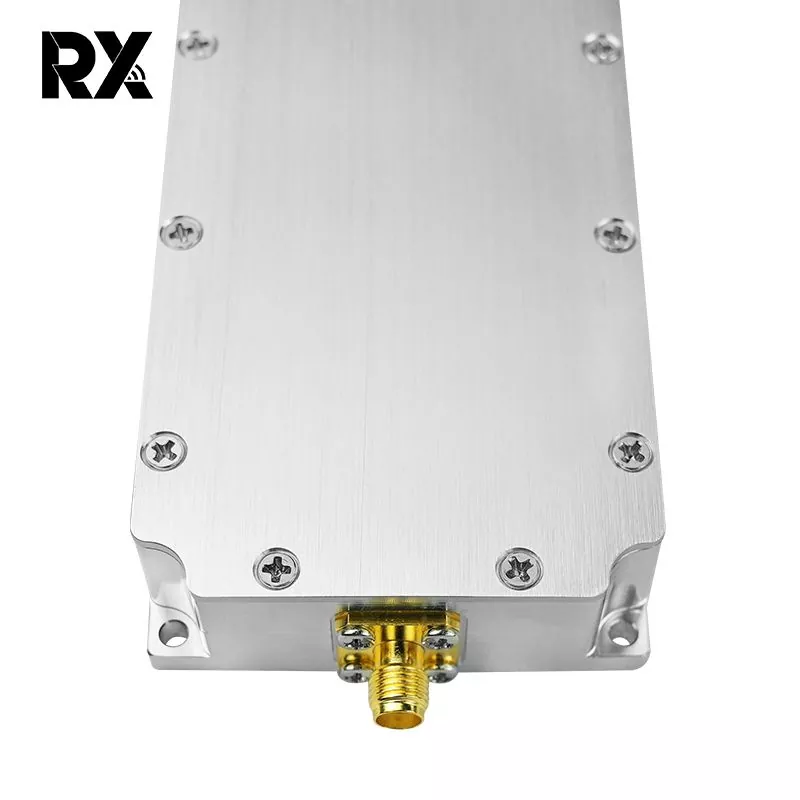

100-2700MHz 50W Jammer Module for Anti drone

100-2700MHz 50W Jammer Module for Anti Module, designed specifically for anti-drone operations. This innovative device provides a robust solution for countering unwanted UAV activities. With the ability to jam frequencies from 100 MHz to 2700 MHz, this module offers extensive coverage to disrupt various types of drones effectively. TeXin is a professional module manufacturer and supplier in China. If you interested in jammer module products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

100-2700MHz 50W Jammer Module for Anti Module operates across a broad spectrum from 100MHz to 2700MHz, ensuring compatibility with most commercial and recreational drones. Engineered for easy integration into various systems, our jammer module is compact yet powerful, allowing for both stationary and mobile deployment.

100-2700MHz 50W Jammer Module for Anti drone specification

No.	Item	Data	Unit	Notes
1	Frequency	100-2700MHz	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	DC28	V
5	Max Gain	47	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	1545420	mm
15	Weight	0.305	Kg
