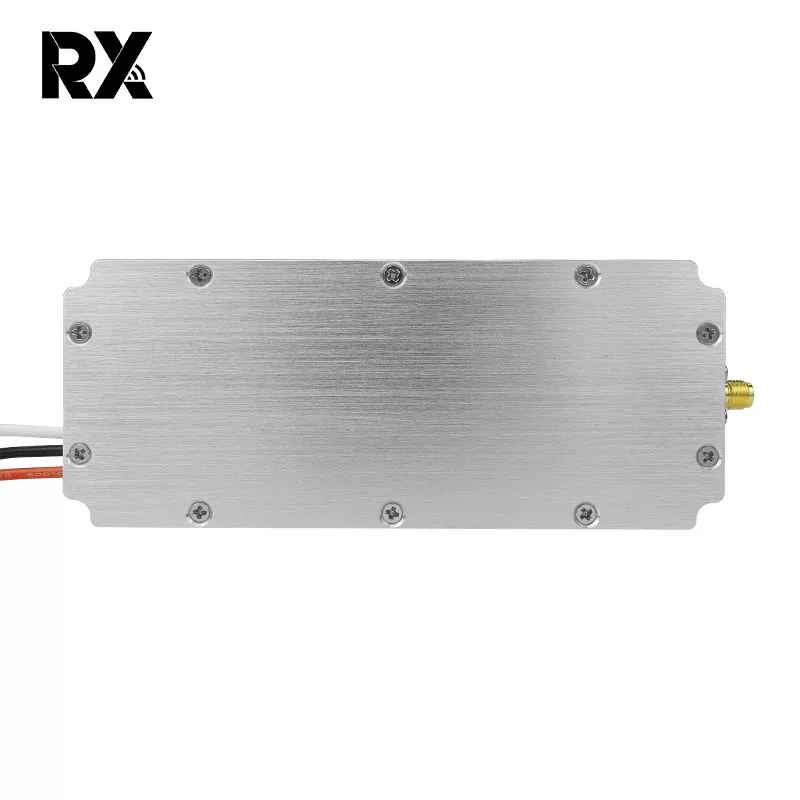

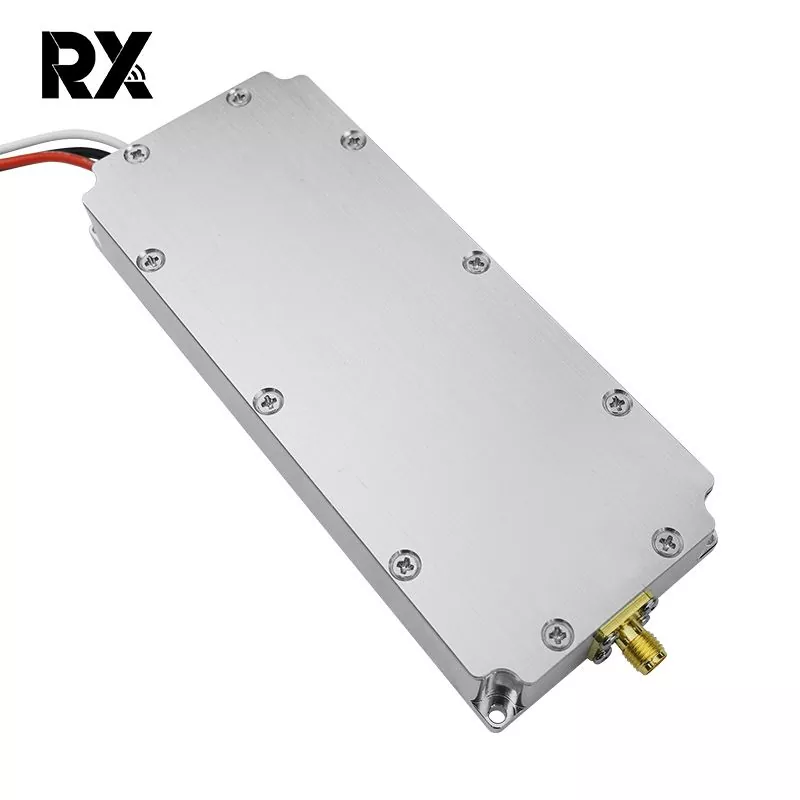

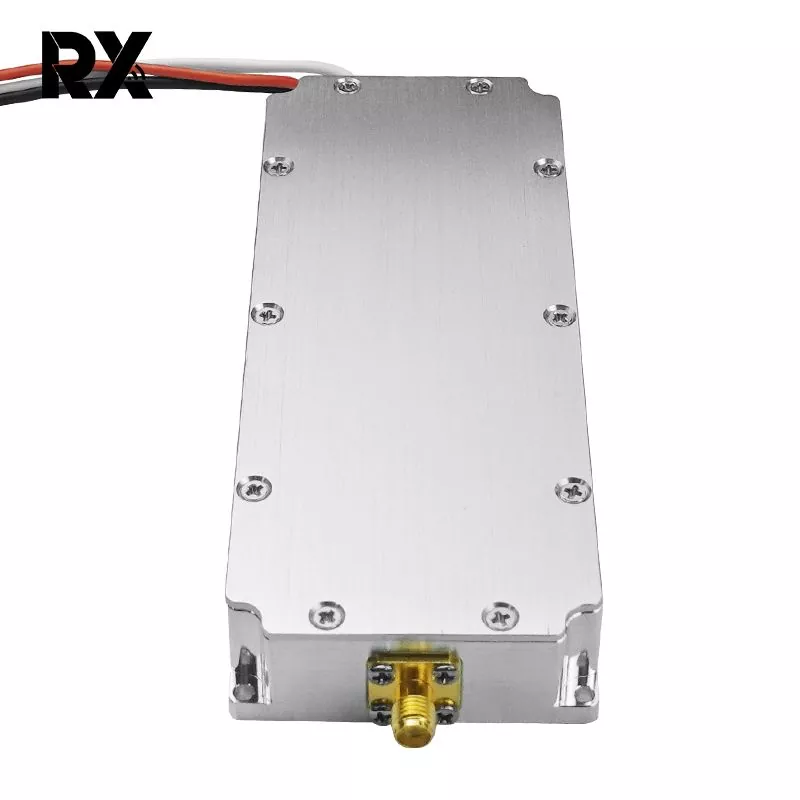

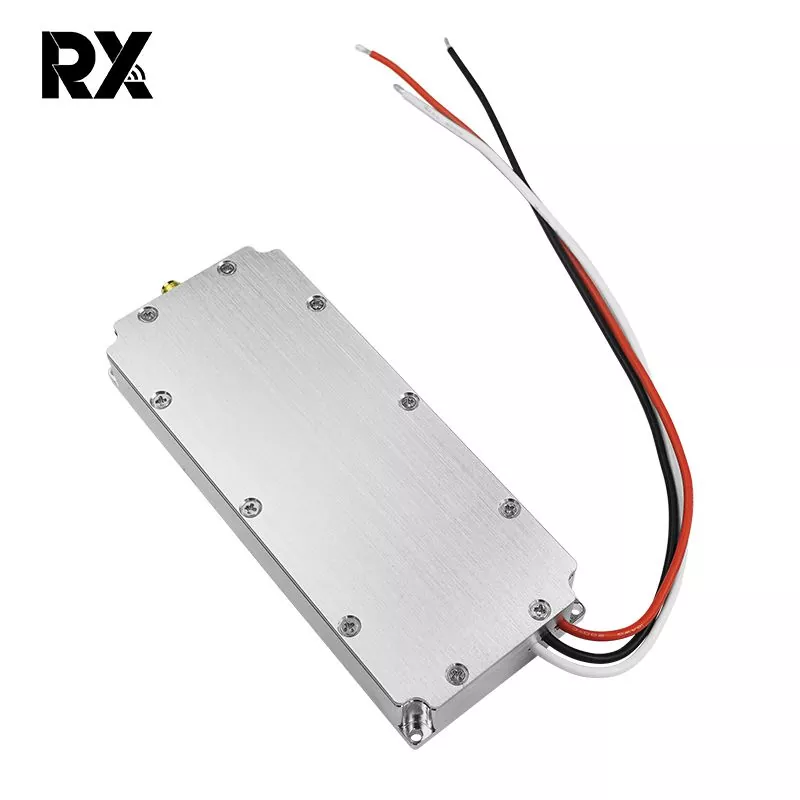

100-2700MHz 30W Anti Drone Jammer Module

This 100 - 2700MHz 30W Anti drone jammer module is designed to tackle drone threats and is capable of effectively interfering with the drone's communication and navigation systems within the 100 - 2700MHz frequency range, leading it to lose control or return to its take-off point. It can disrupt the drone's signal transmission to prevent it from flying, filming, or carrying out other tasks.

Send Inquiry

Product Description

100-2700MHz 30W Anti drone jammer module is a wireless information security module. The module boasts high average output power, excellent in-band flatness, and a small offset between upper and lower sidebands. As Texin is a professional manufacturer of high-quality jammer modules, you can purchase modules from our factory with confidence. We will provide you with the best after-sales service and ensure timely delivery.

100-2700MHz 30W Anti drone jammer module
No.	Item	Data	Unit	Notes
1	Frequency	100-2700MHz	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	30	W
4	Work Voltage	DC24	V
5	Max Gain	45	dB
6	Flatness	±3	dB
7	Max Current	3	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	5313919	mm
15	Weight	0.263	Kg
