Our 100-200MHz fiberglass four-leaf clover omnidirectional antenna is a high-performance antenna product designed to meet the needs of wireless communications in specific frequency bands. It combines advanced technology with high-quality materials to provide you with an excellent signal transmission experience and is widely used in a variety of wireless communication application scenarios. It optimized for the 100-200MHz frequency band, it can accurately achieve efficient signal transmission within this frequency band. The quality of the antennas produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.

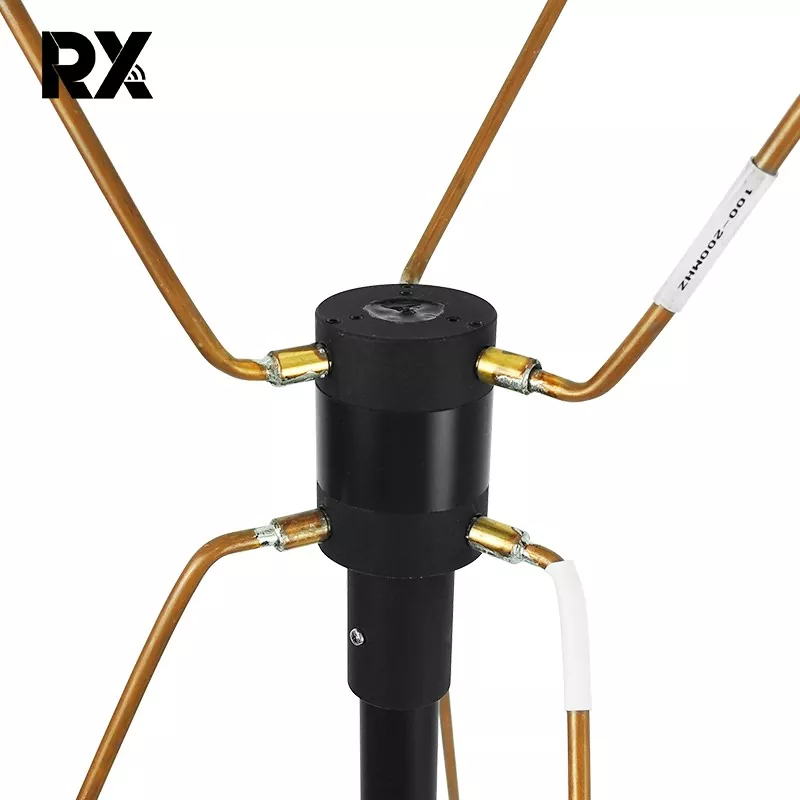

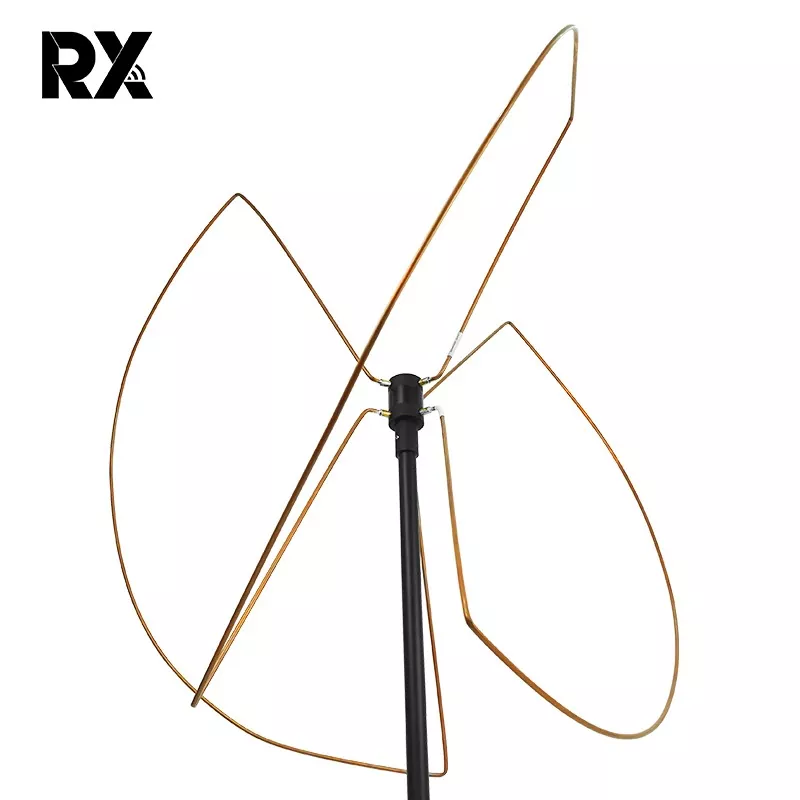

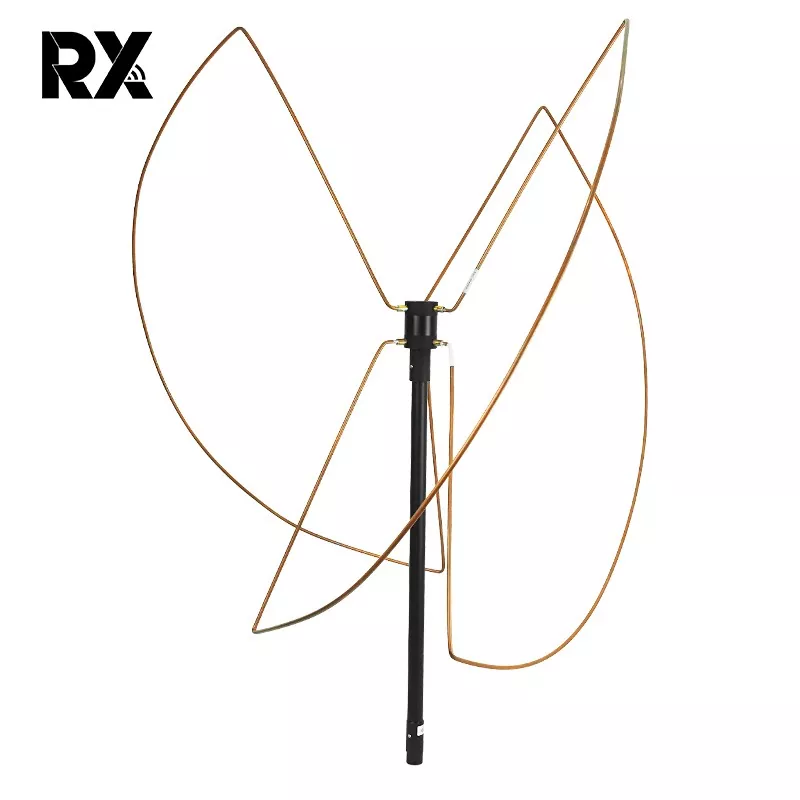

The unique design of this 100-200MHz fiberglass four-leaf clover omnidirectional antenna in the shape of a four-leaf clover enables the antenna to achieve true 360° omnidirectional radiation in the horizontal direction. This means that no matter where your receiving device is located around the antenna, you can receive a stable and uniform signal. The antenna body is made of fiberglass material, which has excellent light weight and high strength properties.
Electrical Specifications |
|
Frequency Range (MHz) |
100-200MHz |
Bandwidth (MHz) |
250 |
Input Impendence (Ω) |
50 |
V.S.W.R |
≤1.5 |
Gain (dBi) |
3.0/5.0 |
Polarization Type |
Vertical |
Lightning Protection |
DC ground |
Power Capacity (w) |
300w |
Mechanical Specifications |
|
Antenna Length (mm) |
93*19mm |
Radiator |
copper |
Connect Type |
SMA/RP SMA/TNC/BNC/N |
Working Temp(℃) |
-40~60 |
Storage Temperature(℃) |
-20~40 |
Radome Color |
Black |
Weight (g) |
61g |
1. High power output 300W
2. Customized frequency range
3. Clover designed
4. 360-degree omnidirectional radiation
5. Omnidirectional signal coverage
