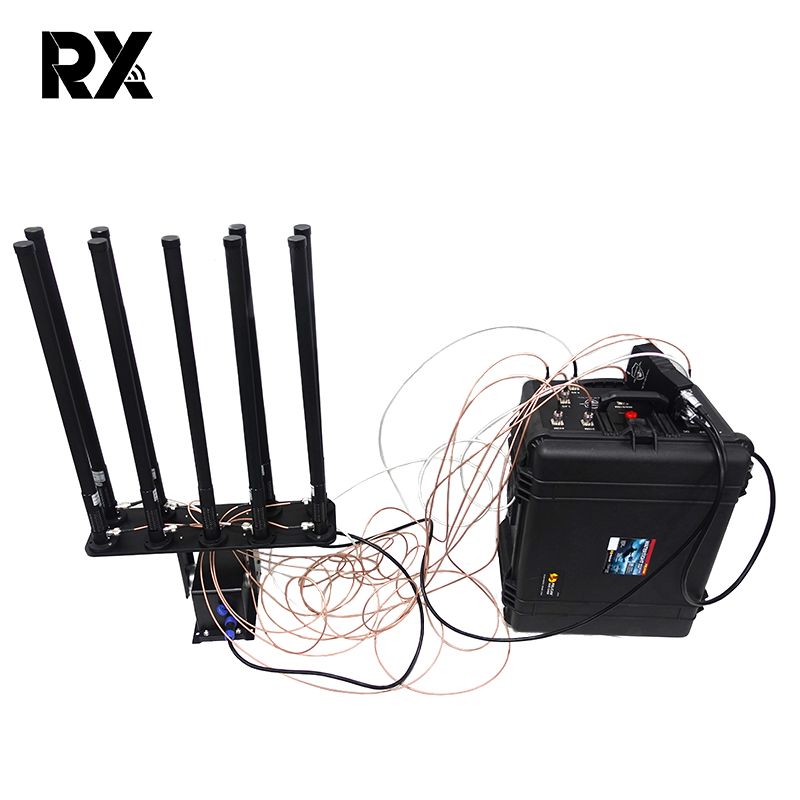

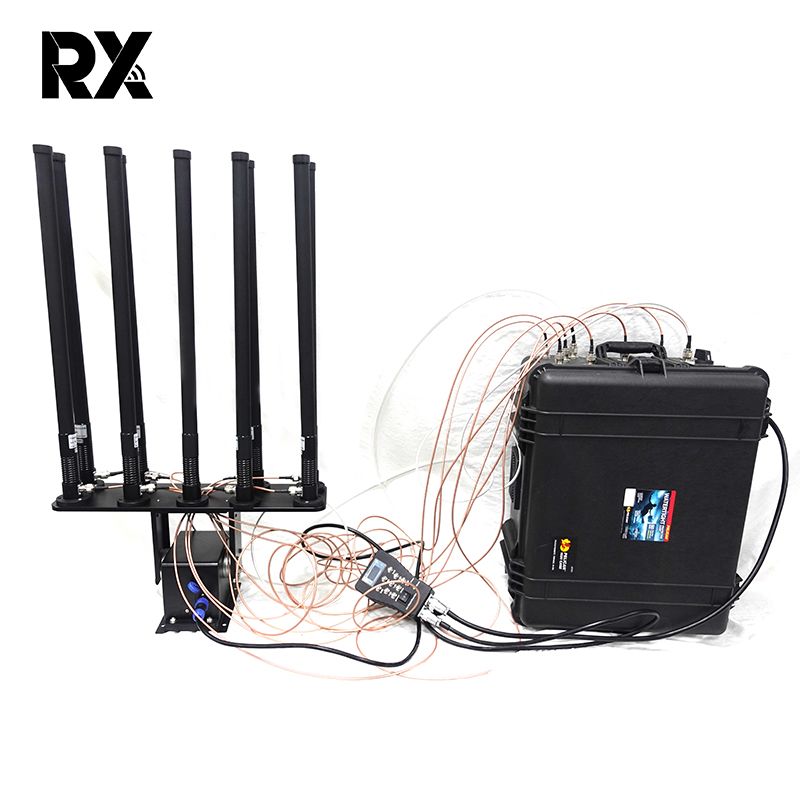

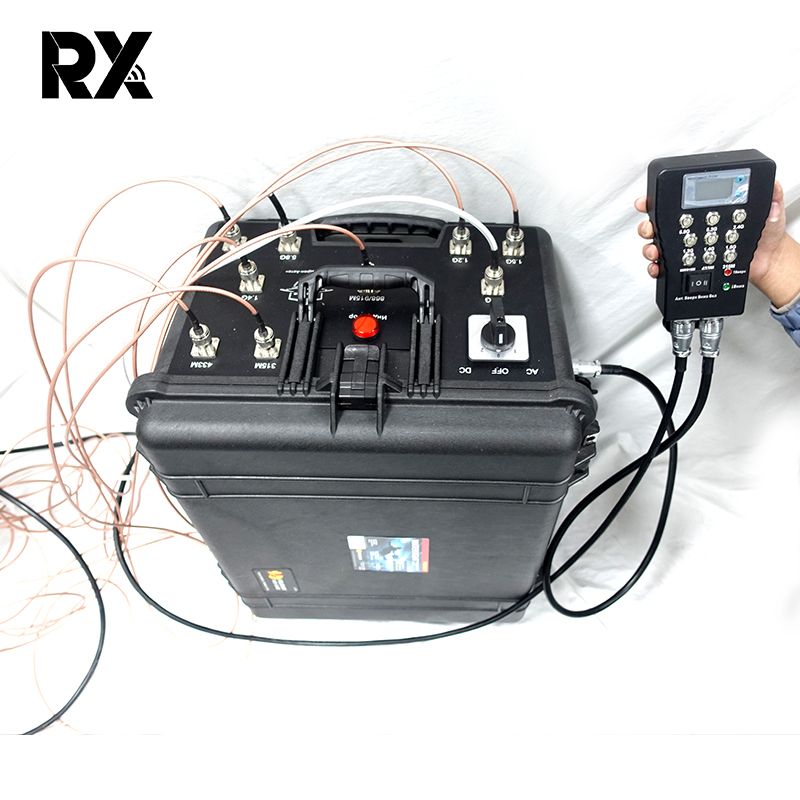

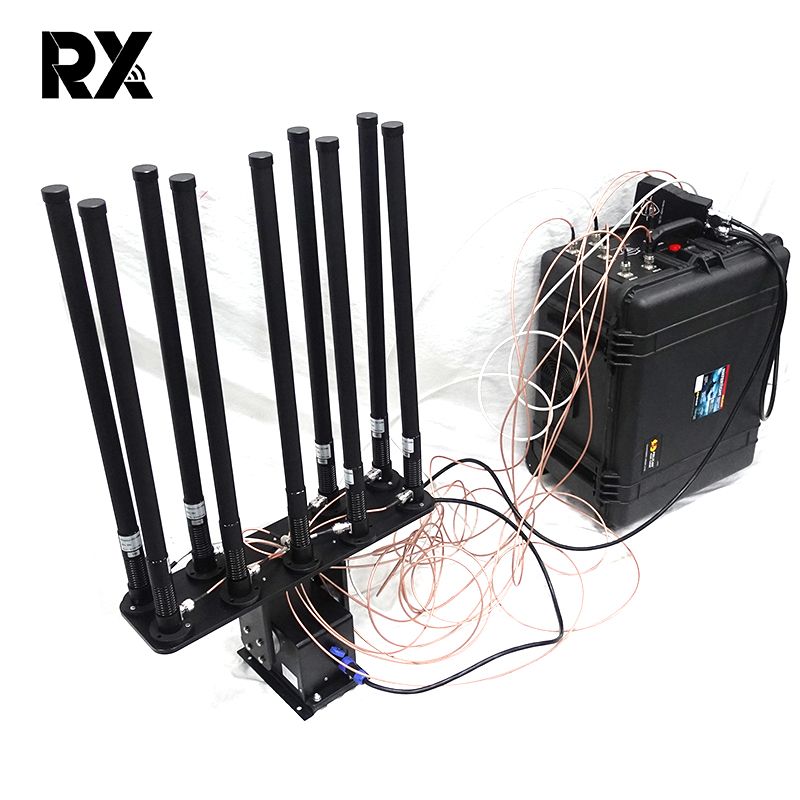

Vehicle Mounted Drone Jammer

This is an advanced vehicle mounted drone jammer produced by supplier Texin in China and equipped with high flexibility and convenience. Whether you place it in the car or anywhere else it is needed, it can work effectively. In specific occasions, such as concerts, military bases, and government agencies, this drone jammer can play an important role in protecting privacy and security.

Send Inquiry

Product Description

This advanced vehicle mounted drone jammer has a powerful jamming function and can interfere with drones of different types and brands, making them unable to fly normally. This has two ways of use, it can be mounted in the car or in a suitcase. This jammer can be customized the frequency band, and it has a built-in radiator and cooling fan. The shell material military resin helps to dissipate heat.

Main Body Specification

Jamming Frequency	Work	Channel	Output Power	Total
Jamming Frequency	Frequency	Quantity	Output Power	Output
1	700: 758-803 MHz	1	30 W	30 W
2	800/900: 850-960 MHz	1	30 W	30 W
3	1800: 1805-1880 MHz	2	30 W	60W
4	2100: 2100-2170 MHz	2	30 W	60W
5	4G1/5G2600: 2496-2690 mHz	2	30 W	60W
6	GPSL1：1560-1620 MHz	1	30 W	30 W
7	5.8G: 5725-5850 MHz	1	30 W	30 W
8	2.4G&2300: 2300-2500 MHz	1	30 W	30 W
9	VHF：135-175 MHz	1	30 W	30 W
10	450/UHF: 400-470 MHz	1	30 W	30 W
11	5G: 3500-3700 MHz	1	30 W	30 W
12	5G1: 3600-3800 MHz	1	30 W	30 W

Total output power	450 W
Jamming Range	* For Drone WIFI GPS: 500-1000 meter radius * For Mobile phone VHF UHF: 50-200 meter radius (depends on real environment )
Body Size	670x510x535mm
Body Size	（not including the protrude part）
Body Weight	39.0 Kg
Relative Temperature	-40-55℃
Relative Humidity	≤85%
Power Consumption	≤1080W
Power Input	AC 100V-240V
Power Input	DC 24V-28V
Built in Battery	Rechargeable 45AH lithium battery
Built in Battery	Duration time: 60-90 minutes

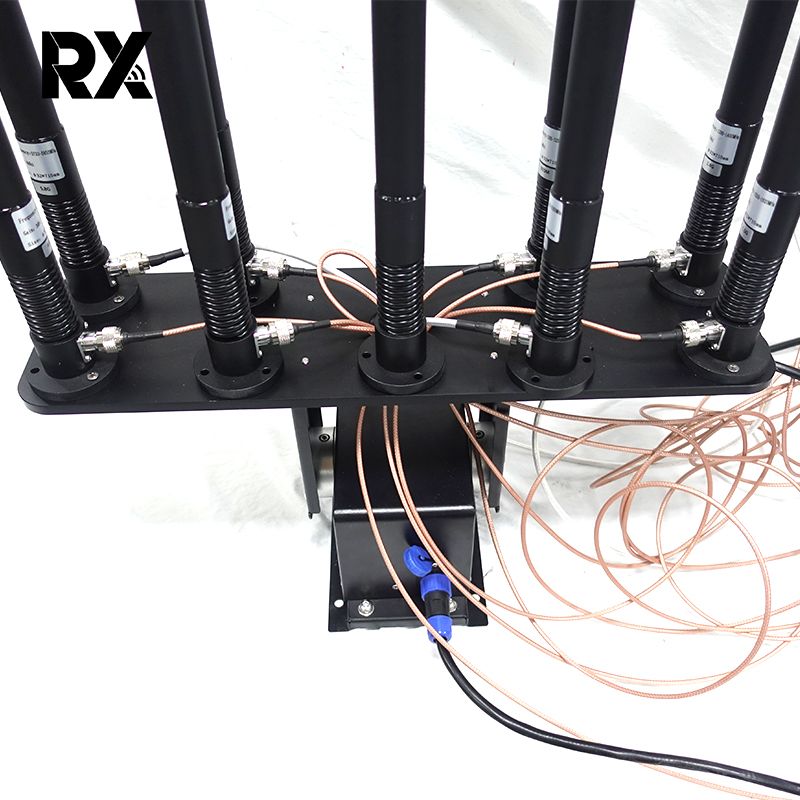

Antenna	External OMNI fiberglass anti shock antenna high gain 8-12 dBi
Power Control	Manual on / off

Questions

What is vehicle mounted jammer?

A jammer is essentially a radio frequency transmitter designed to block all radio receivers that fall within its jamming range and are covered by the frequency band present in the jamming device.

What does a jammer do?

Jammers can interrupt signals so the drone won't be able to receive or transmit messages. So jammer can protect user’s information safety in many situation.

What is the purpose of the jammer?

The vehicle-mounted jammer can move with the vehicle, thereby protecting the safety of the vehicle and preventing information leakage.
