High Power Stationary Drone Jammer with Directional Antenna

Rongxin is a large-scale drone signal jammer manufacturer and supplier in Guangdong,China. We have been specialized in drone signal jammer for many years.This high power stationary drone jammer with directional antenna is independly researched and developed by our own.

Send Inquiry

Product Description

Rongxin High Power Stationary Drone Jammer with Directional Antenna Introduction

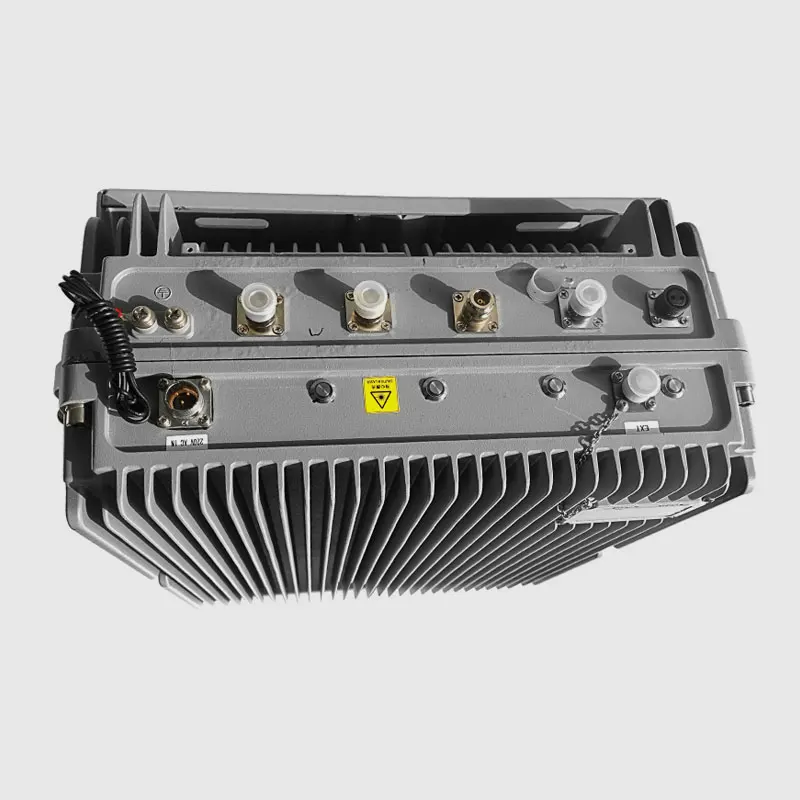

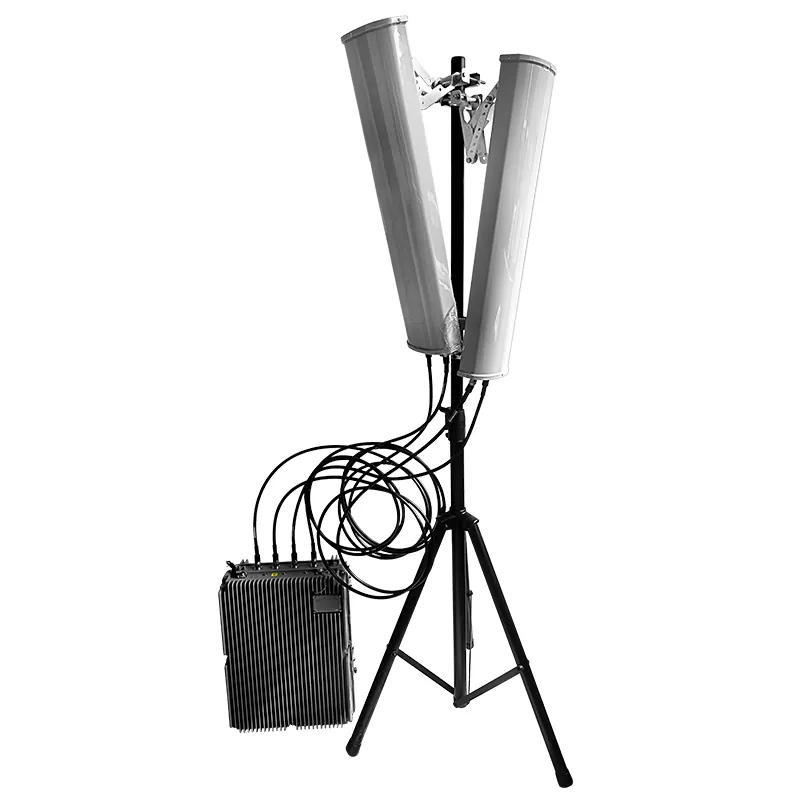

This Rongxin customized high power stationary drone jammer with directional antenna adopts cast aluminum chassis as the main machine shell, which is wear-resistant, scratch-resistant, waterproof, and is more conducive to heat dissipation.Rongxin high power stationary drone jammer with directional antenna replaces the original omnidirectional fiberglass antenna with a multi-port plate-shaped directional antenna. The interference range can reach 2000 meters, and the frequency and power of UAV countermeasure equipment can be adjusted according to shielding needs, and customization supported.

Rongxin High Power Stationary Drone Jammer with Directional Antenna Specification

Jamming range	1000-2000meter（depends on different drone model）
Output power	240W
Power consumption	500W
Chassis size	530410230
Antenna size	600*40(0.4Kg/per)
Net weight	28Kg (notincluding antenna and accessories)
Operating temperature	-40℃～75℃
operating hours	24 hours continuous use
Relative humidity	35～85%
Installation method	Wall-mounted or with bracket installation
Suitable for installation height	3～15m
Chassis material	Aluminum alloy
Accessories	Corresponding to antenna, Huawei lightning protection device, waterproof tape, cable tie, etc.

Rongxin High Power Stationary Drone Jammer with Directional Antenna Application

This Rongxin high power stationary drone jammer with directional antenna is widly used in many important occasions.

1. Government, prison, army, police, detention center, other law enforcement applications

2. Infrastructure construction, car filling stations, oil depots, natural gas stations, airports, drug rehabilitation centers, national security agencies, etc.

3. Public places and large-scale events: sports events, important meetings, etc.

4. Schools, examination rooms, libraries, theaters, cinemas, churches, hospitals, etc.

5. Personal privacy protection, etc.

Rongxin High Power Stationary Drone Jammer with Directional Antenna Instruction

Model	signal	Frequency band	status	Note
returning	2.4G	2400-2500MHz	on	Since GPS will affect civil aircraft, GPS is not recommended to be always on
returning	5.8G	5700-5900MHz	on
landing	Gps/2.4G/5.8G	1570-1620MHz	All on

1. Turn on the power, turn on the WiFi and 5.8G switch, the switch indicator lights up, the switch device can work

2.Interference mode: “returns” That is, when the device is activated, the drones flying within the interference range will automatically return home and cannot fly freely in the interference area

3.note

a. Factors that affect the actual shielding range and effect include the distance of the base station, the presence of obstacles, the installation method and the installation angle, etc.

b. This device only interferes with and shields the drone signal, and will not affect the normal use of the surrounding electronic equipment
