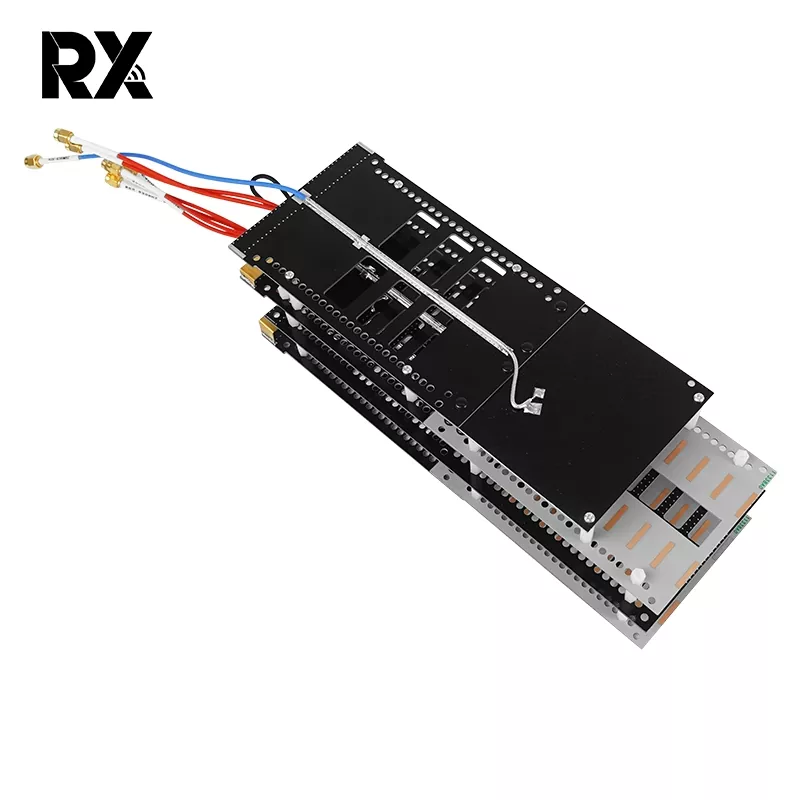

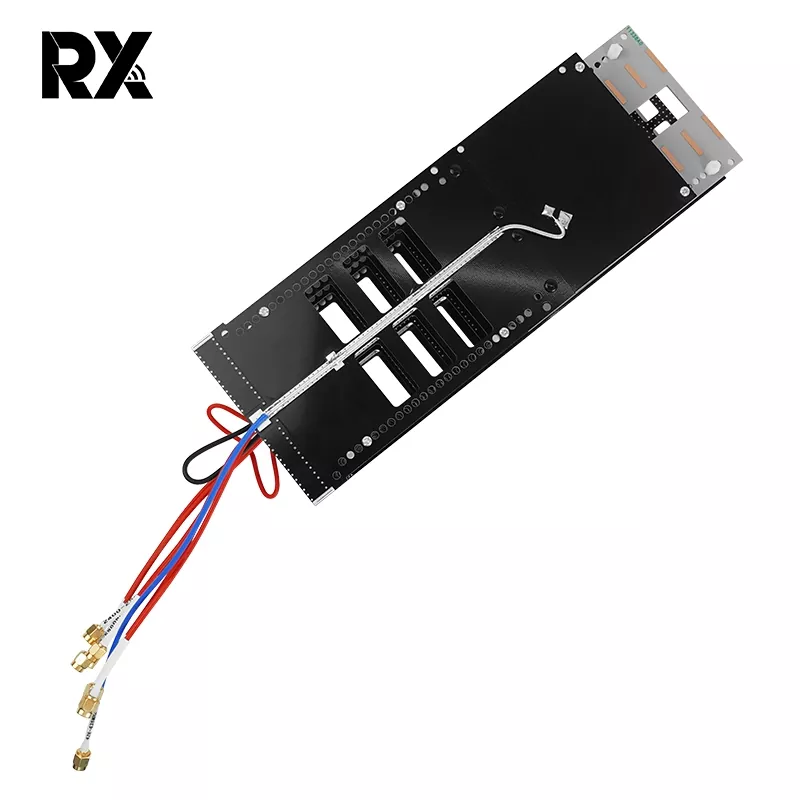

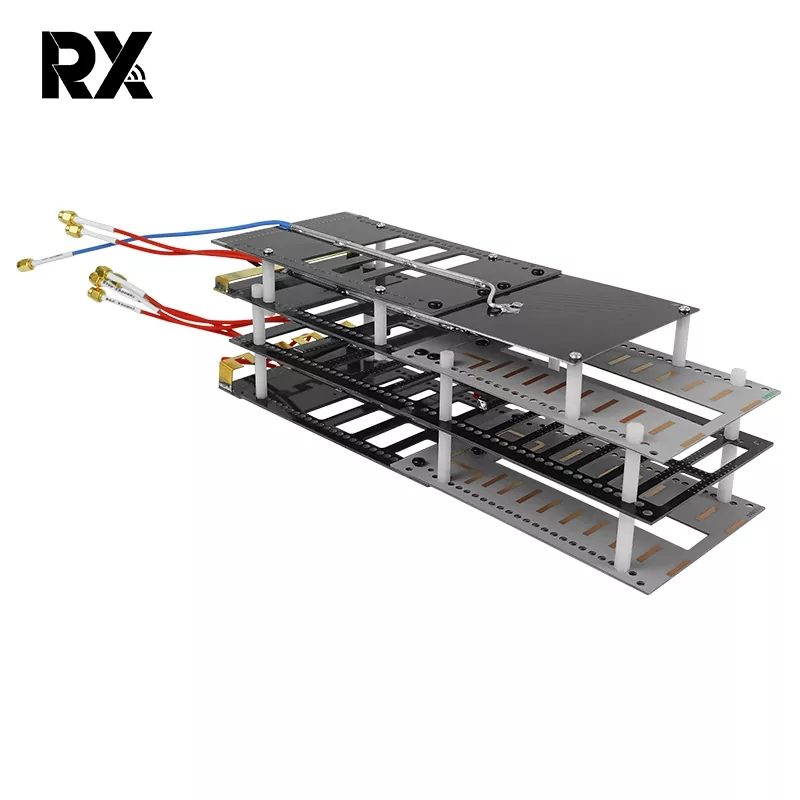

High Gain 7 Band Combination PCB Antenna

The High Gain 7 Band Combination PCB Antenna is an innovative antenna that combines advanced technology with superior performance by RX. It integrates seven different communication bands on one PCB board, realizing efficient multi-band communication, and with high gain characteristics, it can provide stable and powerful signal support for various wireless communication devices.

Send Inquiry

Product Description

The High Gain 7-Band Combination PCB Antenna production process is relatively mature, after strict quality testing and verification, with high reliability and stability. In a variety of complex environmental conditions, such as high temperature, low temperature, humidity, etc., can maintain good working performance, to ensure the continuity and stability of communication.

In addition, High Gain 7 band Combination PCB antenna can support seven different communication frequency bands with wide coverage, including but not limited to commonly used mobile communication frequency bands (e.g. 2G, 3G, 4G, 5G) as well as part of the IoT and private network frequency bands.

High Gain 7 band Combination PCB antenna of Specification

Performance Parameter
Type	Frequency (Customized)	Gain	VSWR	Horizontal Beam width	Vertical Beam width

433MHz	428-438 MHz	1 dBi	≤1.5	75-90º	68-80º
900MHz	803-930 MHz	5 dBi		72-88º	57-74º
1.2G	1160-1280 MHz	8 dBi		62-75º	55-68º
1.4/1.5/1.6G	1160-1620 MHz	8 dBi		55-75º	52-68º
2.4G	2400-2500 MHz	16 dBi		48-58º	27-38º
5.2G	5100-5350 MHz	17 dBi		35-45º	27-38º
5.8G	5700-5900 MHz	17 dBi		35-45º	27-38º

Front-to-back ratio		≥18 dB
Input Impedance		50Ω
Maximum input		50W
Input connector type		086 cable 7pcs*SMS-J

Mechanical Parameter

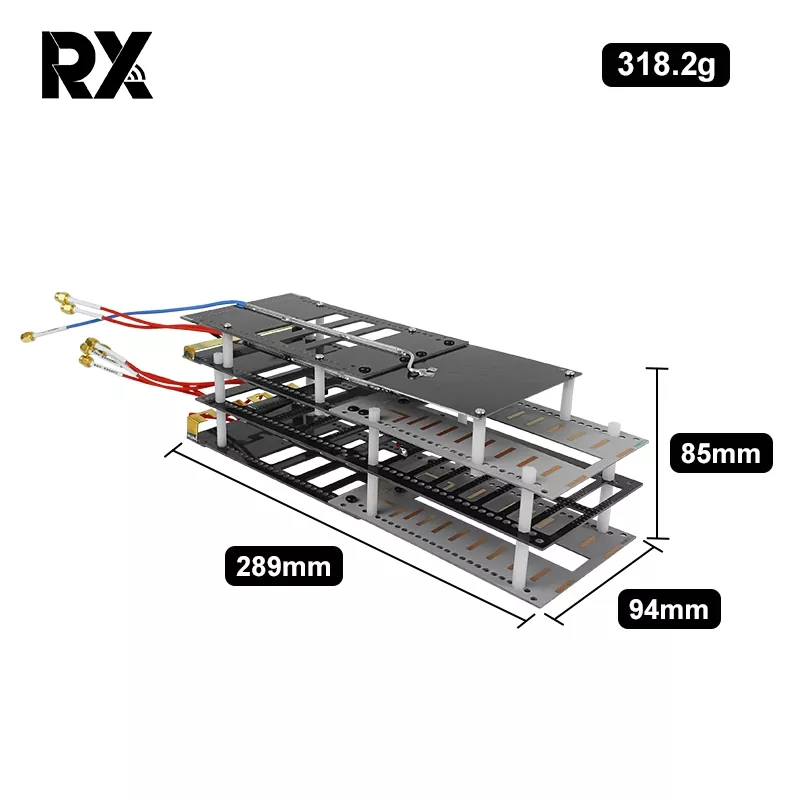

Dimension(LWH)		28497.560mm
Antenna weight(kg)		0.35kg
Work Humidity(％)		10%- 95%
Surface Color		Black & grey color
Work temperature(ºC)		-40～65 º
