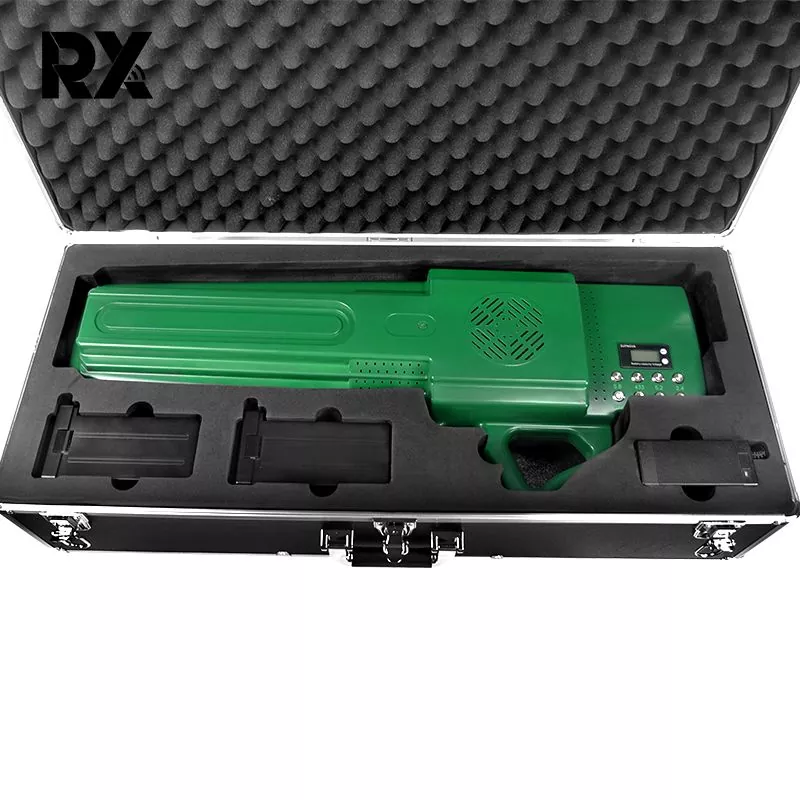

8 Channel Long Distance Anti Drone Gun Jammer

Rongxin Communication Co., Ltd. is a professional 8 Channel Long Distance Anti Drone Gun Jammer manufacturer and manufacturer of UAV countermeasure equipment, 8 Channel Long Distance Anti Drone Gun Jammer,new product design, new product development, continuous testing, committed to high quality, high service and low price.

Send Inquiry

Product Description

8 Channel Long Distance Anti Drone Gun Jammer Introduction

Choose Rongxin Communication Co., Ltd. to buy low-price and high-quality anti-drone equipment.This effective drone jammer gun can force the drone return home or land in a long range 1500-2000 meter by interfering the remote control signal between the drone and ground.

8 Channel Long Distance Anti Drone Gun Jammer Specification

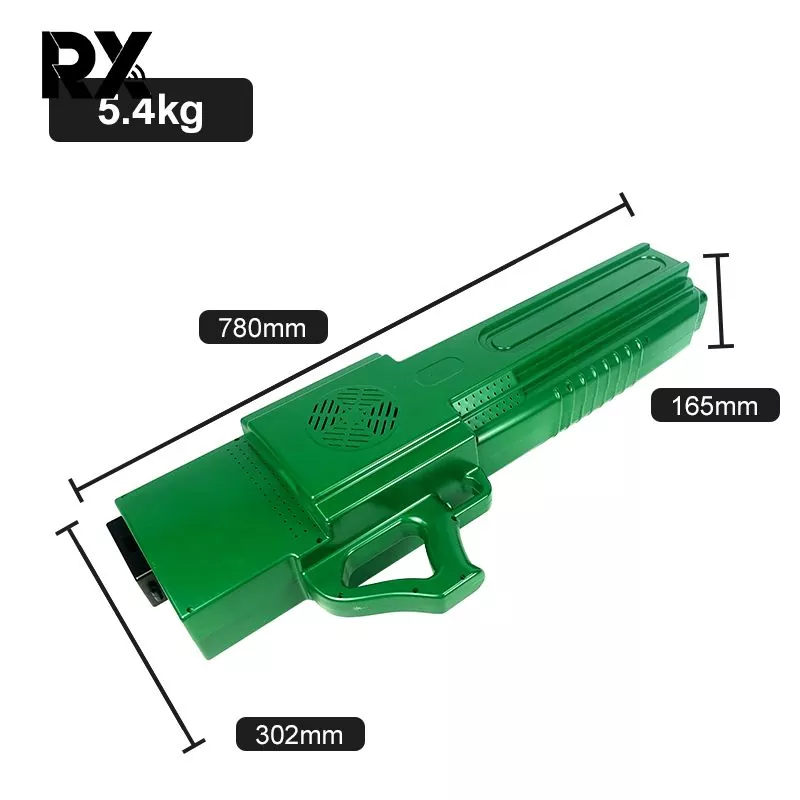

Size	800320150mm
Weight	About5.48kgs
Effective Range	1500-2000 meter,depends on real environment

Frequency & Output Power	410-485 MHz ( 433 MHz) 10W
	840-920 MHz ( 900MHz) 10W
	1100-1280 MHz ( 1.2 GHz) 10W
	1559-1620 MHz (1.5 GHz) 30W
	2400-2500 MHz (2.4 GHz) 10W
	2400-2500 MHz (2.4 GHz) 30W
	5150-5350 MHz (2.4 GHz) 30W
	5725-5850 MHz ( 5.8 GHz) 30W
	Total 160W

Inside Antenna Gain	433Mhz /5dBi
	2400MHz /14dBi
	2400MHz /14dBi
	GPSL1-L5（1.2G/11dBi，11.5G/12dBi）
	5800MHz /16dBi
	5200MHz /16dBi
	900MHz. /9dBi

Output Power	Total 160 Watt
Battery Use Time	40-50 minute
Working temperature	-20ºC to +55ºC
Power Supply	24V 15A inside lithium-ion battery
Power Supply	(It can be designed to connect the external battery)
Relative Humidity	35~85%

How to Use

1. Please check the LCD screen to ensure the jammer is fully charged

2. Choose the frequency band to jam, and press the button

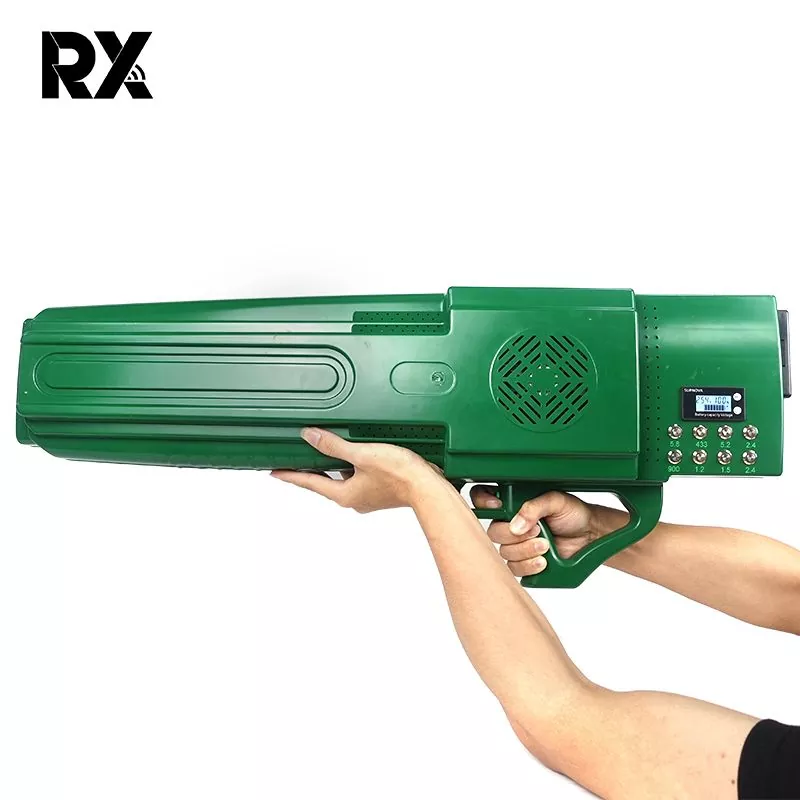

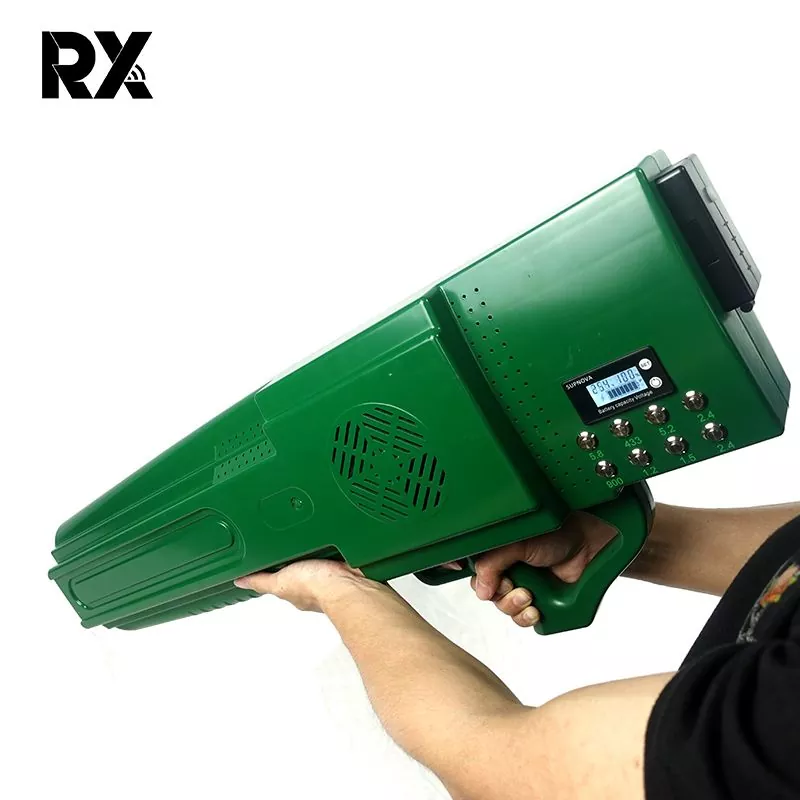

3. Target the drone gun at the flying drone in sky

4. Drone will be forced to return home or land immediately

Pressing the choosen buttons as below sheet to act its jamming function

Usually below channels pressed, the jammer can counter

> 95% jammer in the market.

Channel:2.4 Ghz 2.4G1 2 buttons

Channel:5.8 GHz

Channel:1.5 GHz (GPSL1)

Product Feature

1. High output power over 160W to jam the drone in a long range up to 1500 meter in real environment in 3 second

2. Multiple 8 channel 433/900/2.4G/5.8G/GPSL1&Glonass L1/GPSL2&Glonass L2,2.4G1/5.2G

3. Single band controlled by the separate button

4. Light weight 6.8 kg and non slip holder design

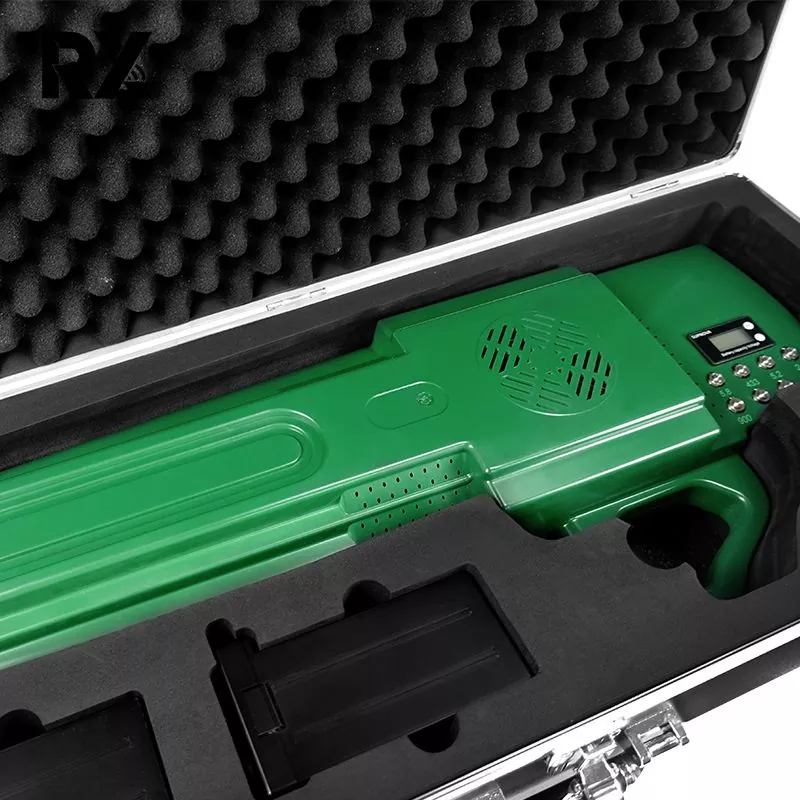

5. 2pcs Movable battery lasts over80-90min

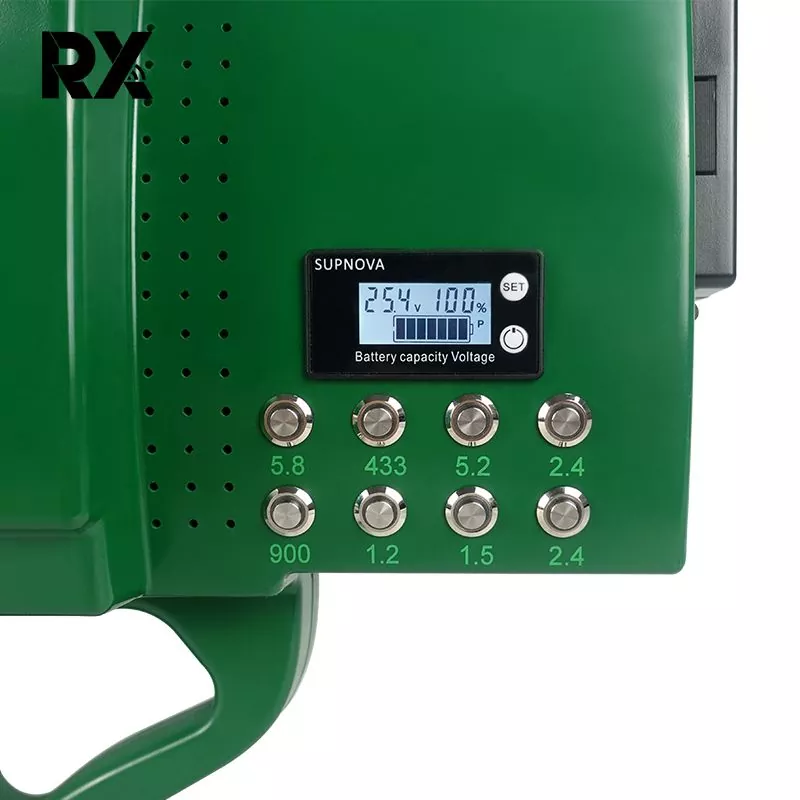

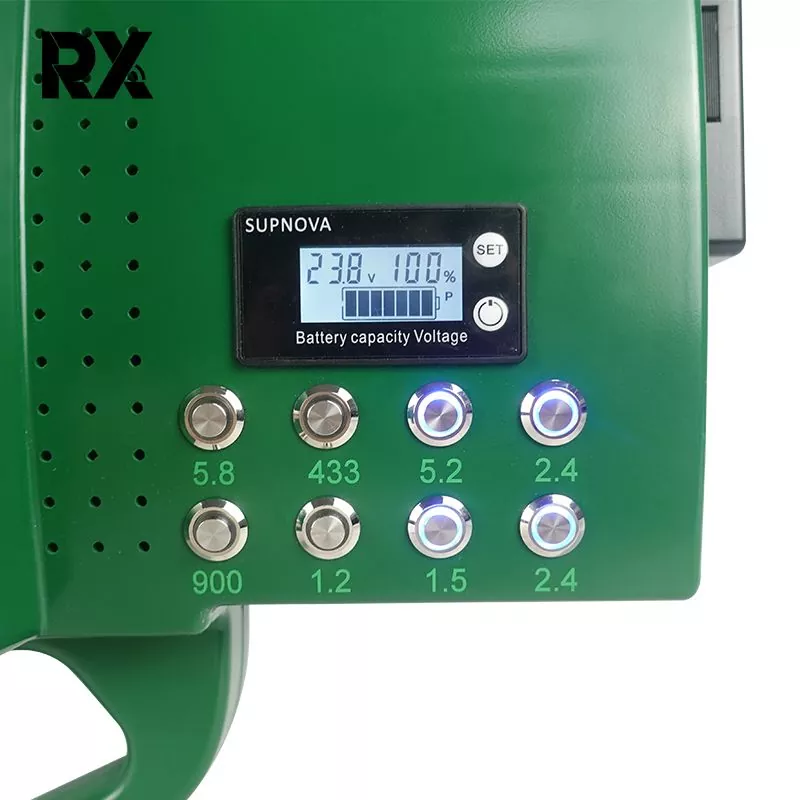

6. LCD screen to indicate the remain power capacity and voltage

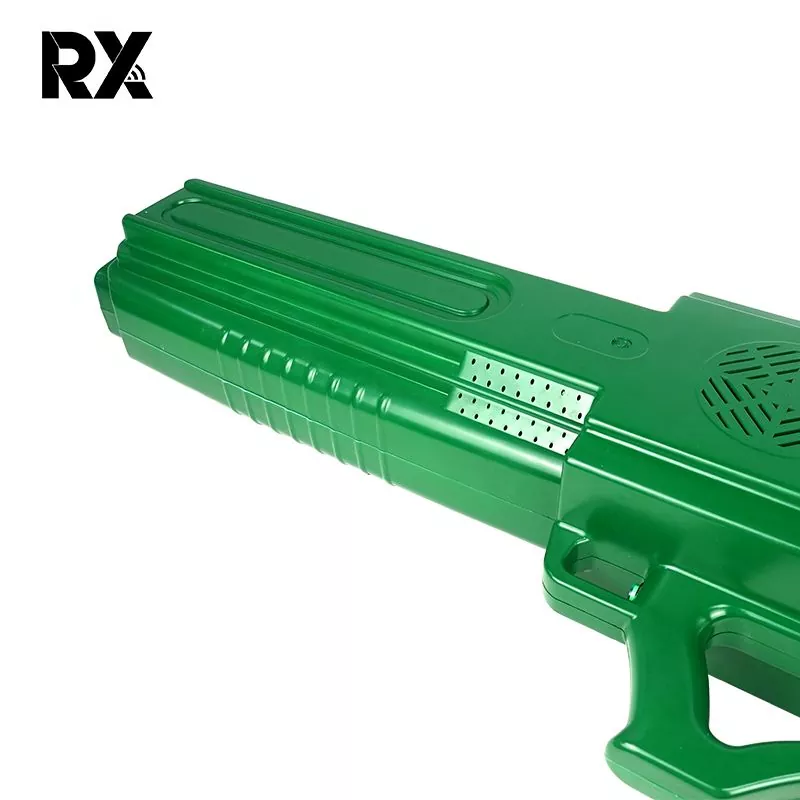

7. Ultra thick heat sink and unique cooling structure design,to ensure its stability

8. I55 waterproof, heat resistant, anti-shock, anti-broke
