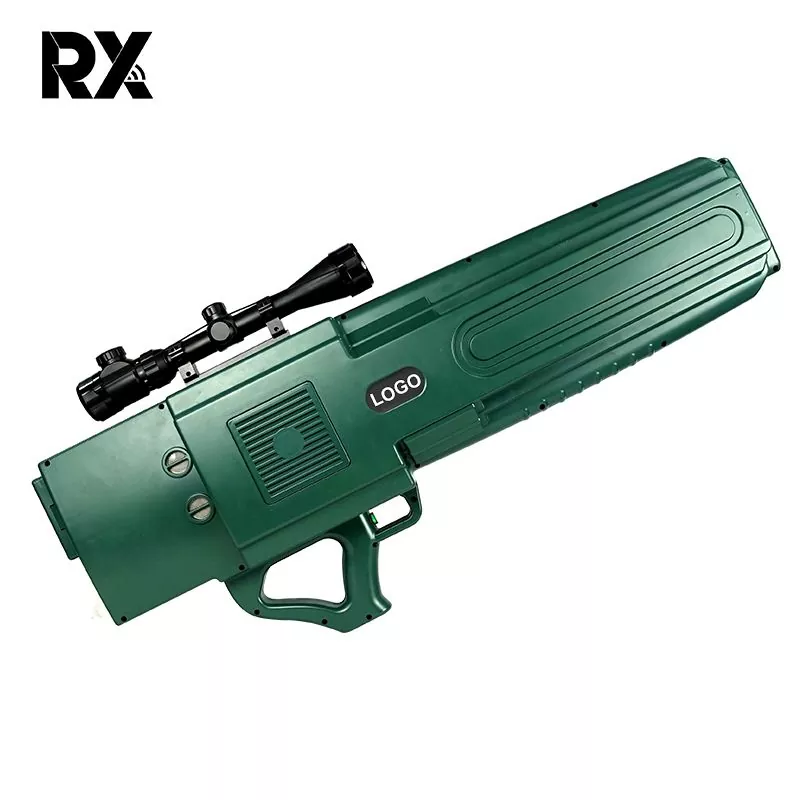

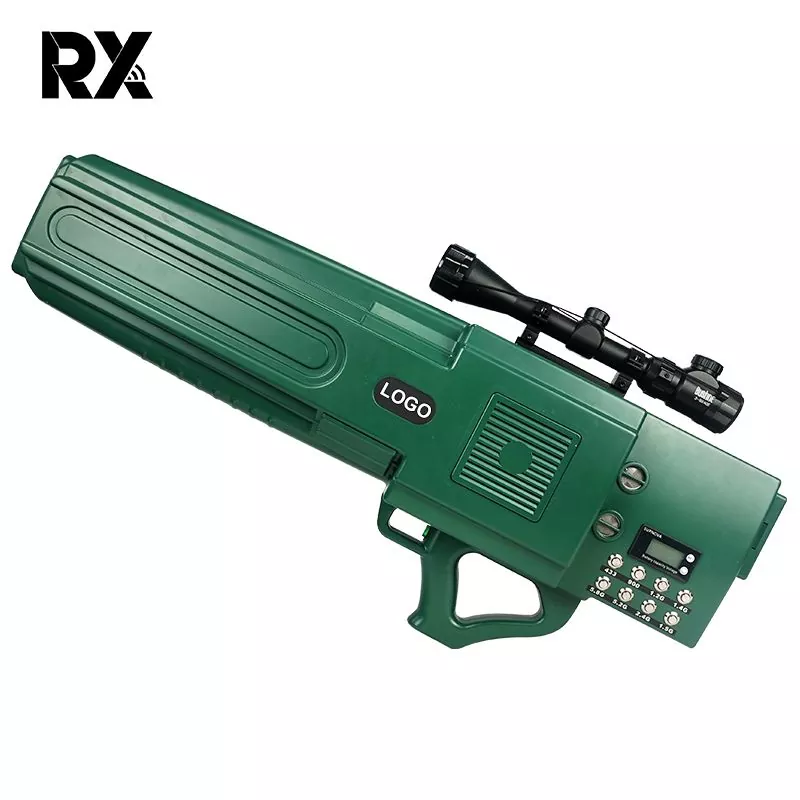

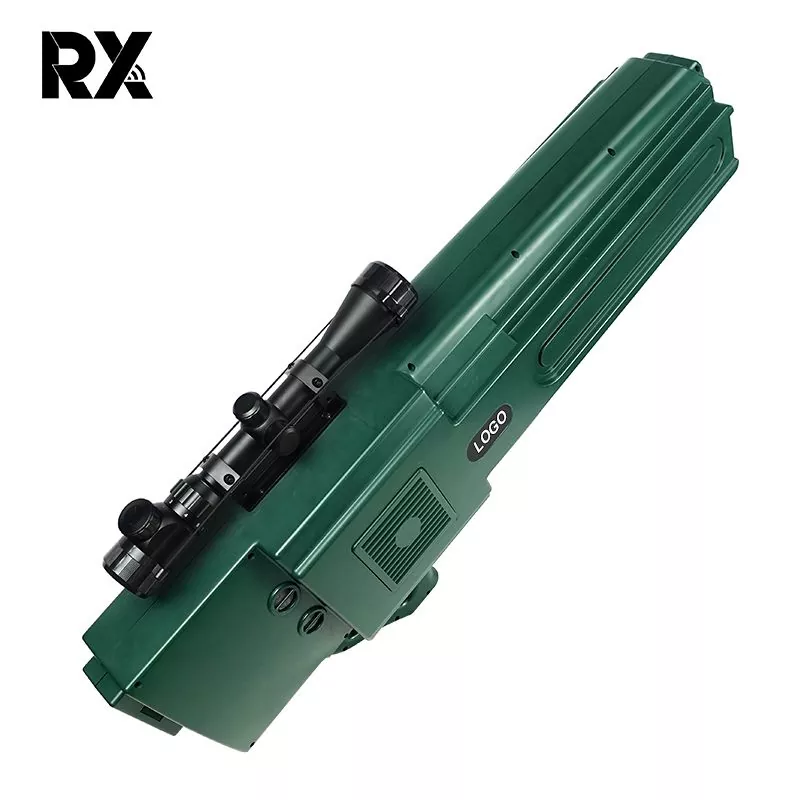

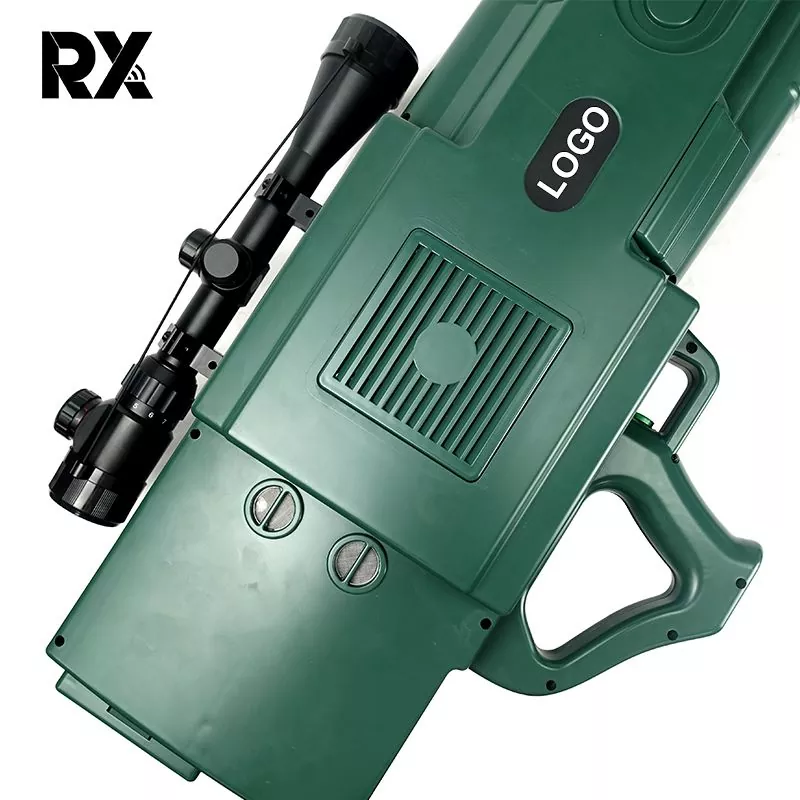

8 Channel Drone Gun Jammer

8 Channel Drone Gun Jammer is a handheld RF drone jammer (rifle type) based on the RX company jamming technology. 8 Channel Drone Gun Jammer can block all communications of a drone, including GPS (GNSS). It transmits directional RF signals to interfere with the drone's GPS and WIFI communication signals. By blocking these signals, the operation of the drone is neutralized.

Send Inquiry

Product Description

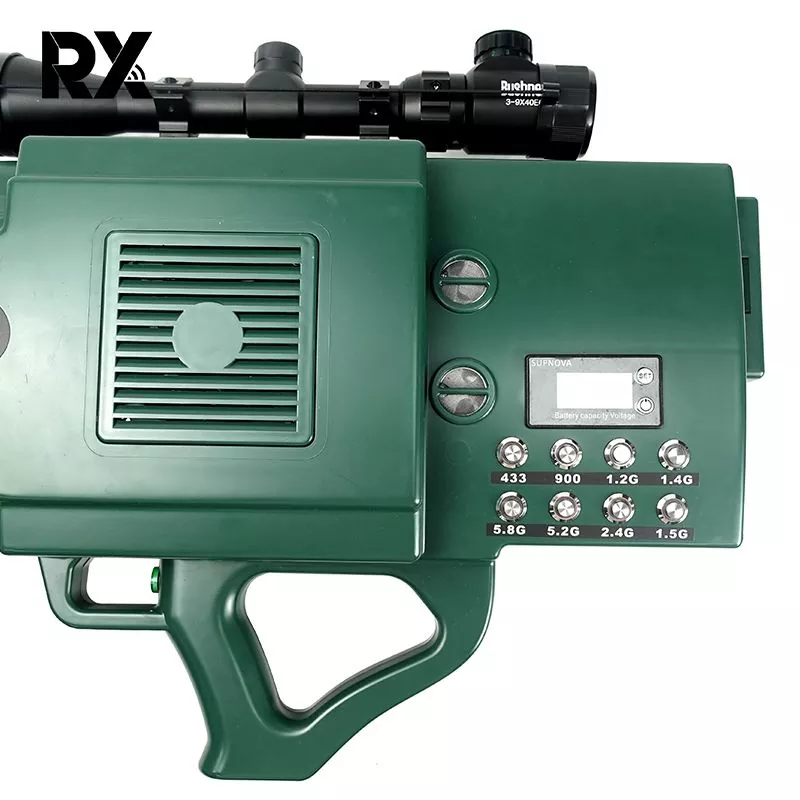

An 8-channel drone gun jammer for 433MHz, 900MHz, WiFi 2.4G, 5.8G, and other frequency bands. The product has a separate module, and each channel can be turned on or off by touch screen or key control. Maximum 8 channels are customizable. Dustproof, impact-resistant, corrosion-resistant, and breakage-resistant; suitable for harsh outdoor environments; light weight; and easy to carry.

8 Channel Drone Gun Jammer specification

Model No.	TX-T08
Size	780370150mm
Weight	About 6.45kg
Effective Range	1500-2000 meter,depends on real environment

Frequency & Output Power	410-485 MHz ( 433 MHz) 10W
	840-920 MHz ( 900MHz) 10W
	1100-1280 MHz ( 1.2 GHz) 10W
	1559-1620 MHz (1.5 GHz) 30W
	2400-2500 MHz (2.4 GHz) 60W
	5150-5350 MHz (2.4 GHz) 30W
	5725-5850 MHz ( 5.8 GHz) 50W
	Total 210W

Inside Antenna Gain	433Mhz /5dBi
	2400MHz /14dBi
	2400MHz /14dBi
	GPSL1-L5（1.2G/11dBi，11.5G/12dBi）
	5800MHz /16dBi
	5200MHz /16dBi
	900MHz. /9dBi

Output Power	Total 160 Watt
Battery Use Time	40-50 minute
Working temperature	-20ºC to +55ºC
Power Supply	24V 15A inside lithium-ion battery
Power Supply	(It can be designed to connect the external battery)
Relative Humidity	35~85%
